Travel Lift

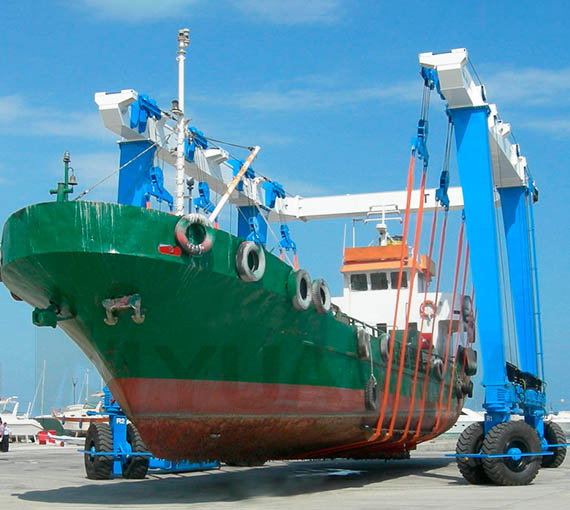

200 Ton Marine Travel Lift for Sale
The 200 ton travel lift for sale is a sort of boat handling equipment widely found in harbors and dockside to handle small and large vessels with weight up to 200 ton. The mobile marine lift can lift, travel, and transport boats in order to fulfill the requirements of maintaining, repairing and launching of vessels.
Rubber Tyred 200 Ton Marine Boat Travel Lift For Sale
Lifting capacity: 200 220 230 Ton(tonne/metric ton/mt)
Models: RTG, MBH, MGK, MHF, BHT, BFM
Boat length: 6 8 10 12 15 16 18 20 25 30 40 50 60 m
Boat width: 5 6 7 8 9 10 12 15 18 20 24 30 meters
Travel speed: 10~40m/min(Empty load/Full load)
Power supply: Diesel generator / Electric / Lithium battery
Control method: Wireless remote control, driver cab control
200 Ton boat lift supplier type: China manufacturer
200 Ton marine travel lift price: $260,000~$980,000
200 Ton Marine Travel Lift for Sale
Design of 200 Ton Boat Travel Lift for Sale
200 ton marine travel lift for sale is a sort of medium boat hoist equipment(boat lift equipment) designed to lift, haul and transport fishing vessels, speed boats, large yachts, tugboats, ships and so on. It is ideal for the needs of shipyards, shipbuilding yard, large marinas, docks, yacht clubs, boat builders and water recreation centers. This 200t travel lift for sale is able to lift and move a large vessel weigh up to 200 tons.
The U shape design makes the boat hoist crane(boat yacht handling crane) can lift the boat efficiently. Multiple lifting points can work at the same time and lift the boat stably. The belt of the 200 ton yacht travel lift for sale is soft and durable, greatly protect the boat surface. The lifting mechanism uses load sensitive hydraulic system for precision and accurate positioning. The flexible steering rubber wheels can move and accomplish any degree rotating and gentle slope climbing.
For the 200 ton boat travel lift mobile gantry crane traveling, it can move in diagonal direction, it also can steering in 90 degree, and Ackermann steering. So it is called all wheel steering travel lift or four-wheel drive travel lift. The 8-wheel 16-wheel design offers low pressure and low corner load, reducing the need for ground preparation and infrastructure cost. Contact us now for 200 ton marine travel lift price.
Features of 200 Ton Marine Travel Lift for Boat
200t marine travel lift for sale is designed to lift a variety of vessels including: sailboats, powerboats, police and Coast Guard patrol vessels, catamarans, commercial fishing boats, and more. Span(Width): 10-36m
Lift height: 6~12m
Wheel quantity: 8 16
Mobile Marine Boat Hoist Travel Lift Weight Capacity: 200 metric tons | 200,000 kg
Heavy loading weight/SWL/WLL: 200t 220t 230t 240t
Hoisting capacity under spreader: 200 ton, 220 ton, 230 ton, 240ton.
All hooks works separately &simultaneously
Motor driven: four wheel drive, 4 wheel drive, 8(eight) wheel drive
Hydraulic system, powered by diesel engine
All wheels steering travel lift for yacht, or motorized wheels boat lift.
Competitive 200 ton boat hoist travel lift price
Boat length/width: 40’ 50’ 60’ 70’ 80' 90’ 100’ 120’ 150’ 160’ 180’ 200’
Boat size(dimension): 40 50 60 70 80 90 100 120 150 160 180 200 ft feet
200 ton mobile boat travel lift for sale are capable of hauling vessels approximately 50 ft. (15 m) - 200 ft. (60 m) in length. The ideal lifting solution for yacht clubs, saltwater and freshwater marinas, sailboat clubs, and more.
200 Ton Marine Travel Lift for Sale
200 Ton Marine Boat Travel Lift Straddle Carrier for Sale
Rubber Tyred 200 Ton Boat Hoist Travel Lift Gantry Crane for Sale
200T Mobile Marine Boat Hoist Travel Lift for Sale
200 Ton Boat Travel Lift Price
200 Ton Marine Travel Lift for Boat Yacht Ship
200 Ton Mobile Boat Travel Lift Gantry Crane for Shipyard
200T Travel Lift Boat Hoist Equipment with Different Types
200T marine travel lift for sale, as known as mobile boat lift or boat hoist, is ideal for handling a large-sized boat or vessel ship. There are many different types of travel lifts for you to choose.
According to control mode, we have remotely controlled travel lift boat and cabin controlled travel lift yacht ship.
Regarding to rated loading capacity, there are 200t boat travel lift for sale, 200t marine travelift for sale, and 200 ton boat launcher travel lift gantry crane.
Depending on the transmission system, we mainly supply rubber tire hydraulic boat hoist travel lift and electric mobile boat travel lift. Both of the motor driven travel lifts are durable and efficient boat hoist equipment, which are found in most marinas and shipyards.
Sorted by working occasions, the 200 ton marine travelift for sale is available in shipyard travel lift, port used 200 ton boat lift for sale, yacht travel lift, dock travel lift, amphibious travel lift and so on for your options.
Technical Parameter of China Outdoor Used 200t Boat Marine Travel Lift Boat Hoist Equipment
Technical parameters for 200 ton marine boat hoist travel lift gantry crane for sale
200 Ton Boat Travel Lift Mobile Gantry Crane for Sale | |
The boat size(L*W*H): | 40000*10000*8400 (mm) |
Capacity | 200 ton 220 ton 230 ton 240 ton |
Lifting Height / Clear Hook Height | 16 m / 45'-10" |
Lifting speed (with full load) | 0~1 m/min |
Lifting speed (without load) | 0~3 m/min |
Travelling speed(with load) | 0~30 m/min |
Max gradient (with load) | 4% |
Wheel base | 30’ 16’-6” |
Diesel engine | 150 kw |
Hoist system/Hoist block | 8/16 |
Sling length/Quantity/Sling Spacing | 18/10 m/ton 22’ |
Tyre number | 8 / 16 |
Tyre size | 21.00-35 |
Ground pressure | 8 bar |
Steering angle | 35 degrees |
Turning radius (Pivot steering) | 8m |
Turning radius (Ackermann steering) | 15m |
Safety devices | Weight overload protection device |
Voltage lower protection function | |
Emergency stop system | |
Crane travelling limit switch | |
Ground protection | |
Audible and visual alarm | |
*200T marine hoist boat travel lift specifications may be subject to change without notice
Applications of Self Propelled 200 Ton Mobile Rubber Tyred Boat Lifting Gantry Crane for Sale
The 200 ton mobile boat lift and marine crane can be used for lifting, transporting, dry docking and launching of small to large boats with 200 ton weight. It is designed and built as the most efficient and cost effective boat handling operations.
The 200 ton boatlift for sale is able to launch a vessel into the water.
This 200 ton travel lift boat equipment can lift and haul a boat out of the water for maintenance or repair purpose.
Transportation: 200 ton boat hoists travel lift for sale can move the vessels in the yard and locate them in position.
200 ton boat hoist boat travel lift are capable of lifting large vessels, dense tugs, fishing boats, patrol boats, sailboats, powerboats, police and coast guard boats, RIBs and RHIBs, catamarans and wood boats, widely used in offshore, seas, quay, marinas, boatyards, small yacht clubs, sailing clubs, shipbuilding, lake and river facilities
200 ton marine travellift for sale is ideal for commercial marine yards handling diverse vessels – tugs, fishing, crew boats, ferries, superyachts barges and mega yachts up to approx. 200 ft. (61 m) long in your shipyard.
Rubber Tyred 200 Ton Marine Boat Lift Gantry Crane Parts & Components
200 ton boat travelift for sale can be used in the many different occasions like the onshore, ports, and other marine space. In addition, it adopts many advanced design and excellent structure in our factory. The 200 ton boat travellift for sale adopts the first-class brand accessories in China and abroad to strictly regulate the production and installation process, so that only the qualified yacht handler machine be offered to our clients.
Incorporated by a number of complicated mechanisms and electrical units, the 200ton marine boat travel lift crane offers great power for boat hauling. It is mainly composed of the metal structure, rubber wheel group running mechanism, boat hoisting mechanism, hydraulic system, Hydraulic steering tire(wheels) system and control system.
Driver cabin
Motor engine room
8 Wheel drive
Control panel
PLC-control
Electronic system
(8/16pcs) lifting points (number of straps)
DGPS (assisted auto steering)
Communication system
Wind speed indicator
Anti-collision system
Anti-corrosion coating
Radio remote control
The remote control system of 200t marine travellift for sale features easy operation and excellent safety since it allows the operator to stand away from the crane and the load. If you are looking for the customized boat lift, we can offer the right boat lift or yacht travel lift for your demands according to your budget and basic structure design. The value of 200t boat travelift for sale can let the boat get a longer service life by regular maintenance.
200T Marine Travel Lift Price
The cost of 200t boat travellift for sale is one of the major factor that clients must consider during their boat lift selection process, it is largely determined by the required specifications and configurations of the 200 ton boat travel lift, such as the lifting capacity, size, span and lifting speed. Boat hoist lift is regarded as a cost-effective and powerful solution for vessel handling equipment on the shore side as it provides the utmost efficiency, safety and economical benefits for the operation of docks and harbors. The 200 ton mobile boat hoist travel lift are of reasonable costs, good quality and long service life. Installation and commissioning of rubber tyred mobile boat hoist travel lift gantry crane for lifting yacht vessel is also available. They are ideal choice as your budget. To get a quotation for the 200 ton boat travel lift price, contact us now please!
200 Ton Marine Boat Travel Lift Manufacturer in China
As one of the premier suppliers of boat and yacht lifting and handling systems in the world, China supplier-YUANDA yacht travel lift is pleased to supply the most durable travel lift with factory price. Each of our 200 ton travel lift crane equipment is built with high quality components that are sourced from reliable suppliers. We can also offer a complete after-sales service with well-experienced engineers.
A 200 ton marina travel lift is needed when you want to lift or haul a boat out of the water, which can ensure efficiency, safety, precision and durability in boat hoist operations. The 200 ton mobile marine travel lift for sale can also be tailored designed and constructed to suit your special requirement for yacht lifting machines.
We export 200 ton travel lift ship all over the world. All our 200 ton travel lift are CE certified. Feel free to get in touch with us now for 200t boat travel lift price!
