Gantry Crane

Benefits and Features of Gantry Crane

• Model number: U type, MG type, BMG, L type, MH type, EMH, MHE, DG, ME, MGX, MGH, MDG, DMG, TXK, Travol, Single leg gantry crane
• Other name: Porta gantry, portal crane
• Rated load capacity / SWL / WLL: 7.5ton 8ton 10ton 15ton 16ton 20ton 25ton 30ton 32ton 35ton 40ton 50ton 60ton 70ton 75ton 80ton 100ton 150ton 200ton 250ton 300ton 320ton 330ton 350ton 400 500 Ton/TN/Tonne/Metric Ton. Gantry crane design calculation can be provided at request.
• Span(Width): 8m 10m 12m 14m 15m 16m 18m 20m 22m 24m 25m 26m 28m 30m 32m 35m 36m 38m 40m 42m span gantry crane
• Lift height: 5~13meters
• Heavy load weight: 5t 10t 15t 16t 20t 25t 30t 32t 35t 40t 50t 60t 70t 80t 100t 120t 150t 200t 250t 300t 350t 400t 500t 600t gantry crane
• Lifting mechanism of gantry crane: Manual hoist, chain block, electric hoist, low headroom hoist, electric wire rope hoist, electric winch or electric lifting frame.
• Lifting speed: Dual speed or variable speed (custom)
• Power supply: AC-3Phase-220/380/400/415/440V-50/60Hz
• Work duty: A3-A5 / Light duty / Heavy duty
• Moveable gantry crane or travelling gantry crane can built as your specific needs
• A frame welded structure, detachable.
• Wheels: Big wheels, solid tires, pneumatic tire, or motor driven gantry crane
• Wheel number: 3 wheels, 4 wheels, 8 wheels
• Lifting capacity: 250kg 300kg 500kg 1000kg 2000kg 2500kg 3000kg 3500kg 4000kg 5000kg 2000lbs 3000lbs 4000pounds 8000pounds
• Container spreader, chains, hooks, magnets, lifting beams, multi-lifting point attachments, clamps and other special lifting devices can be equipped on the gantry crane to handle the slabs, long concrete beams and bridge girders, steel coil, granite and marble blocks, stones, plates, metal structure, steel sheet, rod bars, concrete pipes, compressed pressure tanks(LNG LPG CNG), ISO tanks etc.
• Crane color: Powder-coated finish, painted Safety Yellow RAL1028. Special epoxy primer available for outdoor use.
• Food grade or clean room gantry crane can be custom made as per special request.
• Control method: Ground control, wire button control, pendant control, joystick control, wireless radio remote control gantry crane.
• Standards: FEM, ASME, DIN 15018 standards, all steel frame structure. Supplied with EC Declaration of Conformity.
• Special foundations may be required for steel rail tracks; Crane drawing will have foundation requirements.
• Motion orientation: 3 axis gantry crane
• Track type: P18 P24 P30 P38 P43 P50 QU70 QU80 QU100 QU120 rail size
• Applicable industries: Workshop gantry crane for warehouses, transshipment logistic yards, depots, building material shops, machinery repair shops, manufacturing plant, food & beverage factory, civil engineering construction works, energy & mining, oil & gas, renewable energy, die casting, plastic industry, indoor and outdoor.
• Variable Frequency Drives (VFD): Stepless speed control, enables smooth acceleration and deceleration, reducing wear and tear on components while optimizing energy consumption. SCHNEIDER, SIEMENS, CHINT, YASKAWA or other brands.
• Heavy duty motor, 60%ED rating. IP55/ H Insulation. ABB, SEW motor or other brands both available for the motorized gantry crane.
• Remote Control and Automation System: Allows operators to control the crane remotely, enhancing safety and enabling more efficient operation
• Gantry crane price: $2,000~$60,000 depending on the size and lifting weight of the crane
• Gantry crane manufacturer: Gantry crane China supplier
• Electric hoist gantry crane harga: Contact us now for a quote
• Intermodal Container: 20’ 30’ 40’ 45’ shipping containers can be handled by the container lifting gantry crane

Application of crane: The 20t gantry cranes are designed to handle and lift various of loads, for example, the 20 ton gantry crane for marble, granite, precast concrete elements, precast beams, bridges, battery energy storage container system(BESS container), tube, lumber, concrete mold, cement, rebar cage, prefab container house, jumbo manufacturing parts, glass, wood & timber, cast iron, printing machine, offset press, concrete slab, cylindrical parts, pipelines, substation transformer, beam fabricating and general manufacturing, etc.

Different Types of Industrial Gantry Cranes

An electric hoist lifting gantry crane is a machine that can move heavy objects. It is built on top of a gantry, a structure used to straddle an object or workspace. It gets support from freestanding A frame legs which are moved by wheels or a rail rack system on ground. Let’s take a look at various types of gantry cranes.

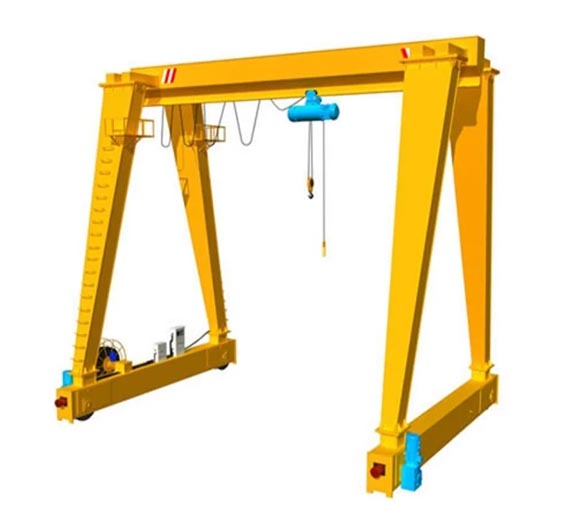

Single Girder Gantry Crane

Single girder gantry cranes use a single horizontal beam and are typically designed for light load handling, namely 2 ton gantry crane, 3 ton gantry crane, 5 ton gantry crane and 10 ton gantry crane. European type single beam gantry cranes are often used in mechanical workshops and warehouses for material handling, maintenance, and assembly work.

Double Girder Gantry Crane

Double girder gantry cranes feature two parallel beams, providing greater stability and lifting capacity than single-girder models. These cranes are ideal for heavy-duty applications like shipbuilding, steel manufacturing, and large construction projects. Loading capacity can be 16/3.2 ton, 20/5 ton, 30/10 ton, 32/5 ton, 50/10 ton, 75/20 ton, 100/20ton, 40/10 ton gantry crane up to 350 ton gantry crane.

Portable Gantry Crane

Also called trackless gantry crane, the lightweight portable gantry crane is a small mobile gantry crane running on castor wheels. The simple design makes it easy to assemble and dismantle anywhere indoors or outdoors. Telescoping gantry crane or height adjustable gantry crane with wheels can be built to order. It also can be made as folding gantry crane for easy transportation. Our 10 Ton Mobile Gantry Crane provides a cost-effective lifting solution that is reliable and versatile. This light duty gantry crane series include 500kg gantry crane, 1000kg gantry crane, 2000lbs gantry crane, 4000 pounds gantry crane, etc.

Rubber Tire Gantry Crane(RTG Gantry Crane)

Rubber tyred gantry cranes (RTG cranes) are gantry crane on rubber wheels instead of fixed tracks or rail systems, allowing them to maneuver across rough terrain and off road. This mobility makes single beam rubber-tired gantry crane a popular choice in container yards, construction sites, shipyards, manufacturing facilities, and steel plant where mobile lifting solutions are necessary. The hot sale series are 30 ton gantry crane, 50 ton gantry crane 70 ton rubber tire self propelled gantry crane and mobile straddle carrier gantry crane 40 ton for the rubber wheel version.

Rail Mounted Gantry Crane

Rail Mounted Gantry Crane, shorten as RMG crane, is a type of container handling gantry cranes for lifting the international ISO standard containers. Rail mounted gantry cranes operate on fixed tracks or rails, which makes them highly efficient for repetitive and linear movements. RMG cranes are commonly used in port facilities, docks and railway yards. container yard, railway container terminal. 40 ton gantry crane and 45 ton gantry crane are the most common models for RMG type.

Heavy duty gantry crane

Heavy duty gantry cranes are generally used for moving heavy loads, often outdoors. For example, 200 ton gantry crane, 250 ton gantry crane and 300 ton gantry crane belongs to the heavy load gantry crane series. YUANDA has designed and built many large gantry cranes with heavy loading weight, large span & height, multiple hoists and enclosed cabs.

In addition to these lists, the mobile gantry crane for sale is available in many other types for your choice. At first, gantry cranes are normally divided into full gantry crane, semi gantry crane, U type leg gantry crane, L type leg gantry crane, single track gantry crane, gantry crane with cantilever or named as cantilever gantry crane based on different steel structure styles and shapes. According to power source, it can be classified into hydraulic gantry crane, electric motor gantry crane, diesel engine gantry crane, manual gantry crane operated by hand push and lithium battery operated gantry crane. According to the crane size, there are 1ton small light weight gantry crane, mini gantry crane and goliath gantry crane 400 ton up to 500 ton. According to the control system, it ban be divided into remote control gantry crane and cabin control gantry crane. Regarding to the cleanroom gantry crane series, it can be designed as stainless steel gantry crane, aluminum gantry crane or hot dip galvanized gantry crane, which are corrosion-resistant and moisture-proof. In some severe working environments such as chemical plants, coal mine and factories where exist explosive gas or flammable substance, the explosion proof gantry crane is designed for safe and effective lifting operation in such hazardous environments.

According to different applications, the lifting gantry machine can be divided into shipyard gantry crane, power station gantry crane, container lifting gantry crane and so on, which are designed to meet the specific needs of different industries. Equipped with different travelling mechanism, there are track mounted gantry crane, fixed gantry crane(stationary type) mounted on ground floor or freestanding gantry crane system, and all terrain gantry crane with rubber tires. Sorted by working occasions, the gantry crane is available in quay gantry crane, nuclear power plant gantry crane, mining gantry crane, harbor gantry crane, railway gantry crane, dock gantry crane and so on for your choice. Each type is specifically designed for high-level efficiency and excellent safety of crane operations.

One of the great benefits of A Frame Gantry Crane is its versatility. They come in a large range of sizes and can be operated indoors and outdoors. The versatility of heavy load gantry crane has led to their widespread application in a variety of industrial operations and jobsites including harbour, tunnel, casting yard, prefabrication plant, timber yard, logistics hub, subway, nuclear power station, sea port terminal, storage area, garage, cleanroom and more. Due to their simple design, maintenance is minimal, saving the owners time and money. European standard gantry cranes are also energy efficient, helping users achieve more sustainable business operations. Whether you are a small business owner simply in need of a robust crane around your workshop, or a major shipyard, there is a gantry crane suitable for you. To get guidance on what kind of gantry crane best suits your needs, please contact one of our experts now.

Heavy Duty Gantry Crane Accessories, Components and Gantry Crane Parts

As we explore more about industrial gantry cranes, it’s important to understand their components, the gantry crane structure that determine the crane’s functionality and safety. Gantry cranes consist of several essential components that work together to facilitate the lifting and transportation of heavy loads within industrial and commercial settings. Understanding these main parts is crucial for ensuring the safe and efficient operation of gantry cranes.

Single and Double Girder

The main difference between the box type girders is the crane’s load capacity and duration of work. Single girders are monorails typically used for light to moderate loads and shorter periods of work, while double girder gantry cranes are best suited for medium to heavy loads and higher levels of work, e.g. 50 ton gantry crane, 60 ton gantry crane and 80ton gantry crane.

Support Columns

Either box type or truss type gantry crane, their supporting legs are the vertical structure steels that support the girders and the entire gantry crane system. With wind resistance feature, they lift and transport heavy loads, providing stability for the crane to operate safely. Four Legged Gantry Crane is another name for it.

Horizontal Beam

The main girder, often called the bridge, serves as the primary horizontal beam that spans the width of the steel gantry crane, providing structural support for the lifting mechanism and the load. In some configurations, a cantilever may extend from one end of the main beam, offering additional reach for specific lifting requirements.

Electric Hoist and Trolley

The gantry crane electric hoist lifts and lowers the load, while the trolley moves the hoist along the horizontal beam. These components work together for precise positioning of the load. The hoist options can be our own brand YUANDA, China top brand SANY, ZPMC or international top brand such as: Demag, Abus, Kito, SWF, KONE, YALE, REID, PLANET, Gorbel, etc. Another distinguishing factor for hoists is their power source, which can be manual, electrical, battery powered or pneumatic.

Driver’s Cabin and Lifting Wire Rope

The driver’s cabin houses the controls and interface used by operators to manage the movement and positioning of loads. It provides a vantage point for overseeing lifting operations while ensuring operator safety. The lifting wire rope hoist or electric winch is an integral part of the gantry crane’s hoisting mechanism, responsible for bearing and raising heavy loads with precision.

Hook and Gantry Crane Attachment

The gantry crane hook is attached to the lifting wire rope and serves as the primary point of contact with loads being lifted or transported. This component plays a pivotal role in securely holding items during lifting operations. Additionally, there are below-the-hook attachments for the gantry crane. Below the hook lifting devices or hangers include coil hooks, coil grabs, grapples, chain slings, C hooks, coil lifters, mechanical lifters, spreader bars, magnet lifter, vertical lifting equipment, lifting device for cranes, crane attachments, spreader beams, hook blocks, ladle hooks, load weighing crane scale, sheet lifters, plate lifters, bundle lifters, crane lifting attachments, pallet lifters, lifting tongs, grabs and claw buckets. These below the hook equipment that can be automatic, hydraulic, pneumatic or motorized lifting equipment are used to attach loads to a hoist.

Wheels

Gantry crane wheels provide mobility to the crane, allowing it to run across the track or rail system in a straight line. 20 ton mobile gantry cranes are mounted on rubber tires or caster wheels for better maneuverability. Hydraulic wheels can also be an option.

Runway

The runway is a set of tracks on which the crane travels. These gantry crane rail tracks can be mounted on the ground or elevated on a structure, depending on the operational requirements. The runway supports the gantry crane end carriages and travelling systems and ensures smooth and precise movement of the crane along the designated path.

Electrical System

The electrical system of a full gantry crane consists of various components such as drive units, motors, reducers, PLC, frequency inverters, relay, cables, and control panels. The gantry crane motors provide power to the crane’s movement, and the cables transmit the power from the electrical source to the crane’s motors. The control panel or gantry crane wireless remote control allows the operator to control the crane with ease.

Control System

The smart control system is the interface through which the operator controls the crane’s movements. It can be a simple pendant control or radio remote control and cabin control, offering various levels of functionality and safety features. The control systems often include advanced features such as anti-sway technology, load monitoring, and automated positioning. The advanced automation system and material handling solutions often integrate automated gantry crane and robotics, facilitating seamless operations and improving loading and unloading work efficiency.

Gantry Crane Power Supply

The power supply system of the gantry crane is powered by cable reels, conductor bars or festoon systems. In a cable reel system, a cable winds and unwinds as the crane moves, maintaining a constant connection to the power source. Alternatively, festoon systems use trolleys that support and guide the power cables along a track, ensuring smooth and uninterrupted power delivery. These methods provide reliable and efficient power to the crane’s motors, controls, and lifting mechanisms, enabling precise and robust operation in various industrial environments.

Safety Features

Portal gantry cranes are equipped with advanced safety devices designed to mitigate risks associated with lifting heavy loads and operating in challenging environmental conditions. These safety devices include anti-collision devices, gantry crane remote control systems, limit switches and overload protection systems. The integration of these safety features aligns with industry standards aimed at enhancing workplace safety across various sectors utilizing gantry cranes. By incorporating advanced technologies such as anemometers and lightning rods, operators can effectively mitigate environmental risks while ensuring uninterrupted material handling operations.

Other gantry crane kits and accessories include hydraulic system, cable drum, busbar, shaft, guide rollers, auxiliary hoist, pulleys, lifting belts, scale, stainless steel enclosure, sun shade, rain proof cover for an outdoor gantry crane, gearbox, electromagnetic brake, rubber tyre, hydraulic cylinders, air conditioner and other spare parts. Our modern gantry cranes are manufactured with latest production technology and reliable components. Understanding the main parts of a gantry crane is crucial for enhancing operational efficiency and ensuring safety within industrial and commercial settings. By comprehending the functions and significance of each component, operators and maintenance personnel can optimize the performance of gantry cranes while prioritizing workplace safety.

Application of Gantry Cranes

A porta gantry crane is a crane built atop a gantry, which is a structure used to straddle an object or workspace. They can range from enormous "full" gantry cranes, capable of lifting some of the heaviest loads in the world, to small shop gantry cranes, used for tasks such as lifting automobile engines out of vehicles. They are also called portal cranes, the "portal" being the empty space straddled by the gantry.

Gantry cranes come in various configurations and sizes to adapt to different applications and environments, making them indispensable for sectors like construction, manufacturing, logistics, and precast concrete segments production. With the right type of gantry crane for specific industry, it can significantly enhance the productivity, safety, and operational efficiency at the jobsite.

Workshop Gantry Crane

The mechanical workshop gantry crane is the most widely used, which can handle various materials and machinery, e.g. handling steel metal sheet for laser cutting machine, lifting mould for injection molding machine, dipping tank, electroplating machine and more. It is designed with a lifting capacity of 10 ton to 30 tons and a span of 4 to 35 meters. Ordinary gantry cranes with grabs work at a higher level. Cheap gantry crane mainly refers to warehouse gantry crane with hook, grab, electromagnetic, or electric hoist lift gantry crane, and also includes half gantry crane.

Gantry Crane for Hydropower Station

Hydropower station gantry crane mainly used for lifting, opening and closing gates, and also for installation operations. The lifting capacity is 80 tons-500 tons, the span is small, 8-16 meters; the lifting speed is low, 1-5 meters per minute. Although the working frequency of this kind of crane is not high, the work level should be guaranteed to be very high.

Shipbuilding Gantry Crane

Shipbuilding gantry crane is used to assemble the hull on the slipway, and there are always two lifting trolleys: one has two main hooks, which run on the track of the upper flange of the bridge; The other trolley of the ship building gantry crane, with a main hook and a secondary hook, runs on rails at the lower flange of the bridge for flipping and lifting large hull sections. The lifting weight is generally 100+100ton 150+100ton 150+150 ton, up to 1200 tons maximum; the span is 185 meters; the lifting speed is 2-15 m/min, and the fretting speed is 0.1-0.5 m/min.

Container Gantry Crane

Rubber tire container gantry crane is used for 20ft, 40ft, 45ft intermodal container handling. After the trailer truck transports the containers unloaded from the ship by the Ship to Shore Container Cranes, this RTG gantry crane stacks the container or directly pick and carry it away, which can speed up the turnover of the container yards. The sea port gantry crane can stack containers with a height of 3 to 4 layers and a width of 6 rows. Compared with the rubber tire container straddle carrier crane, the shipping container gantry crane has a larger span and height. In order to meet the transportation needs of the port terminal, this kind of crane has a higher working level. The lifting speed is 35-52 m/min; the span is determined according to the number of container rows that need to be spanned, generally the maximum is about 60 meters. The lifting capacity of the container gantry crane with rubber tires usually be 60 ton and 65 ton. Another model is ship-to-shore container gantry crane, the STS Gantry Cranes are large dockside gantry cranes found at container terminals for loading and unloading intermodal containers.

Construction Gantry Crane

Construction sites often require cranes with high lifting capacities and stability to handle large oversized materials such as steel beams, tanks, wind power towers, cable barrels, prefab concrete beams, concrete slabs, and prefabricated structures. The civil engineering gantry crane is ideal choice for construction projects, such as gantry crane for bridge construction, tunnel construction, industrial building, railroad, highway, and airport. It is also known as rubber tired self-propelled gantry crane. Loading capacity can be 300 ton, 350 ton, 400ton, 450ton up to 900 ton.

Gantry Crane for Warehouse and Manufacturing Plant

Workstation gantry cranes are of use in various industries, from small to big, including automobile, steel production, and airplane manufacturing. Automotive, steel production and aircraft manufacture are some of the most prevalent industries that employ gantry cranes. Depending on your needs, you can use 1 ton gantry crane, 5t gantry crane, 8 ton gantry crane or 15ton gantry crane.

Gantry Crane for Precast Concrete Production

In precast concrete production, gantry cranes play a key role in transporting heavy precast concrete elements from one part of the prefabrication yard to another facility. They are also referred to rubber tire mobile straddle carrier cranes, which are designed to lift prefabricated beams, concrete parts, prefabricated houses, hollow core, wall panels, pillars, prefab concrete blocks, precast bridge foundations and piers, etc. Lattice gantry crane is the other model of lifting equipment for precast concrete beam production. You can choose 400 ton gantry crane, 500 ton gantry crane, 600 ton gantry crane for this application.

Grab Bucket Gantry Crane for Bulk Material Handling

Gantry cranes with bucket or grab attachment have a wide range of applications in power plants, coal station, barge, railway transportation and warehouse to handle ore, limestone, bricks, coke, coal, sand, slag, loose clay, and other granular material. Grab bucket gantry crane can be used for bulk material handling in mining and mineral processing, as well as material supply, to increase productivity and ensure safety in harsh environments with potentially hazardous gas, steam, and air. It is also called grapple gantry crane.

Gantry Crane with Grab for Waste Handling & Scrap Handling

YUANA scrap handling gantry crane is a heavy-duty, high-speed crane that can handle scrap in the scarp yard or steel recycling yard, and load it into buckets or ladles for transport to the melt shop. These cranes are equipped with lifting magnets, a hydraulic grab or both together to move a load of scrap weighing up to 40 tons. The waste handling gantry crane can meet lifting requirements in a variety of situations thanks to manual, semi-automatic, and fully automatic operation control options.

Boat Lifting Gantry Crane

Boat lift gantry crane is a rubber wheeled gantry crane for boat hauling and launching operations in marinas and boatyards, tailored in dimension and loading capacities. This boat handling equipment is also named as 500 ton marine travel lift gantry crane, yacht lifting gantry crane or boat hoist gantry crane for vessels. It is the most versatile solution for load lifting tasks in marine environment.

In addition to the crane types listed above, there are also many other models: gantry crane for mining industry, metallurgical gantry crane for metal shop, bridge launching gantry crane for highway construction and quayside gantry crane for cargo handling. Sorted by the load to be handled, there are gantry crane stacker, granite & marble gantry crane, scrap gantry crane, hydraulic gantry lift, container handler gantry crane and so on. Another big size model is level luffing crane, which incorporate traveling, slewing, luffing and lifting mechanisms and perform bucket loading, container loading as well as hook loading in shipyards, wharfs, quay side and ports.

Gantry cranes are used where items or equipment need to be frequently elevated and moved between different locations. Our company offers a diverse range of gantry cranes that cater to various lifting capacities from 10 to 900 tons. This piece of lifting equipment is essential for many types of industrial applications, ranging from small workshops and warehouses to large rail and shipping yards. The gantry cranes are ideal to lift and handle steel structure, diecasting, hatch cover, precast bridge segment, scrap metal, steel tank, construction machinery, wind mill power generators, rotor blades, modular house building, etc.

Whatever your application, you can trust us to design and manufacture a custom gantry crane to suit your requirements. Contact our team today to find out more about our portal gantry crane series.

Technical Parameter of Gantry Crane for Sale

*Industrial gantry crane specifications may be subject to change without notice

How to Select the Right Type Of Gantry Crane for Your Application?

How to choose a gantry crane for your application? Choosing the right type of gantry crane will significantly reduce the gantry crane cost. There are several factors to consider when you want to buy a gantry crane.

• Types of gantry cranes: _______? Options: Single girder or double girder gantry crane, movable gantry crane, etc.
• Loading capacity of gantry crane: _______tons? Options: 0.25ton, 0.5 ton, 1 ton, 2 ton, 3ton, 15ton, 16ton, 20ton, 25 ton, 30ton, 35ton, up to 550ton gantry crane.
• Crane span & lifting height: _______meters?
• Crane travelling length/Runway length: _____meters?
• Control method of gantry crane: _______? Options: pendant control, remote control, cab control
• Voltage supply of overhead gantry crane: _____? E.g.: 380V 50/60HZ,3Phase or others, etc.
• Application/usage of crane: ______? E.g.: Steel mill, injection mold, cement, stone, concrete, granite, general manufacturing, etc.
• Which country are you located in? E.g.: The gantry crane will be employed in Thailand, Poland, Saudi Arabia, Russia, Belarus, Singapore?

What is a gantry crane price? How much does a gantry crane cost? These are the questions that customers are most concerned about. When purchasing a gantry crane, it’s essential to consider the gantry crane type, lifting capacity, rail span, height, materials, and features necessary for your specific project. These factors will greatly affect the gantry crane price. Our company can design and manufacture customized gantry cranes to meet your specific needs. We also sell used gantry cranes and secondhand supporting steelwork at a cheap price. A gantry crane on rental is also available. Whether you require a high loading capacity, specialized attachments, or other tailored features, our team of experts can create an OEM gantry crane solution that fits your operational requirements.

Gantry Crane Installation and Commissioning

Gantry crane installation and commissioning services is one of our important after sale services. With expertise and experiences in overhead gantry crane installation & erection, we can efficiently install the cranes on seclude, then gantry crane commissioning will be conducted to provide you with testing data reports of installation and operation. The installation process includes site assessment, foundation preparation, gantry crane assembly, load testing, and inspection. What's more, professional gantry crane operator training in terms of gantry crane operation and gantry crane maintenance are also provided. At the end of the installation process, we provide complete documentation, including inspection checklist, maintenance manual schedules, electrical circuit diagram, user manuals, and safety guidelines.

As a trusted gantry crane manufacturer, we understand that the successful installation of a gantry crane is critical for efficient and safe lifting operations, which ensure the optimal new gantry crane operation conditions and work efficiency to make the best value out of your investment. YUANDA has a professional after-sales service team to provide timely and comprehensive after-sales service to customers around the world. Our company also has branches and overseas offices in Malaysia, USA, the Philippines, Uzbekistan and more countries, which can provide faster and better services to local customers.

Gantry Crane Manufacturer in China

YUANDA has a wide selection of large and small gantry cranes for sale to improve material handling processes and production at your business. Known as a trusted gantry crane manufacturer and supplier located in Beijing, China, our company specialize in delivering custom crane solutions tailored to meet the diverse needs of our clients across various industries. We have over 20 branch offices inland such as Wuxi, Ningbo, Shanghai, Qingdao, Xinxiang, Tavol, Henan, Shandong, Taiwan, Hongkong and Guangzhou city. We ship and export to many countries including the United States, Canada, Germany, Indonesia, Bahrain, Mexico, Chile, Peru, UAE, Middle East, Saudi Arabia, Turkey, Australia, European, the United Kingdom, EU, and more. All our gantry cranes are CE certified.

Gantry crane design drawings and operation manual can also be provided by our technical team. Contact us online now to get the gantry crane price quote.

FAQS

WHAT IS A GANTRY CRANE?

A gantry crane is an overhead crane built on top of a gantry frame structure. Gantry cranes can lift extremely heavy objects and do not need to be attached to the structure of a building, so it reduces the need for columns and beams.

WHERE CAN GANTRY CRANES BE USED?

Usually, a gantry crane is used outdoors in the likes of scrap yards, railyards and manufacturing sites. Gantry cranes are very robust and can be used to lift extremely heavy objects in these areas. Gantry cranes can also be used to lift smaller objects in indoor environments, such as in manufacturing sites and warehouses.

WHAT IS AN OVERHEAD GANTRY CRANE?

An overhead gantry crane system is mainly used for indoor purposes, such as in a factory or warehouse to pick up and place down objects. It is essentially a crane placed onto a gantry to lift.

HOW MUCH WEIGHT CAN ONE OF YOUR GANTRY CRANES LIFT?

Each of our gantries varies in the weight that they can lift. For example, the welded steel mobile gantry crane can lift up to 5000kg, whereas the heavy weight gantry lift can lift up to 100ton. We have many options available for you to choose from.

DO YOU OFFER BESPOKE CRANE SOLUTIONS?

We offer bespoke gantry crane solutions at YUANDA. We design, manufacture and supply our customers with cranes that suit their needs. So, regardless of what your requirements are for a crane, our team is ready to help you decide which crane is right for you.
