Gantry Crane
Double Girder Gantry Crane
Double girder gantry crane is usually used at workshop, warehouse, outdoor or along rail for general material handling and lifting work.
Span(Width): 10-36m
Lift Height: 6~12m
Lifting Capacity: 5~500 ton 10 20 25 30 40 50 60 80 100 200 ton
Models: MG, MGH, BMG, MDU, MZ, RMG
Left/right cantilever: 0~6m or as require
Control method: Pendant wire control or wireless remote control, cab control
Working Duty: A5 A6
Rail track type: P43 P50 QU70 QU80 QU100
Ambient Temperature:-20~40℃
Supplier type: China Manufacturer
Double girder gantry crane price: $9000~$150,000

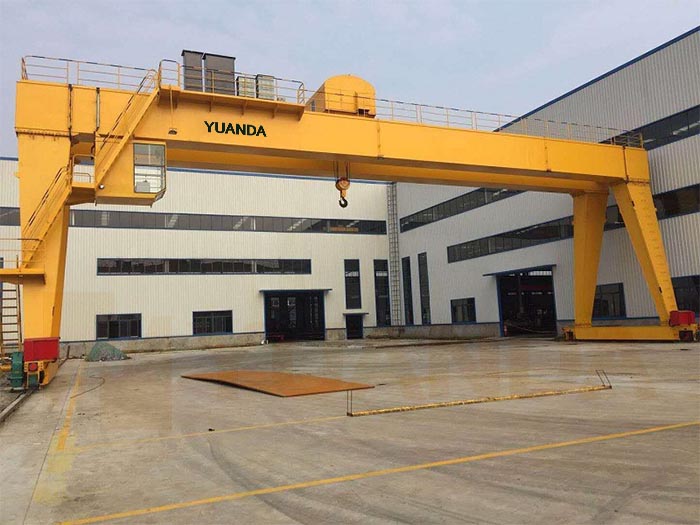

Double Girder Gantry Crane
What Is Double Girder Gantry Crane?
The double girder gantry crane is heavy duty gantry crane with two dual main beam/girder structure. Components of double girder gantry crane is mainly consisted of girder bridge, support legs, winch trolley, crane travelling mechanism, and electric system. Electric winch / wire rope hoist runs on the girders for lifting operation. The gantry crane travels on rail tracks to different positions for material handling. At the two ends of the main beam, there can be outstretched cantilevers for a larger working range. And can be equipped with a variety of spreaders (hook type, grabs, electromagnets, C-hooks, etc.) for operation.
Features of Double Girder Gantry Crane
1. General features
All the operation is conducted in the operating cabin room.
Grab bucket, container spreader, and other special lifting devices can be equipped to do special material handling work.
Customized design based on your specific applications is available.
Large load capacity, durable performance, high work efficiency, with the work class high up to A5( Medium) and A6( Heavy).
Three control modes for your selection: cab control, remote control, floor pendent control.
Easy installation and maintenance
Heavy loading weight: 5t 10t 15t 20t 25t 30t 32t 40t 50t 60t 80t 100t 200t
2. Main body structure
Gantry Crane Systems are designed in accordance with ISO, FEM and DIN norms.
Double welded box beams, with camber line meeting and beyond the national standards.
High steel degree, and high safety.
High quality carbon steel Q235B or Q345B.
Submerged arc automatic welding and nondestructive flaw detection is used.
10.9 high strength bolt is used to connect the end truck.
Separated driving systems is used which make the trinity drive possible, improving the safety and reliability.
Buffer block and orbital cleaning device are equipped to end beams.
Variable Frequency Drives (VFDs): Enables smooth acceleration and deceleration, stepless control, reducing wear and tear on components while optimizing energy consumption.
3. Winch trolley
The trolley parts mainly include motor, speed reducer, brake, coupling, wheels, and coiling blocks.
No asbestos brake pad and brake block insert use card outfit, safe and reliable;
Hard toothed surface speed reducer is equipped.
Separate drives are used for the trolley travelling.
High loading ability, stable traveling, and long service life.
Derailment prevention board is used to ensure safety.
Angle round box and buffer device is used.
Modular design is available to meet the various needs of customers.
4. Electric System
Module control speed, micro-speed and double speed are available.
Traveling and lifting smoothly.
Reasonable designed control box layout is easy to repair.
High protection class IP55.
All external cable lines are marked with number.
Safety smooth touch line, high conductivity, small pressure drop.
Light dead weight, and convenient to installation.
Power Supply Cable Reel Drum
Heavy Duty Trolley Festoon System
Heavy duty motor, 60%ED rating
IP55/ H Insulation
5. Protection devices
Shields and barriers are set to prevent the hook clashing the top.
Circuit self-test protection device is installed.
Rainproof devices are equipped with lifting mechanism, and electrical control box when the cranes is placed outdoors.
Anti-collision, sound and light alarm devices.
Rail clamps are equipped.
Lifting weight limitation, height limitation, rail clamping devices
Speeding protection, zero pressure protection, the lightning protection
Over heating, overloading protect
6. Operation devices
Capsule driver room has open eye shot, linkage machine control and easy to operate.
Double block button or lever type lever, smooth operation and accurate.
Remote control, no need of professional driver
Following type or slide-independent, non-following suspension
Protection class IP65
With strong waterproof, fight broke performance

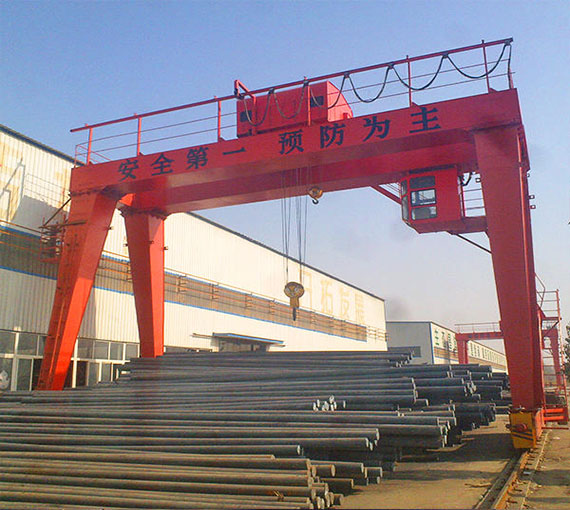

A Type Double Girder Gantry Crane
Outdoor 25 Ton Double Girder Gantry Crane
Workshop Electric Hoist Double Girder Gantry Crane
U Type Double Girder Gantry Crane
U Type RMG Rail Mounted Double Girder Gantry Crane for Container
Rubber Tire Double Girder Gantry Crane
Rubber Tire Double Girder Gantry Grane 200t
Technical Parameter of Double Girder Gantry Crane
Capacity | t | 5 | 10 | 16 | 20 | 32 |
Span | S(m) | 18~35 | 18~35 | 18~35 | 18~35 | 18~35 |
Lifting height | m | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 |
Lifting speed | m/min | 11.5 | 8.5 | 7.9 | 7.2 | 6 |
Trolley speed | m/min | 37.2 | 37.4 | 40.1 | 40 | 37 |
Crane speed | m/min | 37.7 | 37.7 | 40.1 | 40.1 | 38 |
Work duty | A3-A7 | A3-A7 | A3-A7 | A3-A7 | A3-A7 | |
Track type | P43 | P43 | P43 QU70 | P43 QU70 | P50 QU80 |
Capacity | t | 50 | 75 | 100 | 160 | 200 |
Span | S(m) | 18~35 | 18~35 | 18~35 | 18~35 | 18~35 |
Lifting height | m | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 |
Lifting speed | m/min | 5.9 | 4.7 | 3.9 | 3.5 | 3.5 |
Trolley speed | m/min | 31.3 | 38.2 | 33.9 | 22.5 | 29 |
Crane speed | m/min | 44 | 38.3 | 32.3 | 28 | 28 |
Work duty | A3-A7 | A3-A7 | A3-A7 | A3-A7 | A3-A7 | |
Track type | QU80 | QU80 | QU100 | QU100 | QU100 |
Capacity | t | 250 | 320 | 400 | 450 | 500 |
Span | S(m) | 18~35 | 18~35 | 18~35 | 18~35 | 18~35 |
Lifting height | m | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 |
Lifting speed | m/min | 2.2 | 2.3 | 1.5 | 1.5 | 1.5 |
Trolley speed | m/min | 28 | 16.6 | 10 | 10 | 11.5 |
Crane speed | m/min | 50 | 28 | 18 | 18 | 16 |
Work duty | A3-A7 | A3-A7 | A3-A7 | A3-A7 | A3-A7 | |
Track type | QU120 | QU120 | QU120 | QU120 | QU120 |
Application of Double Girder Gantry Crane
With powerful loading capacity, good performance, and high efficiency, the double beam gantry crane is widely applied in the port, dock, quay, shipyards, container railyards, railway freight station, outdoors, construction site, hydro-power station, concrete industry, marble plant, steel mills, assembly factory, workshop, warehouse, etc.
How to Select The Right Type of Double Girder Gantry Crane?
The gantry crane we produce is under strict quality control and inspection by our specialists in order to ensure a safe and efficient operation in your workplaces. If you are unsure as to which type of gantry crane is right for you, the following factors to consider when selecting your crane, will help you to define the right crane you need.
Rated load capacity
Span of the crane
Lifting height
Type of load or material
Crane working environment
How many hours does the crane work per day?(Work duty)
Other requirements
YUANDA is a leading double girder gantry crane manufacturer in China, supplying various of lifting systems to our distributors and directly to end users both in China and overseas. We ship all over the world including the United States, Canada, Indonesia, Mexico, Chile, Peru, UAE, Middle East, the United Kingdom, EU, and more.
Double girder gantry crane design drawings can also be provided by our technical team. Contact us now for double girder gantry crane price.
