Rubber Tyred Gantry Crane

Rubber Tyred Gantry Crane Design

A Rubber Tired Gantry Crane / RTG crane, or called Transtainer as the case may be, is a mobile gantry crane on rubber wheels that is operated to ground or stack multimodal intermodal transport ISO shipping sea containers. Incoming containers are stored for future pick-up by drayage trucks, and outgoing containers are stored for future vessel loading. RTG mobile gantry crane typically span multiple lanes, with one lane reserved for container transfer movement. Advantages: Its mobility enables a wide range of equipment application for gantry cranes with rubber tires.

RTG rubber tyred gantry cranes are designed to serve space-saving container terminals with high-grade container handling performance. They are equipped with the latest core of the lifting components such as motors, controls, and gear reducers. The power supply is available in hybrid, diesel generator systems (gensets), electric power and active load control that prevents sway, and many other smart features.

Besides the intermodal transport industry, rubber tire gantry crane is also a robust, reliable and flexible load lifting and material handling solution for industrial warehouses, workshops and yards in a large number of sectors. They are used to build huge unbalanced structures, assemble jumbo manufacturing parts, lift big concrete beams, and cylindrical parts, and in positioning pipelines.

Rubber Tyred Container Gantry Crane Features

Rubber tyred container gantry crane is usually called RTG for short, which is employed to stack containers in container storage yards. Rubber tired container gantry crane is flexibly moved by its own rubber tires for transshipping containers. China rubber tyred container gantry crane is equipped with specialized spreaders to lift standard-sized 20GP, 40GP, 45HQ containers and hydraulic storage tanks(20' 40' 45' 20ft 40ft).

Lift capacity: 5 10 15 20 25 30 ton, 35 ton 40 45 ton 50 60 ton 80 100 120 150 180 200 ton (tone)

Heavy loading weight / SWL/ WLL: 5t 10t 15t 20t 25t 30t 35t 40t 45t 50t 60t 80t 100t 120t 150t 180t 200t

Working duty: A3 A4 A5

Ambient temperature: -20~40℃

Good usability and high performance efficiently

Variable Frequency Drives (VFDs): Enables smooth acceleration and deceleration, stepless control, reducing wear and tear on components while optimizing energy consumption

Container spreader, hooks, lifting beams, clamps and other special lifting devices can be equipped to handle the container, steel coil, metal structure, concrete beams, rod bars, pipes, pressure tanks(LNG LPG CNG), etc

Three control modes for your selection: cabin control, remote control, floor pendent control

Easy installation and maintenance

The trolley and crane traveling mechanisms equip three-in-one reducer with convenient maintenance.

All wheels steering (hydraulic system). The tires of this container gantry crane can rotate 90° and move obliquely at 20° and 45°.

New torque anti-sway system

Container Auto-tracking and auto-hoisting system

Intelligent rectification technology of gantry crane

Intelligent control technology

Intelligent low voltage capacitor compensation

Hybrid drive and energy recovery system

Lowering or decelerating container. Move containers to and from reefer stacks. Load and unload from trucks trailers.

The trolley and crane traveling mechanisms equip three-in-one reducer with convenient maintenance

Simultaneous drive motion, direct driven travel systems

Robust structure

Hoist ropes reeved directly to the telescopic spreader

Gantry align steering

Carry containers and stack them up to 1 over 3

Operate effectively between your warehouse or depot and main yard

Single or double column/girder beam structure

Customizable height & width

Diesel, lithium battery or LPG powered

Adjustable Trolley/Double drive system, both by remote and wired control

Electronic weighing indicator

Overload limit device

Several safety devices

Paint colour at customer’s choice

Anti-corrosion protection

All of our machines are tailor-made to meet customer's requirements

Different Types Of Rubber Tyred Gantry Cranes

For different working conditions, YUANDA offers different types of industrial rubber tyred gantry crane for sale: Single-beam rubber tyred gantry cranes, double-beam rubber tired gantry cranes, straddle carrier rubber tyred gantry crane and A-frame rubber tire mounted gantry cranes. These cranes can be customized in width and height to suit the loads that need to be lifted and moved.

Applications of Rubber Tyred Gantry Cranes

What is the purpose of a rubber-tired gantry crane? Rubber tyred gantry cranes are most commonly employed at port terminals and intermodal yards for stacking and transferring ISO standard containers(20 feet, 30 feet, 40 feet, 45 feet). The carrier straddles its load, picking it up and carrying it using a container spreader to attach to the top lifting points.

Some devices can be configured with spans up to eight container rows wide plus truck lane, stacking containers up to 1 over 4 four high, with a lifting capacity under spreader of up to 60 t, which is equivalent to two full containers weight.

With powerful loading capacity, good performance, and high mobility, the single beam rubber tired gantry crane is widely applied in the port, dock, quay, shipyards, container railyards, railway freight station, outdoors, construction site, hydro-power station, precast concrete industry, construction projects, marble plant, steel mills, assembly factory, machining & mechanical workshop, warehouse, etc. With this useful crane equipment, it can greatly enhance your production efficiency and benefit your business.

For Civil Engineering Bridge Projects

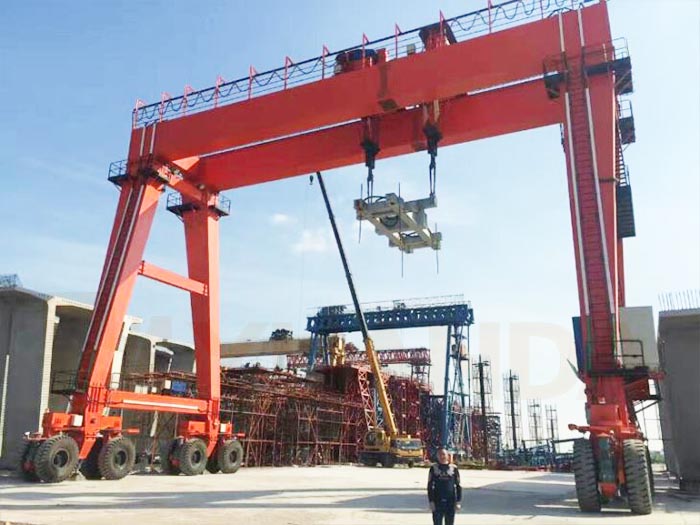

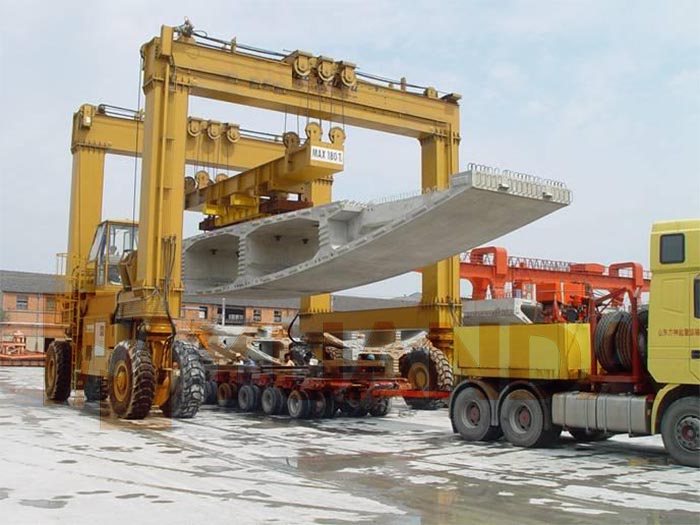

Rubber tyred gantry cranes can be used in road and bridge construction to carry out various tasks, such as Handling rebar cages, lifting and storing of precast girders and casting plates, lifting and erection of precast bridge segment; placing precast concrete components into position on the building site, such as beams, columns, and panels. They are well-suited for this application due to their mobility, flexibility, and speed. When used for precast concrete, automated rubber tyred gantry cranes are typically fitted with specialized attachments such as spreader bars or lifting clamps to securely grasp and move the components. They can also handle smaller components or move equipment and materials around the construction site.

For Subway Tunnel

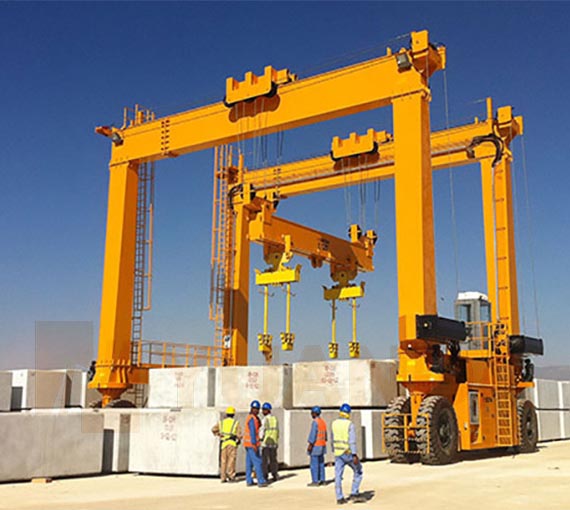

Gantry Cranes on tyres (model RTG) for civil works / infrastructures (bridges, viaducts, tunnels). These Cranes are mainly employed for remove the excavated residual soil, handling and transport long concrete beams and bridge girders, beams, pipes, pipe fittings, heavy concrete aggregates, hollow core, walls, pillars, granite and marble blocks, plates, slabs, coils, etc.

For Shipyard

Move, transfer, turnover ships from one place to another, help to maintenance, repair ships, etc.

For Manufacturing Factories And Workshops

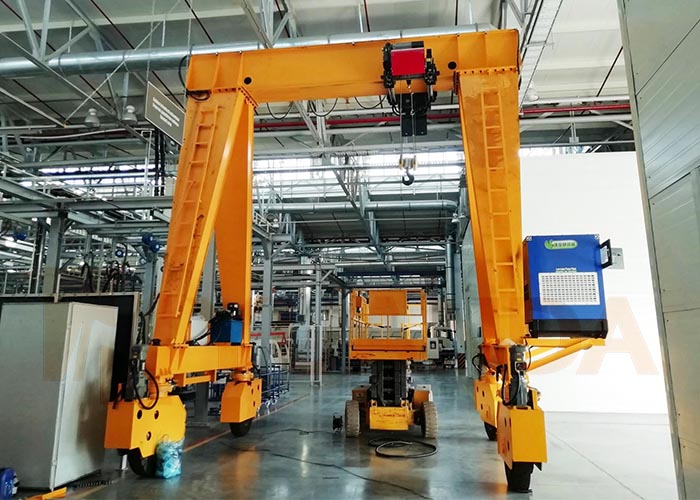

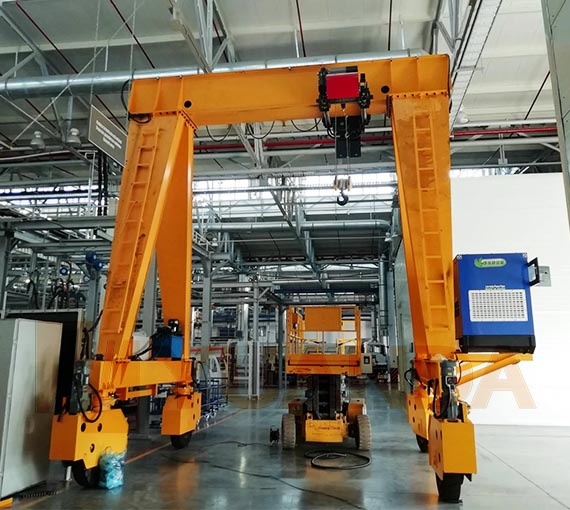

Tyre mounted gantry cranes are commonly used to lift, move, stack and handle heavy loads materials in the factory or workshop. For example, in a prefabricated house home manufacturing plant, these cranes have the heavy lifting capacity required to handle the prefabricated concrete house home(prefab home), prefabricated slab, precast panels. In a green energy wind power equipment manufacturing plant, the industrial rubber tyred gantry cranes are used to lift and move large components of the wind turbines, such as the blades, nacelles, and towers.

For Metal Steel Welding Plant

Rubber tyre gantry cranes can also be used in steel plants for the handling and movement of steel coils, plates, and other huge steel structures. These cranes used in steel plants are often equipped with specialized attachments, such as lifting magnets or clamps, which are used to securely grasp and lift specific shape, size and weight of steel products.

For Jetty, Barge, Quay, Port, Container Storage Yard, Container Terminal

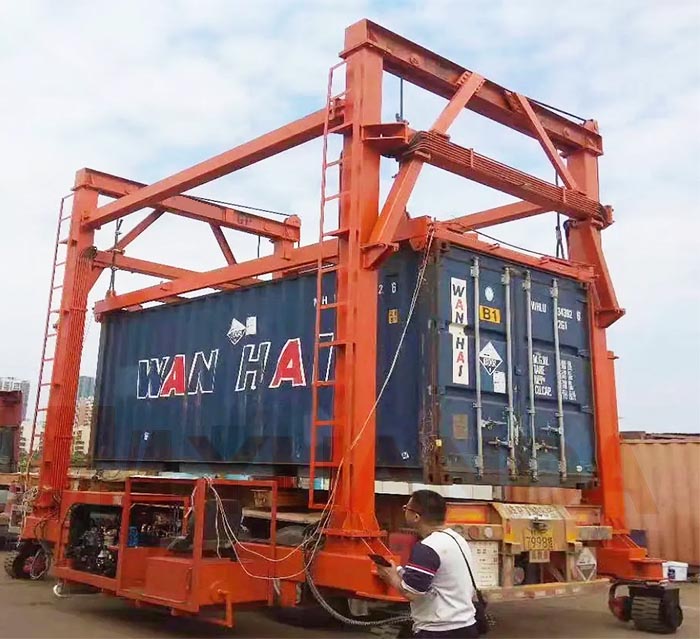

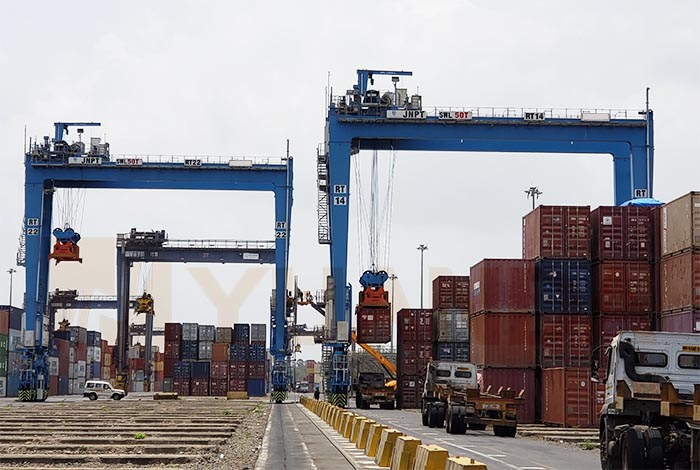

Straddle carrier RTG rubber tyred gantry cranes are commonly used in container terminals for the handling and movement of 20’ 40’ shipping container cargo. Their mobility and flexibility allow them to easily pick and carry place and stack containers, load unload container from truck trailer chassis, which can help improve productivity and efficiency by reducing handling times and improving material flow. What’s more, BESS battery energy storage containers are a cost-effective and modular system to store energy, and can be easily transported and deployed in various locations by our rubber tyred gantry crane.

Besides 20ft 40ft container handling application, the industrial straddle carrier rubber tyred gantry crane are also ideally suited to move and transport very long loads such as round bars, pipes, billets, tubes, etc.

20 Ton Workshop Single Girder A Frame Mobile Portable Rubber Tyre Gantry Crane

50 Ton Double Girder Rubber Tired Gantry Crane

30 Ton Single Beam Rubber Tyred Gantry Crane

100 Ton 200 Ton Double Beam Rubber Tyre Gantry Crane

10 Ton Workshop Portable Type Mobile Motorized Rubber Tire Electric Hoist Gantry Crane

20' Rubber Tyre Container Lift Gantry Crane

40ft Rubber Tyre Container Gantry Crane for Loading Unloading

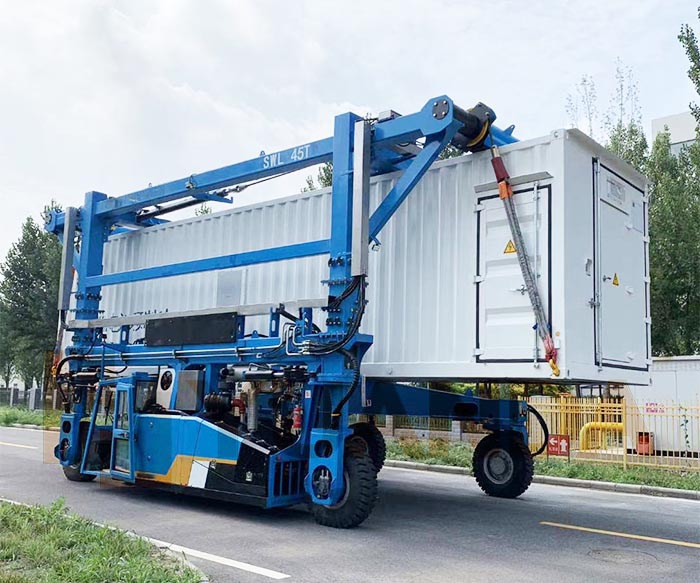

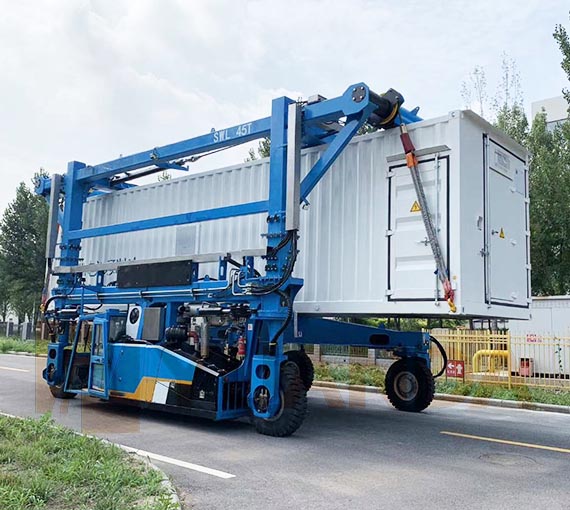

40 Ton Rubber Tyred Container Straddle Carrier Gantry Crane

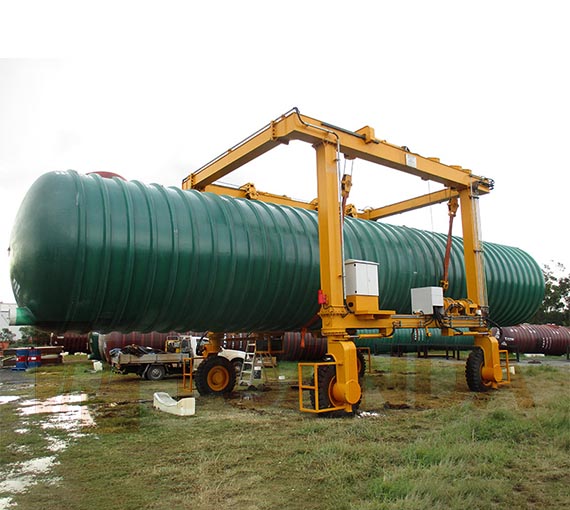

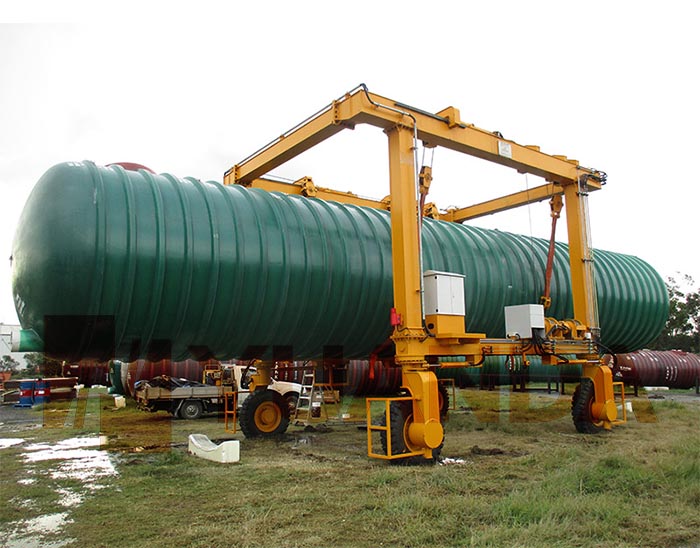

40 60 Ton Straddle Carrier Rubber Tyred Gantry Crane For Lift Round Tank Cylinder

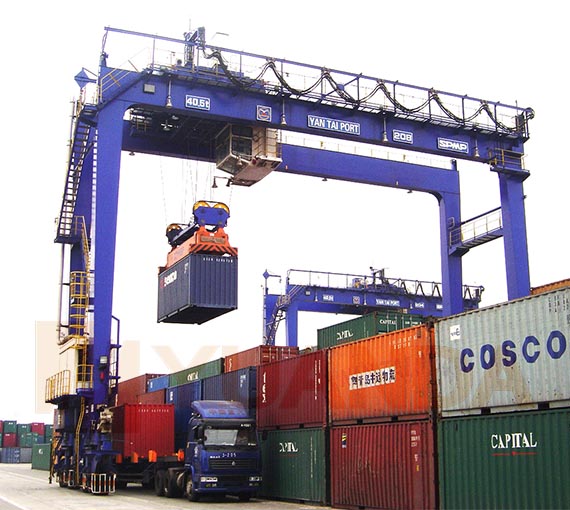

RTG Container Rubber Tired Gantry Crane on Port

Rubber Tyred Gantry Crane Parts & Components

Metal Structure -The rubber gantry crane's main metal construction is made up of the main beam, support legs, and bottom beam, and each component is joined by welding or flange connection. And crane running mechanism-hydraulic rubber tires, hoist winch drum trolley running mechanism.

• Driver cabin

• Remote control

• Engine room

• Control panel

• PLC-control

• DGPS (assisted auto steering)

• Communication system

• Camera

• Wind speed indicator

• Anti-collision

• Remote control

• Lights

This rubber tyred gantry crane is also fitted with multiple hooking point's spreaders to meet the needs of different lifting situations. The whole crane can carry out 360° steering with flexible movement.

Full hydraulic drive for crane traveling mechanism and lifting mechanism with stepless speed change. The long traveling use hydraulic closed circuit with good transmission efficiency, less fault. There are safety indicator and overlord limiter to ensure safety of operators and equipments.

Installation and Commissioning of Rubber Tyred Gantry Crane

Rubber tyred gantry crane installation services is available. After-sales service engineers can be dispatched to the job site to assist with crane installation and commissioning.

Our after-sales service teams are all highly trained and with over 10 years industry experience. We also have local after-sales team in UAE, Peru, Mexico, Philippines, Indonesia, Malaysia, Pakistan, and Uzbekistan to offer a better serve to our customers.

Rubber Tyred Gantry Crane Training

Besides the supply of the high quality RTG Crane, we also provide our customers overall crane services for standard crane operation. The scope of the training is to provide the necessary knowledge and practical skill to handle and operate a rubber tyre gantry crane (RTG) in order to load and unload containers in a safe and productive way and this according the safety regulations and legislation.

The operators can also be instructed in a variety of ways by our crane engineers. There are gantry crane video presentation, RTG manuals, rubber-tired crane pdf, and onsite training services available for your operators' use.

Technical Support to Your Rtg Crane

We have skilled engineers to offer technical support. Our engineers can develop the best possible lifting solutions and detailed recommendations based on your individual needs to maximize your work productivity and safety.

Our Customer Care teams will respond to your needs as rapidly as possible with expert technical assistance either on the phone or on the job site. Our highly trained engineers and technical staff work with our distributors or dealer partners around the world to provide the support you need. Our service is available 24 hours a day, seven days a week. If you have any questions, please send us an email or give us a call!

Rubber Tyred Gantry Crane Maintenance

Proper maintenance can extend an automotive gantry crane's service life exponentially. Our commitment is always to manufacture gantry crane that requires minimal maintenance and to provide the best after-sales service throughout the 12-months warranty term.

The rubber-tyred gantry crane is manufactured in strict conformity with international specifications, and all parts have been qualified to international standards as well. We work with leading manufacturing brands, using the highest quality components for our gantry cranes.

You can completely inspect the gantry crane if there are any problems with the rubber tyred gantry crane movement. If you have any questions about rubber tyred gantry crane maintenance, please contact our after-sales service center freely.
