RMG Rail Mounted Gantry Crane Design

A rail mounted gantry crane is a heavy, overhead crane typically used to load and unload heavy items on docks and in rail yards or factories. These cranes consist of heavy, A-frame constructions located a distance from each other and fitted with train-type wheels on their wide, lower sections. These wheels run on parallel steel railway tracks, allowing the structures to move along the rails. The two A-frames are connected at their top ends by a cross rail arrangement on which an electric winch is mounted. The complete rail mounted gantry crane can thus move forwards or backward along the lower rails, while the crane transverses the gap between them on the upper tracks allowing the gantry to cover large loading areas.

Loading docks, rail yards, and heavy manufacturing facilities often require cranes that can lift extremely heavy, large loads and move them long distances to discharge points. When the loading and offloading take place outside, in many instances, a gantry crane mount on rails is a good solution which allows for the lifting of high and heavy loads across a large loading area. These gantry crane travelling on rails are also capable of moving suspended loads over considerable distances between loading and offloading points.

The separation distance, or called span, between the tracks and their lengths are dictated by the requirements of the loading facility. Running on wheels on each of the tracks is a high, robust A-frame assembly, the top portions of which are joined together by a track assembly that supports a cross-travel overhead crane. The overhead crane with electric winch is then free to travel between the uprights along the upper tracks. In other words, the entire assembly forms an inverted square "U" with its open ends running on the lower rails.

The rail mounted gantry allows excellent flexibility regarding its range of loading movement. The crane can lift and lower loads at any point along its range of travel between the uprights. Once lifted, the entire gantry can then move along the main, lower tracks to drop the load at a discharge point. Both the crane functions and the gantry track movement are controlled from an operator station located on the crane assembly. This flexibility makes the rail mounted gantry ideal for loading and offloading cargo containers and other large loads that require both heavy-lifting capacity as well as extended headroom and travel capacity.

Rail-mounted container gantry cranes (or RMG / ARMGC) are dedicated equipment for container stacking in container yards. The working duty can reach A6~A7. This gantry crane is equipped with a special container spreader to lift 20ft, 40ft, 45ft standard containers, and hydraulic storage tanks. According to working requirements, outstretch cantilevers can be designed at one side or both sides of the main girders.

10 Ton Single Girder Rail Mounted Gantry Crane Specification & Features

Heavy loading weight(SWL): 5t 10t 15t 20t 25t 30t 35t 40t 45t 50t 55t 60t 80t 100t 120t 130t 150t 160t 180t 200t 300t

Rail mounted container gantry cranes (RMG) has perfect safe device and overload protective device, i.e., anemograph, lighting rod, anchor, rail clamp and wind cable, which guarantee the operator and equipment safety to the maximum extent. Electrical system adopts PLC to easily control all mechanisms, and famous brand parts are chosen to make sure the whole crane’s quality.

Rail mounted container gantry cranes (RMG) design manufacture inspection adopts DIN FEM IEC international standards.

The RMG has the advantage of being driven by electrical power, clean and no pollution, bigger lifting capacity, stable performance, high efficiency, easy maintenance.

Our industrial rail mounted gantry cranes are available to be equipped with a hoisting winch, electric wire rope hoist and more, also can be equipped with grab bucket and special customized spreader to achieve special material handling work.

They are typically used in general manufacturing, assembly, workshops, warehouse, automotive, pulp & paper, mining, power, railways, waste to energy and steel industries for various purposes.

Three control modes for your selection: cabin control, remote control, floor pendent control.

Over voltage or over current protection

Overload limit switch

Power supply cable reel drum

Heavy duty trolley festoon system

High quality copper/aluminum wire cable conductor bar

Prohibited to use in the flammable, explosive, corrosive media environment.

RMG Rail Mounted Container Gantry Crane Structure

Rail mounted container gantry cranes (RMG) is a specialized container handling machine that is applicable in container yard, railway container terminal, to handle international standard containers.

Rail mounted container gantry cranes (RMG) can travel on rail by means of the yard power, usually powered by cable and cable drum, to lift and stack containers in the yard area with the equipment of the 20' or 40' or 45’ freight container telescopic spreader (or twin-lift spreader if needed).

The RMG consists of U type steel gantry frame, lifting mechanism, trolley traversing mechanism, crane traveling mechanism, outriggers, container spreader (for 20’ / 40’ and 45’ intermodal container) and anti-sway mechanism, electrical control.

The gantry frame is a top horizontal frame composed of steel plates welded with 2 derailed box-type main beams and 2 upper beams; In the 4 adjustable box-type outriggers, the two outriggers on the same side of the track are connected by crossbeams at the lower end, forming two vertical plane frames, forming the rigid gantry structure type of the main beam of the crane.

A trolley running track is laid on the deflection box-type main beam upper cover plate, and the main beam upper cover plate also serves as a walking platform. Trolley can be rotating type or spreader to be rotating type, whole trolley can pass through the legs to achieve bigger working range.

An I-beam is set up along the entire plant on the inside of a main beam, and a total of car power cable sports cars are running. There is an electrical room on the outside of the main beam. Cable drums are installed on the door legs below the electrical room. The control mode usually is cabin control.

An escalator is installed on one leg below the other main beam, and a rail clamp is provided below the two lower beams.

Various Types of Rail Mounted Gantry Crane

The Rail Mounted Gantry Crane is a versatile and efficient lifting solution designed for heavy-duty material handling operations in workshops, warehouses, ports, shipping yards, and intermodal facilities. This crane is specifically designed to travel along rail tracks, providing a high level of mobility and flexibility in container handling. The gantry crane can be produced with different configurations according to different work occasions and needs. Examples of different types include: Small rail mounted gantry crane, European type gantry crane, Semi gantry crane, Truss type gantry crane, L type gantry crane, Single girder or double girder gantry crane and so on.

MH Type 10 Ton Single Girder Rail Mounted Gantry Crane

20 Ton Industrial Double Girder Rail Mounted Gantry Crane

Outdoor 60 Ton Industrial Double Girder Rail Mounted Gantry Crane

U Type RMG Rail Mounted Container Gantry Crane at Port Quay

Single Girder Half One Leg Rail Mounted Semi Gantry Crane 5 Ton

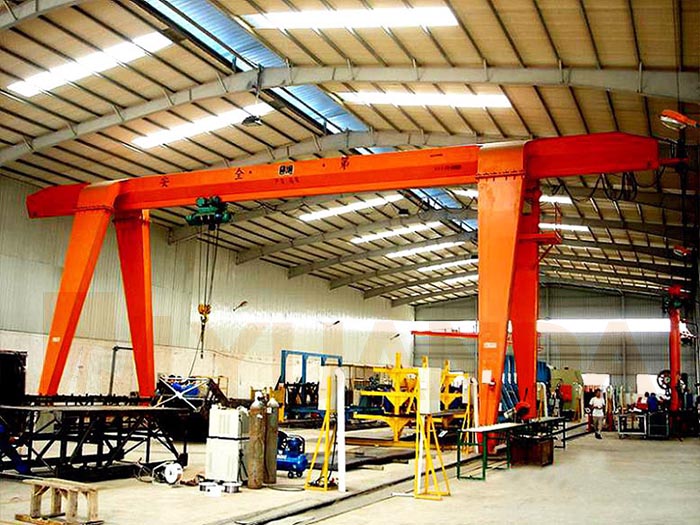

20 Ton Single Girder Electric Hoist Rail Mounted Gantry Crane with Cantilever

Outdoor MH Lattice Truss Type 5 Ton Rail Mounted Gantry Crane

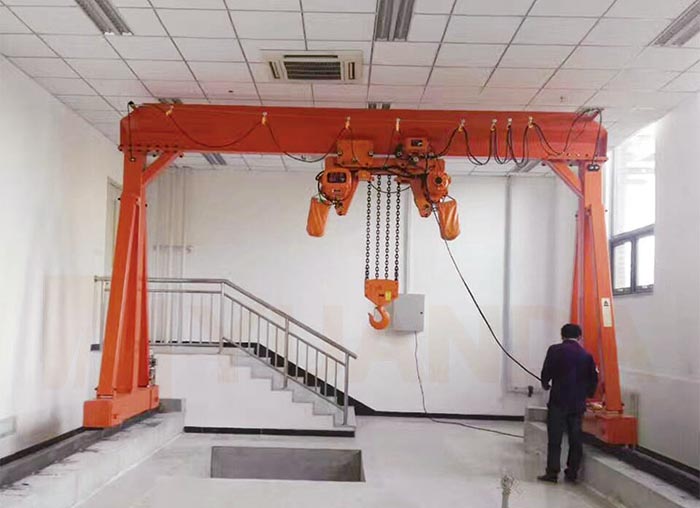

10 Ton Workshop Small A Frame Single Girder Rail Mounted Gantry Crane for Sale

10 Ton Mobile Single Girder Rail Mounted Gantry Crane with Electric Hoist

Technical Parameter of 40 Ton Double Girder Rail Mounted Gantry Crane

Application of Rail Mounted Gantry Crane

With powerful loading capacity, good performance, and high efficiency, the rail-mounted gantry crane is widely applied in the port, dock, quay, shipyards, container railyards, railway freight station, outdoors, construction site, hydro-power station, precast concrete industry, construction projects, marble plant, steel mills, assembly factory, machining & mechanical workshop, warehouse, etc. Rail-mounted container gantry cranes are widely used in port terminals and container yards. They are mainly used for container loading, unloading, handling, and stacking in container railway transfer yards and large container storage and transportation yards.

The items the crane lifted including the ISO shipping containers, tanks, cylinders, rod, bar, building materials, steel structure, iron, ingots, metal, marble, granite and garbage, etc. With this useful tool, it can greatly enhance your production efficiency and benefit your business.

How to Select The Right Type of Rail Mounted Gantry Crane?

The gantry crane we produce is under strict quality control and inspection by our specialists in order to ensure a safe and efficient operation in your workplaces. The hot sale series is 5 ton gantry crane, 10 ton gantry crane and 20 ton gantry crane. If you are unsure as to which type of gantry crane is right for you, the following factors to consider when selecting your crane, will help you to define the right crane you need.

• Rated load capacity

• Span of the crane

• Lifting height

• Cantilever of single girder gantry crane

• Type of load or material

• Crane working environment

• How many hours does the crane work per day?(Work duty)

• Electric Power supply: 3 phase 380V 50Hz?

• Other requirements

Rail Mounted Gantry Crane Manufacturer in China

YUANDA is a leading RMG rail mounted gantry crane manufacturer in China, supplying various of lifting systems to our distributors and directly to end users both in China and overseas. We ship all over the world including the United States, Canada, Indonesia, Mexico, Chile, Peru, UAE, Middle East, the United Kingdom, EU, and more. All our rail mounted gantry cranes are CE certified.

Rail mounted gantry crane design drawings can also be provided by our technical team. Contact us now for rail mounted gantry crane price.
