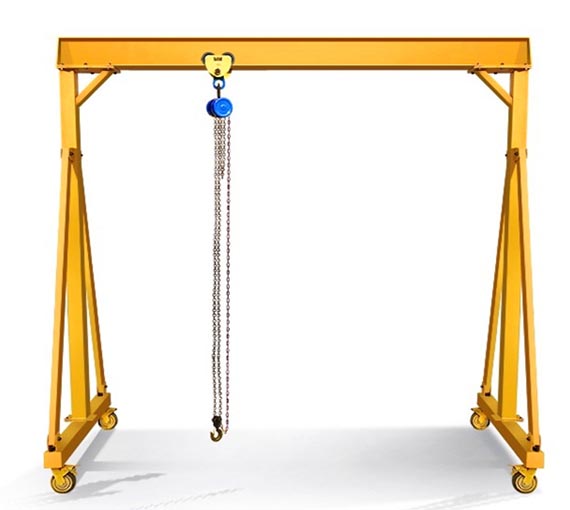

Portable Gantry Crane

Features of Portable Gantries

With a portable gantry, you can work anywhere in your facility. You can easily relocate the light duty portable gantry cranes to move and lift heavy materials in your workshop or outdoors. Portable gantry cranes are widely used in workshop, storage, warehouse, auto repair shops, vessels, laboratory, etc.

• Product name: Portable gantry system; mini gantry crane with electric hoist; portable lifting gantry; mobile lifting beam
• Model number: PT1 PT2 PT3 LT1 LT2 LT3 LT4 PT3-5 PT2-1 PT3-2
• Rated load capacity / SWL / WLL: 0.5 1 2 3 5 6 7 7.5 8 10 12 15 16 18 20 Ton/TN/Tonne/Metric Ton. Small portable gantry crane’s design calculation can be provided at request.
• Heavy loading weight: 200 500pound, 1000lbs, 2000lbs, 3000lbs, 4000lbs, 5000lbs, 6000lbs, 8000lbs.
• Lifting capacity: 1/2 ton 0.5t 1t 2t 3t 5t 7.5t 8t 10t 12t 15t 16t 20t
• Span(Width): 3m 4m 5m 6m 8m 10m 12m 15m. Small steel gantry crane with larger span is available.
• Lift Height: 2~12m.
• Lifting speed: 1~20m/min dual speed or variable speed (custom) for hoisting speed
• Crane Travelling Speed: 6-10m/min single speed or double speed
• Lightweight, strong and corrosion resistant.
• Height: Fixed height gantry crane or adjustable height
• Tires: Small gantry crane with rubber tires, movable on heavy duty castor wheels with brake
• Movement mode: Hand push, trackless or Travel by Motorized tires
• Control method: Hand operated; Pendant wire control or Wireless Remote Control
• Wheel Number: 4 wheels gantry crane, with 4-position swivel locks
• Power supply: AC-3Phase-220v/380v/400v/415v/440V-50/60Hz
• Small portable travelling gantry crane can be built as your specific needs. Cantilever beam is possible.
• Working Duty: A3, A4, A5
• Ambient Temperature:-20~40℃
• Complies with CE Standards
• Light weight gantry crane features compact design, simple structure, all steel construction.
• Uses: Rapid loading, unloading, transportation of goods, machine moving, pick and carry, aircraft maintenance and machinery assembly.
• Electric mobile gantry cranes have four wheels for easy maneuverability. It can realize X Y Z three-axis motion. The caster wheels is made with steel roller-bearings. Designed to roll under load.
• The adjustable portable gantry crane is easy to assemble, disassemble, move, steer, transport, and store.
• Small mobile gantry crane manufacturer: China supplier & exporter
• Small mobile gantry crane price: $4,000~$30,000

Custom Portable Gantry Crane Options

• The loading capacity includes: 125kg 150kg 200kg 250kg 300kg 500kg 1000kg 1500kg 2000kg 2500kg 3000kg 3500kg 4000kg 5000kg 7500kg 8000kg 1000 pounds 2000lbs 3000lbs 4000pounds 8000pounds
• Low Headroom Electric Chain Hoist or Wire Rope Hoist (Electric or Manual block)
• Manual or Electric Trolley (Hoist Travel)
• Motorized Crane Travel (Motor rubber wheels)
• Variable Frequency Drives (VFD): Stepless speed control, enables smooth acceleration and deceleration during travel. SEW Motor, SCHNEIDER, SIEMENS, CHINT, YASKAWA or other brands electric.
• Custom Paint Color
• Adjustable legs and beams
• Foldable portable gantry crane can be made as per request
• Hot dip galvanized carbon steel or Stainless steel or Light aluminum alloy for clean room application
• Site installation available

Applicable industries: Small portable mobile gantry crane for warehouses, automotive industry, metalworking, sanitary, assembly lines, machinery manufacturing plant, food & beverage factory, mechanics, logistics, machine tools, energy & mining, oil & gas, textile, renewable energy, die casting, production, plastic industry and so on.

The modular and simple structural design ensures high efficiency, safety, and reliability. The light weight portable gantry crane is ideal machine to handle steel coils, slabs, heavy rolls, plastic injection mold, granite and marble blocks, stones, car engines, plates, metal workpieces, auto parts, mechanical parts, steel sheet, containers, rod bars, pipes, tanks, etc.

Different Types of Small Portable Gantry Crane

These mini mobile cranes are light duty gantry cranes on rubber wheels or casters. They can be moved to any facility, and the weight each can lift at a time varies from 500kg to 5 tons. YUANDA has a wide selection of large and small gantry cranes for sale to improve material handling processes and production at your warehouse. We have multiple configurations, so you can select the gantry crane best for your application.

The comprehensive line of mini small mobile gantry cranes we have for sale is designed to fit every need and budget. We have 5 different product lines and hundreds of models, including Fixed gantry crane, height adjustable gantry crane(both by manual winch and by worm gear/thread screw), hand push manual gantry crane, motorized electric driven gantry crane, lightweight aluminum alloy gantry crane, stainless steel gantry crane.

To be specific, it can be divided in single beam or double beam gantry crane, foldable gantry crane and telescoping gantry crane regarding to different structure design; As per loading capacity, there are 5 ton portable gantry crane, 10 ton portable gantry crane and heavy duty 20 ton portable gantry crane, which are hot sale series. Sorted by working sites, it can be designed as mechanical workshop portable gantry crane, indoor gantry crane, small shop gantry crane or shop lift, warehouse gantry crane, garage gantry crane and so on for your need. With different travelling mode, there are manual portable gantry crane, hand push gantry crane, electric motorized gantry crane, wheeled gantry crane. In addition, it can be made as fixed gantry crane which is mounted on ground floor by anchor bolts, with no wheels.

According to power source, the portable crane can be produced as motorized gantry crane, battery operated gantry crane, gantry crane with diesel power generator or diesel engine for your choice.

Our workshop mobile gantry crane provides a cost-effective lifting solution that is reliable and versatile. Their compact structure allows for easy maneuverability in tight spaces. YUANDA has provided the best value in small mobile portable gantry cranes and hoists, portable lifting equipment, comprehensive crane services and expert engineering since 2007. User manual, installation guide and training service are also provided. Depending on the working sites where the moveable gantry cranes are employed, we will design the best lifting solution for your businesses. Contact us now for more details of our electric walking gantry crane.

Components and Spare Parts of Small Portable Gantry Crane

A mobile A frame gantry crane is a type of portal gantry crane with a single or double girder configuration supported by freestanding legs that move on wheels or rubber tires. Therefore, the crane can achieve trackless travel. This trackless gantry crane provides both forward and backward motions and steerable travel to turn direction and rotate. Mini mobile gantry cranes usually work in tandem with electric hoists and trolleys, offer a sturdy framework for lifting and transporting heavy goods and materials in warehouse and manufacturing settings. Featuring an adjustable column or beam, they enable precise positioning, while their durable swivel lock casters ensure effortless movement across work areas. Constructed with a heavy-duty steel frame and I-beam, mini portable gantry cranes support hoists and trolleys, ensuring stable lifting and movement of heavy loads. They are also called as small portable A frame gantry crane or mobile single beam gantry crane. Their design allows for both indoor and outdoor use, making them versatile solutions for various applications.

Main beam

The single beam or single boom girder that spans the width of the I beam gantry crane, It is usually made of high quality carbon steel and supports the hoist trolley and the load weight. Double girder configuration is also available. The rugged structural steel construction of the gantry crane enables indoor as well as outdoor use. So you can use it on a construction site, dockyard or even a warehouse.

Support legs

A frame structure legs supporting the gantry crane beam. The poles are assembled by bolts, easy to install. Equipped with wheels, the small portable A frame gantry crane can be easily moved to different locations within a facility or even transported between job sites. It can also be designed as 4 post or 4 legs gantry crane for low headroom application. The load is handled by hydraulic lift of the gantry beam.

Crane drive wheels

The small gantry crane motor wheels is made with nylon material, rubber tires or PU wheels with brake, which features wear-resistant and long working life. The portable gantry crane on wheels or casters offers flexibility, mobility, and reliable lifting, making it essential for moving light loads in workshops. It is also steerable.

Hoist

The portable gantry crane can be adapted to various types of hoists such as manual hoist, manual chain block, air-powered hoist, electric chain hoist and electric wire rope hoist. We offer a wide range of durable hoist solutions to help you smoothly lift and move heavy loads.

Controls

The self-propelled portable gantry crane can be operated using a pendant control or a wireless remote control, allowing for greater precision and control during lifting and operation.

Other portable gantry crane parts and accessories includes gantry crane motor, cable reel, castor wheels, lifting chains, power cable, winches, hydraulic cylinders and so on. All parts and structures are detachable. The optional features of a heavy-duty portable gantry crane include anti-collision devices, automatic control systems, and various safety features such as emergency stop, limit switches and overload protection systems. The small mobile gantry cranes are auxiliary machines with various components and configurations that are tailored to specific lifting requirements. Knowing the main components of a gantry crane is essential for understanding how the machine works and achieve a high work efficiency. Whether it's for heavy-duty industrial applications or light-duty projects, choosing the right gantry crane can greatly increase productivity, and ensure the safety of the operators and the load being lifted. If you want to buy a cheap gantry crane, we are here to help.

Application of Portable Gantry Crane

Designed with simple structure, the telescopic mast portable gantry crane is a great way to simplify awkward material handling requirements. These cranes are ideal solution to lift and move heavy loads in various industries and applications including: automobile, aerospace, steel mill, HVAC, medical, renewable green energy, wind power and more.

The portable gantry crane with electric hoist is ideal for lifting and moving materials in workshops or small manufacturing facilities where space is limited. in plastic industry, it can be made as mold lifting gantry crane for injection machine. In printing factory, it can be used as printing press gantry crane to transfer offset printing machine; It is also known as mobile portable hydraulic gantry crane for this specific use. In a boat yard, the small boat lifting gantry crane is used for boat and vessel maintenance. In a laboratory or research center, portable gantry crane is ideal lift assist tool for loading and unloading of machines or equipment. Mini mobile lifting gantry cranes can also find applications in construction sites for lifting and positioning heavy building materials, tools and equipment. For food, chemical, and pharmaceutical industry, or cleanroom application, the portable crane can be specially made as stainless steel gantry crane, zinc plated or hot dip galvanized gantry crane, in order to meet the sanitary requirement.

With capacities from 1 to 20 Tons and spans from 2 to 10 meters, yuandacranes portable gantry cranes are easy to move in your factory area, assemble and disassemble for relocation. To exactly fit your requirements, we also offer our self erecting freestanding gantry cranes in custom sizes. Contact YUANDA to find an optimum portable gantry crane for your needs!

Portable Gantry Crane Manufacturer in China

YUANDA is a leading China manufacturer of portable gantry cranes and various of lifting systems including portable mobile hoist crane, porta gantry system, hydraulic gantry lift, beam lift and portable hoist frame. We supply those material handling equipment to our distributors and directly to end users both in China and overseas. We ship all over the world including the United States, Canada, Australia, Pakistan, Thailand, Malaysia, Philippines, Singapore, Japan, India, Indonesia, Mexico, Chile, Peru, Dubai, UAE, Middle East, the United Kingdom, EU, and more. All our portable gantry cranes are CE certified.

Portable gantry cranes from YUANDA cranes combine mobility, reliability, and efficiency to meet the diverse lifting needs of modern industries. Whether you require a solution for occasional tasks or continuous operations, our range of portable gantries ensures seamless handling of materials with minimal setup time and maximum safety. Contact our company to learn more about our portable gantry crane price and find the perfect solution for your lifting requirements.
