Portable Gantry Crane
Adjustable Height Gantry Crane
The portable gantry crane can be designed as adjust height, span, and tread (T-Series) for use on uneven floors, through doorways, aisles, and under mezzanines or other overhead obstacles.
Span(Width): 3m 4m 5m 6m 8m 10m 12m 15m 25ft
Lift height: 2~12m
Lifting capacity: 0.25ton 0.5ton 1 2 3 5 8 10 12 15 20 ton
Movement mode: Hand push, trackless or travel by motorized wheels
Control method: Pendant wire control or wireless remote control
Working duty: A3, A4
Ambient temperature:-20~40℃
Adjustable height gantry crane price: $5000~$20,000

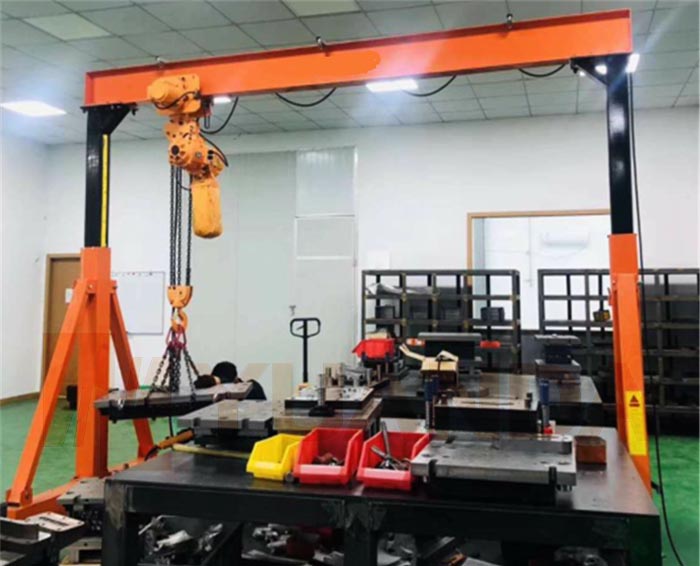

Adjustable Height Gantry Crane
Adjustable Height Electric Hoist Gantry Crane Design
Height adjustable steel gantry cranes are a type of small portable gantry cranes with height adjustable gantry designs, providing the most flexible crane solutions for light material handling. The adjustable height portable gantry cranes can be easily relocated to any place and adjusted to provide different lifting heights. The small mobile telescopic type adjustable gantry crane can be moved easily, disassembled and installed quickly, with small ground covering space.
Warehousing applications or some special applications requiring the movement of loads through aisles, doorways, around obstacles, and under obstructions. This makes height adjustable a frame gantry cranes a good choice for workshop where there is height restriction and the maximum space utilisation is required vertically.
PT1 Fixed Height Gantry Crane PT2 Adjustable Height Gantry Crane PT3 Motorized Gantry Crane
LT1 Fixed Height Aluminum Gantry Crane LT2 Adjustable Height LT3 Adjustable Height and Span Crane
LT4 Light Aluminum Gantry Crane LT5 Foldable Aluminum Gantry Crane LT6 Heavy Duty Aluminum Crane
Adjustable Height Mobile Gantry Crane Specification & Features
Capacity: 250kg 500kg 1000kg 1500kg 2000kg 5000kg
Loading weight: 500pound, 1000lbs, 2000lbs, 3000lbs, 5000lbs, 6000lbs, 8000lbs
SWL: 0.5t 1t 2t 3t 5t 7.5t 8t 10t 12t 15t 16t 20t
All steel construction.
Lightweight, light duty
Movable on heavy duty castor wheels with brake
Complies with CE Standards
Adjustable Height Portal Gantry Crane Options Available
Fixed height gantry crane or telescopic type height adjustable gantry crane can be built to order
Adjustable height and span
Height adjustment mode: Height adjusted by manual winch, by manual turbine worm gear, by hydraulic lift or height electric automatically adjusted by remote/wire control.
Height adjustable aluminum gantry crane
Electric chain hoist or wire rope hoist (Motorized or manual)
Manual or electric trolley (Hoist travel)
Electric driven motorized crane travel (Motor rubber wheels)
V-Groove Track
SEW Motor, Schneider Electric
Custom paint color or hot dip galvanized or stainless steel or light aluminum alloy
Site installation available
2 Ton Small Portable Height Adjustable Gantry Crane
3 Ton Mobile A Frame Height Adjustable Gantry Crane with Manual Winch
5 Ton Hydraulic Lift Height Adjustable Gantry Crane in Workshop
10 Ton Height Adjustable Electric Hoist Steel Gantry Crane
500Kg Light Weight Adjustable Height Aluminum Gantry Crane
Technical Parameter of 2 Ton Height Adjustable Gantry Crane
Item | Portable Gantry Crane | |||||
Capacity(Ton) | 0.5 ton | 1 ton | 2 ton | 3 ton | 5 ton | 10 ton |
Span(m) | 2-12m (as you require) | |||||
Lifting height(m) | 1-10m (as you require) | |||||
Total height(m) | 1-15m (as you require) | |||||
Wheel | 4 | |||||
Lifting equipment | Manual / Electric chain hoist or wire rope hoist | |||||
Power voltage | 380V 50HZ 3P or customized | |||||
Height Adjustable Gantry Crane Manufacturer in China
YUANDA is a leading China manufacturer of adjustable height gantry cranes, supplying various of crane and hoist lifting systems to our distributors and directly to end users both in China and overseas. We ship all over the world including the United States, Canada, Indonesia, Mexico, Chile, Peru, UAE, Middle East, the United Kingdom, EU, and more. All our portable gantry cranes are CE certified.
Height adjustable gantry crane design drawings can also be provided by our technical team. Contact us now for height adjustable gantry crane price.
