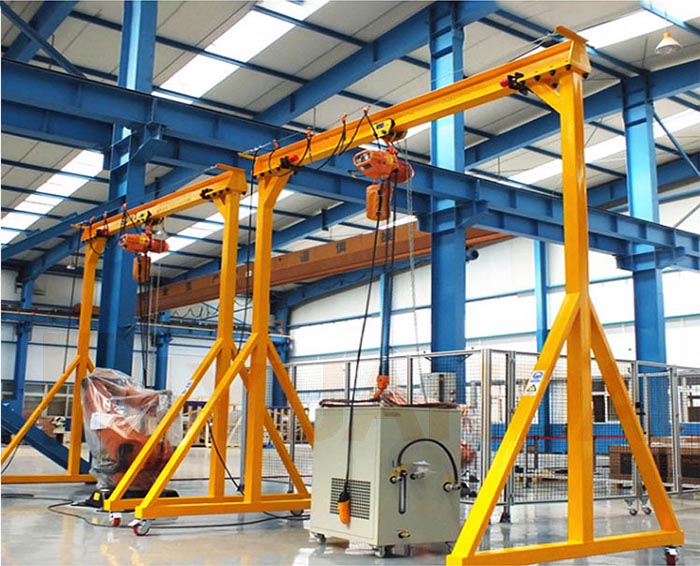

Light Duty Gantry Crane
Light duty gantry cranes are versatile and efficient lifting devices used in various industries to handle loads with ease. We provide light duty a frame gantry cranes both in steel and aluminum alloy material. It is widely used in production and process line, warehouse, material yard etc, both for indoor and outdoor material handling work.
Span(Width): 3m 4m 5m 6m 8m 10m 12m 15m 25ft
Lift height: 2~12m.
Lifting capacity: 0.25ton 0.5ton 1 2 3 5 8 10 ton
Movement mode: Hand push, trackless or travel by motorized wheels
Control method: Pendant wire control or wireless remote control
Working duty: A3, A4
Ambient temperature:-20~40℃
Supplier type: China supplier
Light duty gantry crane price: $3,000~$15,000
Light Duty Gantry Crane
Light Duty Gantry Crane Design
Our light duty portable gantry cranes are fabricated and welded to provide precise load positioning for light to medium loads. They are ideal for applications that require an economical, versatile lifting solution. If your facility can not support an overhead bridge crane a light duty mobile gantry crane is the perfect solution.
These gantry cranes are self-supporting and travel directly on the floor or rail mounted. Our light duty small gantry cranes come with a power drive system that includes polyurethane (trackless) or V-groove wheels. A light duty gantry crane can easily be moved from one location to another.
Light duty gantry cranes can refer to many different types of cranes, such as portable mobile gantry cranes, adjustable gantry cranes, small gantry cranes, aluminum gantry cranes and single girder workshop cranes.
PT1 Fixed Height Gantry Crane PT2 Adjustable Height Gantry Crane PT3 Motorized Gantry Crane
LT1 Fixed Height Aluminum Gantry Crane LT2 Adjustable Height LT3 Adjustable Height and Span Crane
LT4 Light Aluminum Gantry Crane LT5 Foldable Aluminum Gantry Crane LT6 Heavy Duty Aluminum Crane
Light Duty Workshop Gantry Crane Specification & Features
Capacity: 250kg 500kg 1000kg 1500kg 2000kg 5000kg
Loading weight: 500pound, 1000lbs, 2000lbs, 3000lbs, 4000lbs, 5000lbs, 6000lbs, 8000lbs
SWL: 0.5t 1t 2t 3t 5t 7.5t 8t 10t 12t 15t 16t 20t
All steel construction or aluminum alloy
Small size, lightweight, light duty
Movable on heavy duty durable locking castor wheels with brake
Complies with CE Standards
Light Duty Portal Gantry Crane Options Available
Fixed height gantry crane or telescopic type height adjustable gantry crane can be built to order
Adjustable height and span
Height adjustment mode: Height adjusted by manual winch, by manual turbine worm gear, or height electric automatically adjusted by remote/wire control
Electric chain hoist or wire rope hoist (Motorized or manual)
Electric driven motorized crane travel (Motor rubber wheels)
V-Groove Track
SEW Motor, Schneider Electric
Custom paint color or hot dip galvanized or stainless steel or light aluminum alloy
1 Ton Hand Push Small Portable Light Duty Gantry Crane
2 Ton Mobile A Frame Light Duty Workshop Gantry Crane
2 Ton Height Adjustable Light Duty Steel Gantry Crane
3 Ton Light Duty Double Girder Gantry Crane
5 Ton Light Duty Motorized Wheel Portal Gantry Crane
2 Ton Light Duty Rail Mounted Gantry Crane
500kg 1000kg Light Duty Aluminum Porta Gantry Crane
Technical Parameter of Light Duty Gantry Crane
Item | Portable Light Duty Gantry Crane | |||||
Capacity(Ton) | 0.5 ton | 1 ton | 2 ton | 3 ton | 5 ton | 10 ton |
Span(m) | 2-12m (as you require) | |||||
Lifting height(m) | 1-10m (as you require) | |||||
Total height(m) | 1-15m (as you require) | |||||
Wheel | 4 | |||||
Lifting equipment | Manual / Electric chain hoist or wire rope hoist | |||||
Power voltage | 380V 50HZ 3P or customized | |||||
Light Duty Gantry Crane Manufacturer in China
YUANDA is a leading China manufacturer of light duty hoist gantry cranes, supplying various of crane and hoist lifting systems to our distributors and directly to end users both in China and overseas. We ship all over the world including the United States, Canada, Indonesia, Mexico, Chile, Peru, UAE, Middle East, the United Kingdom, EU, and more. All our light duty portable gantry cranes are CE certified.
2 ton light duty gantry crane design drawings can also be provided by our technical team. Contact us now for light duty electric hoist gantry crane price.
