Mobile A Frame Gantry Crane

Mobile A Frame Gantry Cranes

Small mobile a frame gantry cranes provide economical material handling in workshops where an overhead crane system is not available or practical. Their safety and efficiency make them a frequent choice for production, installation and maintenance applications. The mobile a frame gantry crane with rubber wheels are often used in maintenance shops, machine shops and loading areas. These cranes are sometimes also referred to as a-frame hoists, a frame portal crane because of the triangular (“A”) shape of their legs.

Conventional models include 10 ton a frame gantry crane up to 20 ton loading capacity. The main girder is a horizontal I beam or reinforced box type I beam, fabricated with end plates suitable for connection to the steel leg sections. The electric motor is used as main power supply to operate the movement of the fixed gantry cranes, while other times, when our customer requires a light duty crane, such as 1 ton a frame gantry crane. It is also possible to use human power to move the small gantry cranes by hand push.

Depending on your needs, this A frame gantry crane can come in many different configurations: it can be designed as fixed a frame gantry crane which is bolted to the floor for stability (floor mounted a frame). Electric motorized A frame gantry crane is manufactured to include a set of durable caster wheels or motorized wheels. (mobile a-frame, movable a frame). The height adjustable a frame gantry crane makes it easy to enter and exit the workshop door. Additionally, it can be made as rail mounted a frame gantry crane which is placed on a rail system if needed, travelling along track mounted on ground floor rails. Lightweight aluminum a frame gantry crane is suitable for cleanroom application.

Our small portable A frame gantry cranes are supplied in a knock-down form for easy transport and erection on site. It is able to assemble, disassemble and dismantle. We also make adjustable a-frame gantry crane for clients who require more unique lifting capabilities.

Features of Small A Frame Gantry Crane

• Lifting capacity: 250kg 500kg 1000kg 1500kg 2000kg 3000kg 5000kg

• Loading weight: 500pound, 1000lbs, 2000lbs, 3000lbs, 4000lbs, 5000lbs, 6000lbs, 8000lbs

• Lifting weight / SWL: 1/2 ton, 0.5t 1t 2t 3t 5t 7.5t 8t 10t 12t 15t 16t 20t

• Span(Width): 3m 4m 5m 6m 8m 10m 12m 15m. Small steel a frame gantry crane with larger span is available.

• Lift Height: 3~12m

• All steel construction for 4 wheels a frame gantry crane.

• Lightweight, light duty

• Movable on heavy duty castor wheels with brake

• Complies with CE Standards

• Usage: boat lifting, injection mold lifting, loading & unloading trucks

• Hot dip galvanized carbon steel or Stainless steel or Light weight aluminum alloy a frame gantry crane for clean room application

• Applicable industries: Small portable mobile a frame gantry crane for workshops, warehouses, automotive industry, metalworking, sanitary, assembly lines, machinery manufacturing plant, food & beverage factory, mechanics, logistics, machine tools, energy & mining, oil & gas, renewable energy, die casting, production, plastic industry and so on.

The mobile a frame gantry crane with electric hoist realize the mechanization of hoisting operation, which greatly reduce manpower and production costs, improve work efficiency. The light weight portable a frame gantry crane is ideal machine to handle granite and marble blocks, stones, steel coils, slabs, heavy rolls, plastic injection mold, car engines, plates, metal workpieces, auto parts, mechanical parts, steel sheet, containers, rod bars, pipes, tanks, etc.

Options Available

• Fixed height A frame gantry crane or telescopic type height adjustable gantry crane can be built to order

• Electric chain hoist or wire rope hoist (Motorized or manual)

• Manual or electric trolley (Hoist travel)

• Electric driven motorized crane travel (Motor rubber wheels)

• Mobile portable hydraulic a frame gantry crane (hydraulic lift gantry)

• SEW Motor, Schneider Electric

• Custom paint color

• Site installation available, and detachable for easy transportation

3 Ton Electric Motor Wheel A Frame Gantry Crane

1/2 Ton Manual Type Small A Frame Gantry Crane

10 Ton Height Adjustable A Frame Gantry Crane

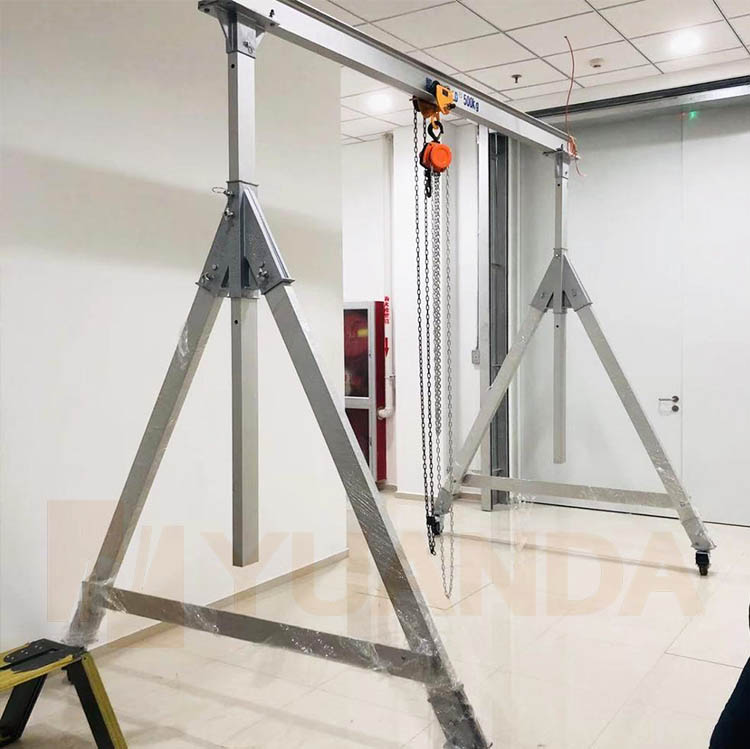

1000Kg Light Weight Aluminum A Frame Gantry Crane-A Frame Porta Gantry

10 Ton Portable Workshop A Frame Gantry Crane with Electric Chain Hoist

5 Ton Small Portable A Frame Gantry Crane in Workshop

2 Ton Small Rail Mounted A Frame Gantry Crane in a Laboratory

Different Types of Small Portable A Frame Gantry Crane

These are the typical options of mini a frame gantry cranes available on the market today. You can order any combination of these cranes according to your needs. There are many different models of moveable a frame gantry cranes on rubber wheels, but they usually correspond to these configurations below.

It can be designed into single beam, double beam A frame gantry crane, foldable gantry crane and telescoping gantry crane regarding to the steel structure; According to the loading capacity, there are 2 ton portable A frame gantry crane, 3 ton A frame gantry crane and 5 ton portable A frame gantry crane, which are hot sale models. Employed at different working sites, there are mechanical workshop A frame gantry crane, indoor A frame gantry crane, warehouse gantry crane and so on for your need. With different travelling mode, there are hand operated manual A frame gantry crane, electric walking gantry crane, rubber wheel A frame gantry crane. As per different size, there are mini a frame gantry crane, heavy duty a frame gantry crane, light duty gantry crane and a frame porta gantry system.

Small A frame gantry cranes are incredibly versatile and valuable for many industries. They are widely used for workshop, storage, warehouse, auto repair shops, vessels, laboratory, etc. Their weight capacities can range from 500 lbs to 15 tons. There is a crane to meet every need. If you need portable a frame gantry crane price or just have questions, feel free to give us a call or contact us through our website. We are ready to help.

Portable A Frame Gantry Crane Manufacturer in China

If you’re in need of a lifting solution that can be easily transported and used in a variety of settings, an electric mobile a frame gantry crane is an excellent choice. Known as a leading manufacturer and supplier, we have a board range of portable mobile A frame hoist cranes in China. We specialize in designing and manufacturing high-quality mobile gantry cranes that are safe, efficient, and cost-effective. If you want to buy a mobile a frame gantry crane, contact us today to learn more about how we can help improve your lifting operations.
