Portable Gantry Crane
1 Ton Gantry Crane
1 ton small mobile gantry crane has the characteristics of simple structure, light weight, portable, convenient operation, large working space, wide application scope, low investment and quick start-up. Mobile gantry crane is applicable to mold manufacturing and installation, auto repair factory, mine, construction site and lifting occasions in your workshop.
Span(Width): 3m 4m 5m 6m 8m 10m 12m 15m 25ft
Lift Height: 2~12m
Lifting Capacity: 1 ton (2000 lbs)
Movement mode: Hand push, trackless or electric travel by motorized wheels
Casters: Polyurethane swivel casters / swivel locks
Control method: Pendant wire control or wireless remote control
Working Duty: A3, A4
Ambient Temperature:-20~40℃
1 ton gantry crane price: $2000~$5,000
1 Ton Gantry Crane
1 Ton Small Gantry Crane Design
1 ton gantry crane is designed to maximize material handling requirements in light-duty lifting applications: loading and unloading in your workshop, maintaining equipment and transporting materials. Lightweight, portable, fixed or adjustable height design allows for easy mobility. Includes four swivel casters with brake. The 1 ton light duty gantry crane usually be used together with electric hoist, manual chain block, monorail trolley, realizing crane mechanization, which can reduce the human power, production costs, and improve work efficiency.
PT1 Fixed Height Gantry Crane PT2 Adjustable Height Gantry Crane PT3 Motorized Gantry Crane
LT1 Fixed Height Aluminum Gantry Crane LT2 Adjustable Height LT3 Adjustable Height and Span Crane
LT4 Light Aluminum Gantry Crane LT5 Foldable Aluminum Gantry Crane LT6 Heavy Duty Aluminum Crane
1 Ton A Frame Gantry Crane Specification & Features
Loading weight: 1000kg 1000lbs 2000lbs 2000 pound
SWL: 1t
All steel construction.
Lightweight, light duty
Movable on heavy duty castor wheels with brake
Complies with CE Standards
1 Ton Portable Gantry Crane Options Available
Fixed height gantry crane or telescopic type height adjustable gantry crane can be built to order
Adjustable height and span
Electric chain hoist or wire rope hoist (Motorized or manual)
Manual or electric trolley (Hoist travel)
Electric driven motorized crane travel (Motor rubber wheels) or on floor ground track rails(rail mounted)
V-Groove Track
Custom paint color or hot dip galvanized or stainless steel or light aluminum alloy
Site installation available
1 Ton Hand Push Small Portable Gantry Crane
1 Ton Mobile A Frame Workshop Portal Gantry Crane
1 Ton Height Adjustable Steel Gantry Crane

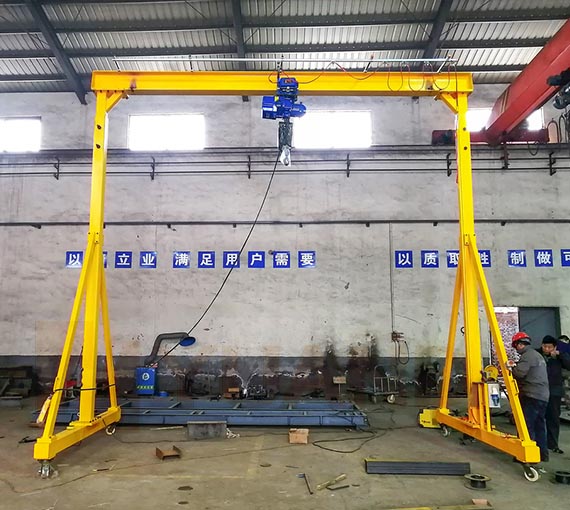

1 Ton Light Weight Electric Hoist Gantry Crane on Caster Wheels
1 Ton Aluminum Alloy Gantry Crane
Technical Parameter of 1 Ton Single Girder Gantry Crane
Item | Portable Gantry Crane | |||||
Capacity(Ton) | 0.5 ton | 1 ton | 2 ton | 3 ton | 5 ton | 10 ton |
Span(m) | 2-12m (as you require) | |||||
Lifting height(m) | 1-10m (as you require) | |||||
Total height(m) | 1-15m (as you require) | |||||
Wheel | 4 | |||||
Lifting equipment | Manual / Electric Chain hoist or wire rope hoist | |||||
Power voltage | 380V 50HZ 3P or customized | |||||
1 Ton Gantry Crane Manufacturer in China
YUANDA is a leading China manufacturer of 1 ton portal gantry cranes, supplying various of crane and hoist lifting systems to our distributors and directly to end users both in China and overseas. We ship all over the world including the United States, Canada, Indonesia, Mexico, Chile, Peru, UAE, Middle East, the United Kingdom, EU, and more. All our portable gantry cranes are CE certified.
1 Ton gantry crane design drawings can also be provided by our technical team. Contact us now for 1 ton gantry crane price.
