Single Girder Gantry Crane

Single Girder Gantry Crane Design

The single girder gantry crane is also called electric single beam gantry crane, or electric hoist gantry crane. It is a portal crane mechanism that performs the work of lifting the load and moving along rails installed on concrete foundations in the workshops or outdoors.

Usually, it equips with CD MD electric wire rope hoist as lifting mechanism, sometimes equips with electric chain hoist, according the working conditions. The electric hoist hangs under the main beam and travels along with it. The main girder of single girder gantry crane is supported by one or two legs which are connected with end beams, so the whole gantry crane system can travel along the steel track rails by the motorized end carriages.

For top-end customers, European type single girder gantry crane is suggested, which is used together with European type electric hoist. Lifting, cross & long traveling are all of variable speed by Schneider VFD, assuring the precision of the crane movement. It is of Europe style design with top configurations, such as German Abm brand lifting geared motors, German KPM brand traveling geared motors (SEW also optional), Schneider brand VFD, Schneider brand electricals, Taiwan Telecrane brand remote control, etc.

Structure of the single girder workshop gantry crane looks like a door frame, which has a main girder above ground. With legs and travelling carriage on the ground, the whole equipment can achieve motion in both directions. With hoist unit, single girder gantry crane can achieve loading and unloading of the cargo. It can also be designed with cantilever arm outside span, according to client's lifting requirements and application environment, as an option for bigger working area.

Single Girder Portal Gantry Crane Structure

Our single beam gantry crane is fabricated with sturdy structure, mainly composed of main beam, end beam, supporting legs, end carriages, hoist trolley and electric control system.

Gantry Frame

For metal structure of the gantry crane, various frame designs are available such as A type, U type and L type so as to handle different materials. We keep optimizing the equipment structure to provide stable and durable performance. Main beam and ground end beam will have sandblast derusting and painted with zinc rich epoxy primer. They are cut by plasma numerical control cutting machine. The butt weld of tension flange shall undergo ultrasonic or x-ray flaw detection as specified. During machining process, we closely inspect every part to ensure quality products.

Electric Hoist Trolley

Hoist trolley is the most fundamental part of gantry crane equipment. We have CD1, MD1 type wire rope hoist, electric winch, chain hoist for your choice, of which the electric wire rope hoist is the most commonly used type as it can lift with a variety of capacities. However, chain hoist is a more cost-efficient solution for small lifting needs, widely used in workstation, factories, mines, harbours, warehouse and workshop. We have manual and electric chain hoists for you to choose.

Crane Running Mechanism

For crane running mechanism, we provide both track and trackless operations to fit different applications and environments. Gantry crane, especially for outdoor uses, is equipped with many protection devices such as overload limiter, wind proof device, anti-collision device and rain cover in order to protect the electrical devices and other components of the crane.

Various Types of Single Girder Gantry Crane

Single girder gantry crane is widely used to lift and transport heavy items and it can be designed and produced with different configurations according to different work occasions and needs. There are different types of singe girder gantry crane: Rubber tyred gantry crane, Rail mounted gantry crane, European type gantry crane, Semi gantry crane, Truss type gantry crane, L type gantry crane, Portable gantry crane and so on.

10 Ton Single Girder Gantry Crane Specification & Features

Lift capacity: 250kg 500kg 1000kg 1500kg 2000kg 3000kg 5000kg

Heavy loading weight: 500pound, 1000lbs, 2000lbs,3000lbs,5000lbs,6000lbs,8000lbs

SWL: 0.5t 1t 2t 3t 5t 7.5t 8t 10t 12t 15t 16t 20t 25t

Simple structure, easy installation

Good usability and high performance efficiently

Variable Frequency Drives (VFDs): Enables smooth acceleration and deceleration, stepless control, reducing wear and tear on components while optimizing energy consumption.

Standardized, generalized and serialized parts.

Grab bucket, container spreader, and other special lifting devices can be equipped to do special material handling work.

Three control modes for your selection: cabin control, remote control, floor pendent control.

Easy installation and maintenance

Power supply cable reel drum

Heavy duty trolley festoon system

High quality copper/aluminum wire cable conductor bar

Prohibited to use in the flammable, explosive, corrosive media environment

20 Ton Single Girder Gantry Crane Safety Feature

Overload protection devices is equipped which will give a sharp alarm warning when overloads happen.

Limit switches is used to prevent over lifting or lowering of the crane hook.

High quality polyurethane buffer is used to ensure a long time working life.

Low voltage protection is used in case of the unstable voltage supply.

Emergency stop button is installed to brake the equipment when emergency happens.

Current overload protection system and others, etc.

Phase sequence protection.

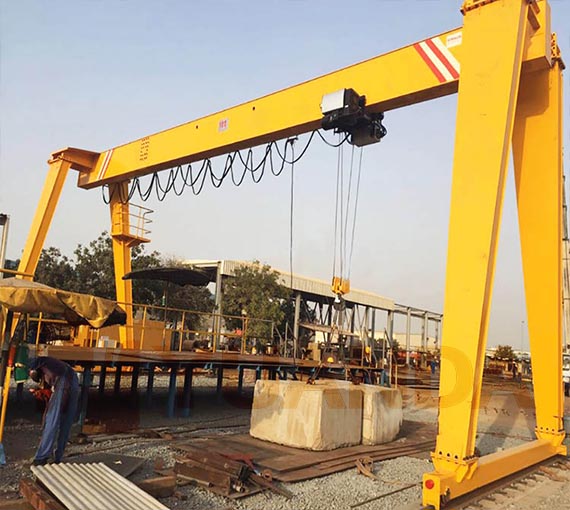

20 Ton Single Girder Electric Hoist Gantry Crane with Cantilever

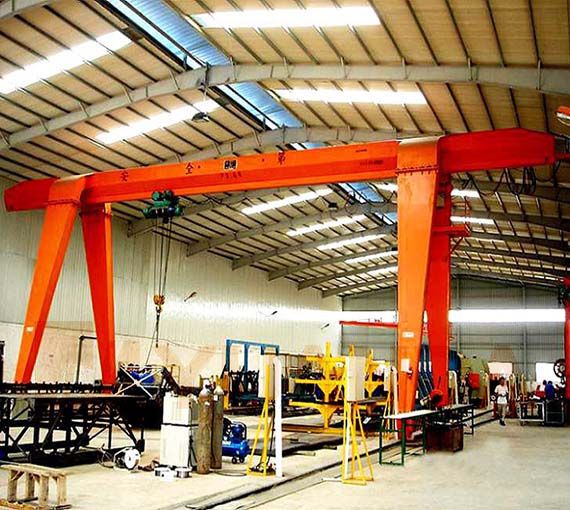

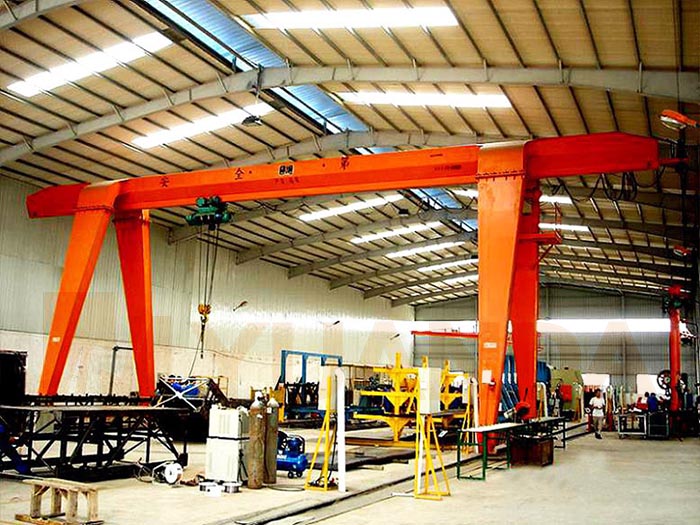

10 Ton Workshop A Frame Single Girder Gantry Crane for Marble Granite

10 Ton Europe Type Rail Mounted Single Girder Gantry Crane

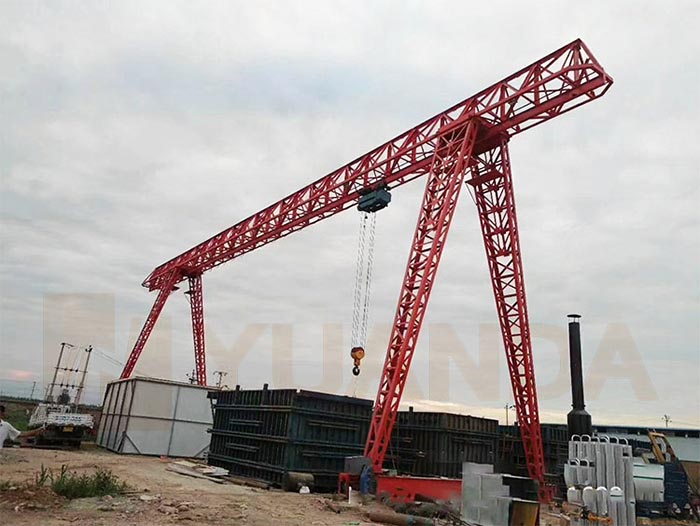

Truss Type Outdoor Single Girder Gantry Crane 10 Ton for Sale

L Type Leg 5T Single Girder Hook Gantry Crane for Sale

Single Girder Semi Gantry Crane 5 Ton

3 ton Portable Mobile Single Girder Gantry Crane with Electric Hoist

20 Ton Industrial Rubber Tyred Single Girder Gantry Crane

Application of Single Girder Workshop Gantry Crane

With powerful loading capacity, good performance, and high efficiency, the single beam gantry crane is widely applied in the port, dock, quay, shipyards, container railyards, railway freight station, outdoors, construction site, hydro-power station, precast concrete industry, construction projects, marble plant, steel mills, assembly factory, machining & mechanical workshop, warehouse, etc. The items the crane lifted including the rod, bar, building materials, steel structure, iron, ingots, metal, marble, granite and garbage, etc. With this useful tool, it can greatly enhance your production efficiency and benefit your business.

How to Select The Right Type of Single Girder Gantry Crane?

The gantry crane we produce is under strict quality control and inspection by our specialists in order to ensure a safe and efficient operation in your workplaces. The hot sale series is 5 ton gantry crane, 10 ton gantry crane and 20 ton gantry crane. If you are unsure as to which type of gantry crane is right for you, the following factors to consider when selecting your crane, will help you to define the right crane you need.

Rated load capacity?

Span of the crane?

Lifting height?

Cantilever of single girder gantry crane?

Type of load or material?

Crane working environment?

How many hours does the crane work per day?(Work duty)

Electric Power supply: 3 phase 380V 50Hz?

Other requirements?

Technical Parameter of Single Girder Mobile Gantry Crane

Single Girder Electric Hoist Gantry Crane Manufacturer in China

YUANDA is a leading single girder travelling gantry crane manufacturer in China, supplying various of lifting systems to our distributors and directly to end users both in China and overseas. We ship all over the world including the United States, Canada, Indonesia, Mexico, Chile, Peru, UAE, Middle East, the United Kingdom, EU, and more. All our single girder gantry cranes are CE certified.

Single girder gantry crane design drawings can also be provided by our technical team. Contact us now for singel girder gantry crane price.
