Gantry Crane
10 Ton Gantry Crane
Gantry crane 10 ton is a very important lifting machine for your workshop. It is commonly used to lift, move and transport loads in the manufacturing, installation, assembly, and maintenance industry.
Gantry steel frame: Single or double beam, box or truss girder
Supporting columns type: Full a frame type or single leg
Mobility: Fixed, travelling, portable, mobile
Span(Width): 6m 8m 10m 12m 15m 20m 36m 50ft
Lift Height: 6m 9m 12m
Lifting Capacity: 10 ton
Models: MH, NMH, BMH, MG, MDU, MZ, RMG
Left/right cantilever: 0~6m or as require
Movement mode: Hand push, trackless, rubber tired, travel by motorized wheels or rail mounted
Supplier type: China manufacturer
10 ton gantry crane price: $15,000~$30,000
10 Ton Gantry Crane
10 Ton Gantry Crane For Sale
10 ton gantry crane design is one of the most popular and universal crane. It is always used together with MD, CD type or europe type electric wire rope hoist. It is composed of main box girder beam, a frame support legs, crane travelling mechanism, hoist and trolley, electric system and so on. The entire structure is made of steel. Both ground bottom end beam trucks are equipped with electric powered motorized wheels, which allow these gantry cranes to travel along rail tracks mounted on the ground floor. The main beam can be extended at both ends so that more working areas can be covered, also known as gantry crane with cantilever. Hangers under hoist include hooks, grabs, and electromagnetic chucks which can satisfy the using requirements of different occasions. The operating mode can choose the driver's cab operation or remote control operation.
The 10t capacity can meet most of the working conditions, and it has many kinds of crane types to choose, including mobile portable gantry crane, rail mounted gantry crane, light duty single girder hoist gantry crane, heavy duty double girder gantry crane, and single or double girder semi-gantry crane. All these cranes can be used indoor and outdoor, not limited by the place, widely used in workshops, warehouse, factories, port and yard for materials handling.
10 Ton Single Girder Gantry Crane Specification & Features
Heavy loading weight: 10t 10 tonne
Simple structure, easy installation
Good usability and high performance efficiently
Low and easy maintenance
Standardized, generalized and serialized parts.
Grab bucket, container spreader, and other special lifting devices can be equipped to do special material handling work.
Casters: Polyurethane Swivel Caster wheels / Swivel Locks
Control method: Floor pendant wire control or wireless remote control, cab control
Electrical system: cable reel, self-contained diesel generator set, bare copper slip line
Working Duty: A3, A4, A5, A6
Rail track type: P43 P50 QU70 QU80 QU100
Ambient Temperature:-20~40℃
Easy installation and maintenance
10 Ton Rail Mounted Gantry Crane Safety Features
Overload protection devices is equipped which will give a sharp alarm warning when overloads happen.
Limit switches is used to prevent over lifting or lowering of the crane hook.
High quality polyurethane buffer is used to ensure a long time working life.
Low voltage protection is used in case of the unstable voltage supply.
Emergency stop button is installed to brake the equipment when emergency happens.
Current overload protection system and others, etc.
Phase sequence protection.
10 Ton Gantry Crane Structure
Our 10 ton gantry crane is fabricated with sturdy structure, mainly composed of main beam, end beam, supporting legs, end carriages, hoist trolley and electric control system.
Gantry Frame
For metal structure of the gantry crane, various frame designs are available such as A type, U type and L type so as to handle different materials. We keep optimizing the equipment structure to provide stable and durable performance. Main beam and ground end beam will have sandblast derusting and painted with zinc rich epoxy primer. They are cut by plasma numerical control cutting machine. The butt weld of tension flange shall undergo ultrasonic or x-ray flaw detection as specified. During machining process, we closely inspect every part to ensure quality products.
Electric Hoist Trolley
Hoist trolley is the most fundamental part of gantry crane equipment. We have CD1, MD1 type wire rope hoist, electric winch, chain hoist for your choice, of which the electric wire rope hoist is the most commonly used type as it can lift with a variety of capacities. However, chain hoist is a more cost-efficient solution for small lifting needs, widely used in workstation, factories, mines, harbours, warehouse and workshop. We have manual and electric chain hoists for you to choose.
Crane Running Mechanism
For crane running mechanism, we provide both track and trackless operations to fit different applications and environments. Gantry crane, especially for outdoor uses, is equipped with many protection devices such as overload limiter, wind proof device, anti-collision device and rain cover in order to protect the electrical devices and other components of the crane.
10 Ton Electric Hoist Single Girder Gantry Crane for Sale
10 Ton Double Girder Gantry Crane for Sale
Truss Girder Gantry Crane 10 Ton for Sale
10 Ton Gantry Crane with Cantilever
Semi Gantry Crane 10 Ton
10 ton Portable Mobile Gantry Crane with Electric Hoist

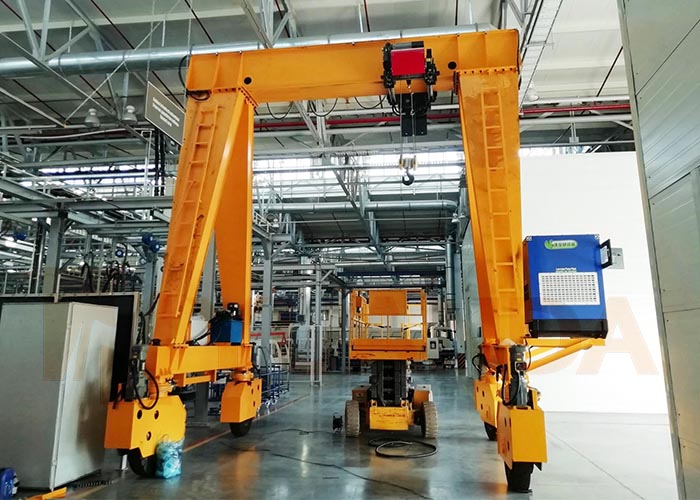

10 Ton Industrial Rubber Tyred Gantry Crane
Technical Parameter of 10 Ton Single Girder Gantry Crane
Capacity | t | 1, 2, 3 | 5 | 10 | 16 | 20 |
Span | S(m) | 8~35 | 8~35 | 8~35 | 8~35 | 8~35 |
Lifting height | m | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 |
Lifting speed | m/min | 8（0.8/8） | 8（0.8/8） | 7（0.7/7） | 3.5（0.35/3.5） | 3.3（0.33/3.3） |
Trolley speed | m/min | 20(30) | 20(30) | 20(30) | 18 | 14 |
Crane speed | m/min | 20(30) | 20(30) | 20(30) | 20(30) | 20(30) |
Work duty | A3~A4 | A3~A4 | A3~A4 | A3~A4 | A3~A4 | |
Track type | P24 | P24 P30 | P30 P38 | P38 | P38 P43 |
Application of 10 Ton Harbor Freight Gantry Crane
With powerful loading capacity, good performance, and high efficiency, the double beam gantry crane is widely applied in the port, dock, quay, shipyards, container railyards, railway freight station, outdoors, construction site, hydro-power station, precast concrete industry, construction projects, marble plant, steel mills, assembly factory, machining & mechanical workshop, warehouse, etc. The items the crane lifted including the rod, bar, building materials, steel structure, iron, ingots, metal, marble, granite and garbage, etc. With this useful tool, it can greatly enhance your production efficiency and benefit your business.
How to Select The Right Type of 10 Ton Gantry Crane?
The gantry crane we produce is under strict quality control and inspection by our specialists in order to ensure a safe and efficient operation in your workplaces. If you are unsure as to which type of gantry crane is right for you, the following factors to consider when selecting your crane, will help you to define the right crane you need.
Rated load capacity
Span of the crane (Feet)
Lifting height
Cantilever of single girder gantry crane
Type of load or material
Crane working environment
How many hours does the crane work per day?(Work duty)
Electric Power supply: 3 phase 380V 50Hz?
Other requirements
10 Ton Mobile Gantry Crane Manufacturer in China
YUANDA is a leading 10 ton workshop gantry crane manufacturer in China, supplying various of cranes and hoists to our distributors and directly to end users both in China and overseas. We ship all over the world including the United States, Canada, Indonesia, Mexico, Chile, Peru, UAE, Middle East, the United Kingdom, EU, and more.
10 Ton gantry crane design drawings can also be provided by our technical team. Contact us now for 10 ton gantry crane price.
