5 Ton Jib Crane for Sale

5 Ton Jib Crane Design

5 Ton industrial jib crane can be easily operated and used for transporting heavy materials in an efficient manner. It is well known for its abrasion resistance, high loading bearing capacity, longevity and tensile strength. 5 Ton base plate mounted jib cranes are highly maneuverable, which allows for faster and more efficient material handling. This increased productivity can help reduce project timelines and increase profitability. 5 Ton foundation jib crane requires a concrete foundation for adequate support and is anchored to the foundation structure by anchor bolts. Electric lift jib cranes are designed with safety in mind and come equipped with a variety of safety features such as overload protection, emergency stop buttons, and anti-collision limit switch. Additionally, jib cranes can be operated remotely, which reduces the risk of injury to operators.

Features of 5 Ton Jib Crane with Electric Hoist

• Rated lift capacity: 5000kg 6000kg 5ton(tonne/tn/metric ton/MT)

• Heavy loading weight: 10000lbs, 12000lbs

• SWL/WLL: 5t 7.5t 10000 pounds

• Crane feature: Heavy duty jib crane

• Swivel angle: 180° 270° 360° degree rotating jib cranes

• Height & Span: 10ft. 12ft. 15ft. 20ft. 25ft. 30ft. 35ft. 25’, 30’, 35’

• Height Under Boom (HUB):5ft 7ft 10ft 12 ft. 2 3 4 5 6 8 9 10 m meters

• Overall Height: 5ft 7ft 10ft 13 ft 15ft 20ft 2m 3m 4m 5m 6m 8m 9m 10m

• Foundation Width: 2ft 4ft 7ft.

• Crane color: Safety Yellow

• Axial Load: 5 tone

• Foundation Size: 9’ x 9’ x 4’

• Coverage: 360° circular rotation for 5 ton cantilever swing arm jib crane

• Standards: FEM; ASME B30.20; ASME B30.9; ASME BTH-1

• Country of Origin: China

• I beam construction

• Heavy duty gusset, base plate mounted

• Foundations are required for 5t heavy duty jib crane

• Anchored bolts must be set in wet concrete ground

• Emergency Limit Switch

• Festoon cable

• Adjustable collar style rotation stops

• Top entry collector ring & mounting plate

• Control: Pendant control penal, wire control or wireless radio remote control jib crane

• IP55 IP65 IP56 Protection for motors & panels

• Applicable industries: 5 Ton jib crane for workshops, building material shops, machinery shops, manufacturing plant, factory, warehouse, construction works , energy & mining, indoor and outdoor.

All YUANDA Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.

Heavy Duty 5 Ton Freestanding Jib Crane for Sale

Heavy Duty 5 Ton Stationary Fixed Floor Mounted Electric Hoist Jib Crane in Workshop

5 Ton Fixed Column Mounted Cantilever Slewing Pillar Jib Crane with Electric Hoist

5 Ton 360 Degree Slewing Electric Lifting Pillar Type Cantilever Jib Crane for Sale

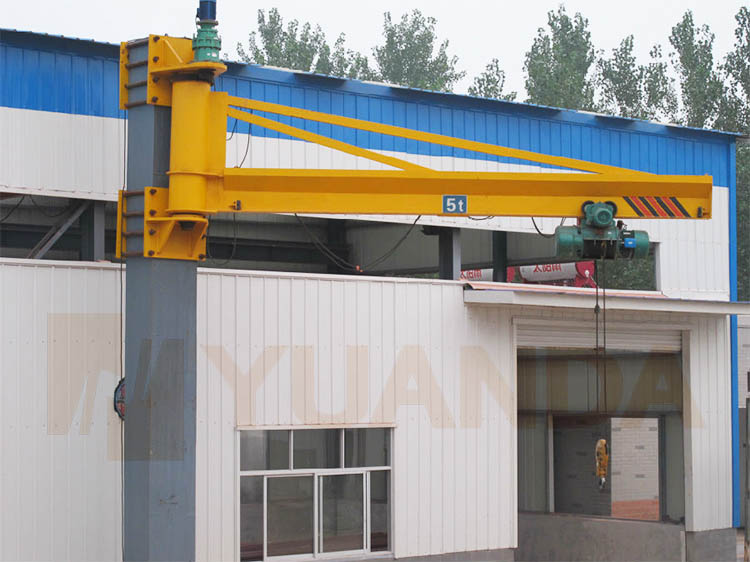

5 Ton Cantilever Wall Mounted Jib Crane with Electric Hoist

5 Ton Motorized Small Mini Mobile Moveable Portable Jib Crane with Wheels

5 Ton Wall Travelling Jib Crane

Different Types of 5 Ton Swing Jib Cranes

The different types of 5 ton electric jib crane systems that are available according to each system’s range of application, advantages and disadvantages, and available design options are as follow:-

Freestanding Jib Cranes

5 Ton free standing jib cranes are versatile and efficient material handling solutions that provide the flexibility of 360-degree rotation and a wide range of motion. These 5 ton post mounted jib cranes are self-supporting, making them ideal for applications where space is limited.

Floor Mounted Jib Crane

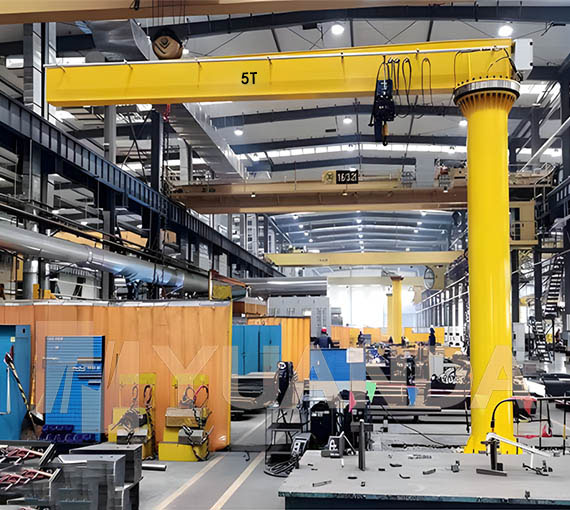

5 Ton floor mounted jib crane, also called 5 ton pillar mounted jib crane or pole mounted jib crane, is the most popular type of jib crane. A self-supporting jib crane with a vertical mast mounted on a concrete foundation is known as a fixed floor mounted jib crane. It is a heavy-duty, permanent solution for lifting items weighing up to 5 tons in the workplace. The fixed 5 ton workshop jib crane is available in three varieties: Bolt-type base plate mounted foundation, insert mount foundation, or sleeve insert mounted foundation jib crane.

Marine Jib Crane

Also known as ship nautical jib cranes or 5 ton boat lift jib crane. These cranes are specially designed for lifting ships and boats out of water. Equipped with the maximum performance, the 5 ton marine jib cranes are designed to work in extreme marine environments, with anti-corrosion paint and stainless steel trolleys. Also known as offshore jib cranes, they can optionally include a steel frame and slings, for lifting the boats.

Portable Jib Crane

The 5 ton portable jib crane has movable foundation with wheels, which helps crane set in the place that you need with ease. It is also named as small 5 ton mobile jib crane, is a special travelling jib crane which can move with motorized wheels.

Moreover, 5 ton jib crane for outdoor or specific application, can be made as hot dip galvanized jib crane, stainless steel jib crane or explosion proof jib crane as per request. We can help you to make the right selection of the 5 ton electric hoist jib crane for your application. Get in touch with our expert team now.

Technical Parameters of 5 Ton Jib Crane

*5 ton workstation jib crane specifications may be subject to change without notice

5 Ton Jib Crane Accessories, Components and Jib Crane Parts

A jib crane is made up of several key components that work together to lift and move heavy loads. The main components of a 5 ton cantilever jib crane include the horizontal jib boom, the mast pillar or support column/pole, the bearing system, the hoist, and the controls.

The jib crane horizontal boom is the arm of the crane that extends from the mast and supports the hoist and the load to be lifted. It can rotate horizontally up to 360 degrees, providing a wide range of motion for lifting and moving heavy objects.

The mast or support column of the 5 ton column mounted jib crane is the vertical tube column structure that supports the boom and the bearing system. It is typically bolted or welded to a foundation or mounted on ground floor.

The bearing system is what allows the jib to rotate horizontally. It consists of a series of bearings or bushings that are located at the top of the mast pillar. The bearing system is designed to provide smooth and precise motorized rotation of the jib, allowing the crane operator to position the load with a high degree of accuracy.

The jib crane electric hoist is the key lifting mechanism that is used to raise and lower the load. It can be electric chain hoist, wire rope hoist or manual chain block, powered by electricity, air, or hydraulics, and typically consists of a motor, a gearbox, and a lifting mechanism such as a chain or wire rope. Hoist brand: Our own brand YUANDA or international top brand such as: Demag, Abus, Kito, KONE, YALE, PLANET, Gorbel, etc.

Finally, the controls are the devices that are used to operate the crane. They can include push-button pendant controls, remote control devices, or automated systems (PLC + frequency inverter)that can be programmed to lift and move loads with a high degree of precision.

Other spare parts of the harga hoist jib crane 5 ton includes: Jib crane slew motor, reducer, bearing, gearbox, festoon system, etc.

5 Ton Jib Crane Application

A 5 ton pedestal slewing jib crane is a versatile and efficient lifting machine designed to handle loads of up to 5 tons within various industrial settings. Its horizontal jib arm enables precise and controlled material movement, the 5 ton swivel jib crane comes in several configurations to suit diverse applications.

Applications of 5 Ton Pillar Jib Cranes:

Workshop and Manufacturing:

– Lifting and moving materials in a workshop, warehouse or manufacturing facility.

– Efficient for tasks such as assembly, welding, and machining.

Construction Sites:

– Offers efficient lifting solutions outdoor for construction projects.

– Facilitates the movement of construction materials and equipment with lower cost.

Maintenance and Repair:

– Lifting and positioning heavy equipment or components during maintenance tasks.

– Enables technicians to work on machinery with precision.

Warehousing:

– Optimizes space utilization in warehouses for lifting and moving goods on/off the shelf.

– Enhances efficiency in storage and retrieval operations during daily work.

Loading Docks:

– Loading and unloading goods from trucks, vessels, boats and containers.

– Provides flexibility in positioning heavy loads for efficient logistics.

5 Ton Jib Crane Manufacturer in China

As a leading jib crane supplier in China, we supply the 5 ton jib crane and exported to many countries including: United States, Canada, Saudi Arabia, Australia, European, Indonesia, Mexico, Chile, Peru, UAE, Malaysia, Middle East, the United Kingdom, EU, and more. All our jib cranes are CE certified. No matter what type of 5 ton jib crane you need for your material handling tasks, we are ready to provide custom options to suit clients’ specific requirements. And we also offer jib crane installation, maintenance, training service for our clients.

Benefits from high efficiency of the fixed floor jib crane, the work efficiency and productivity can be greatly improved. If you need to buy 5 ton jib crane for your workshop, please don’t hesitate to contact us. 5 ton jib crane for sale in stock now, 5 ton jib crane drawings or jib crane design calculation can also be provided by our technical team. Contact us now for 5 ton jib crane price.
