500kg Jib Crane for Sale

Design of Light Duty Freestanding 500Kg Jib Cranes

Light duty 500kg pillar base mounted jib cranes are economical, and ideal for processes that involve light assembly, welding, or any application where lifting capacity are low. 500 kg jib cranes, with manual or electric rotation in column or wall versions, are created to locally handle goods inside a plant, on a square or along with operating workstations. Designed also for use in difficult environmental conditions, 500kg floor mounted jib cranes become full operating machines if used and integrated into production centres, machine tools or work benches. They adopt standardised parts which make it possible to create completely standard configurations.

500kg workstation jib cranes provide excellent coverage in circular areas not efficiently served by a main crane. They’re ideal for supporting tool balancers, air balancers, hoists, vacuum lifters and welding wire feeders. Self-supporting 360-degree rotating jib crane mounts to floor using high strength anchor bolts and recommended foundation or existing floor depending on crane specifications. Mostly 500kg foundationless jib cranes can be bolted directly to existing floors without adding special foundations.

Features of 500KG Jib Crane for Sale

• Lift capacity: 500kg 250kg 0.5t 0.5ton(tonne/tn/metric ton/MT)

• Heavy loading weight: 500lbs, 1000lbs, 1500lbs

• SWL/WLL: 1/2ton 0.5t 0.25t 1000 pounds 500 pounds

• Crane feature: Light weight

• Rotation: 180° 270° 360°degree rotating jib cranes

• Swivel: Manual rotation, manual slewing or automatic

• Height & Span: 10ft. 12ft. 15ft. 20 ft. 25’

• Height Under Boom (HUB):5ft 6ft 7ft 10ft 12 ft. 2 3 4 5 6 8 9 10 m meters

• Overall Height: 5ft 7ft 10ft 13 ft 15ft 20ft 2m 3m 4m 5m 6m 8m 9m 10m

• Foundation Width: 2ft 4ft 7ft.

• Hoist & Trolley Allowance: 1000lbs

• Coverage: 360° circular rotation

• I beam construction, or Hollow section enclosed C rail channel profile or Lightweight aluminum enclosed track design, aluminum profile rails for jib arm/boom

• Heavy duty gusset & base plate, base plate thickness at anchor bolt: 1 inch

• Foundationless or Base mounted

• Anchored bolts must be set in wet concrete ground

• Festoon cable options include: entry collector / air swivel, cable / air hose, tagline kit, and wire rope trolleys

• Adjustable Collar Style Rotation Stops

• Bolt-On Rotation Stops

• Top Entry Collector Ring & Mounting Plate

• Bottom Entry Collector Ring

• Control: Pendant control or wireless radio remote control

• Standards: FEM; ASME B30.20; ASME B30.9; ASME BTH-1

Applicable industries: 500kg jib crane for workshops, building material shops, machinery repair shops, manufacturing plant, food & beverage factory, warehouse, workshop, construction works , energy & mining, indoor and outdoor.

All YUANDA Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.

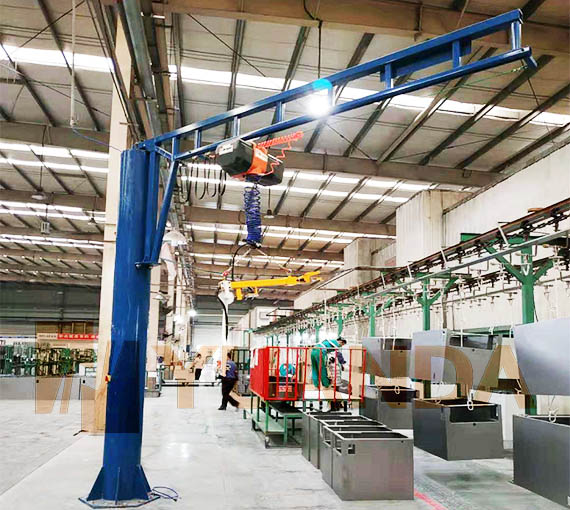

500kg Freestanding Under-Braced Workstation Jib Crane for Sale

500kg Light Weight Floor Mounted Free Standing Tie Rod Jib Crane

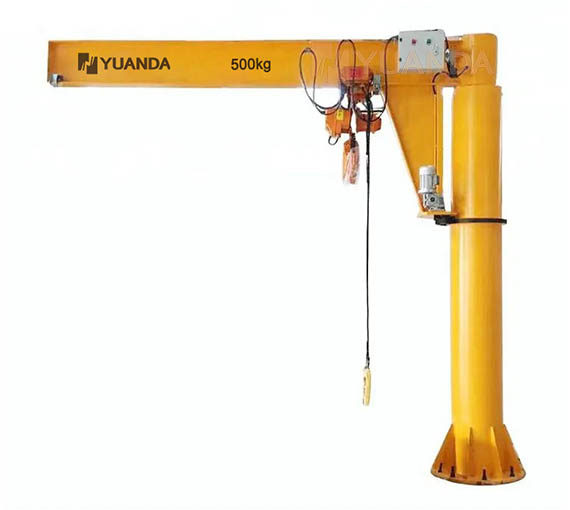

500kg Pillar Type Cantilever Swing Arm Jib Crane with Electric Hoist

1/2 Ton Fixed Column Mounted Slewing Jib Crane in Workshop

500kg Articulated Jib Crane for Sale

500kg Wall Mounted Cantilever Jib Crane with Electric Winch

500kg Small Mobile Cantilever Arm Portable Jib Crane With Wheels

500kg Wall Travelling Jib Crane

Different Types of 500KG Jib Cranes

The 1/2 ton jib crane has a similar use to that of a crane, it accompanies and facilitates the work of handlers. The 500kg pillar mounted jib crane is used for handling, lifting or hauling heavy loads. Jib cranes can be used for outdoor work sites, workshops, warehouses or for distribution terminals. The category of 500kg industrial jib cranes includes several types of models.

Freestanding Jib Crane

Foundationless 500Kg Lightweight Jib Cranes are the small capacity jib crane that does not require a pre-poured foundation. It can be bolted to an existing concrete surface and are great in open areas where they can serve several workstations. 500kg freestanding jib crane can be designed as freestanding Under-Braced jib crane, and freestanding Over-Braced jib crane, or named freestanding tie rod jib crane.

Column Mounted Jib Crane

500kg column mounted jib crane can be made as Over-Braced column jib crane and Under-Braced column mounted jib crane. When available headroom of the workshop is limited then an under braced jib crane is designed to maximum height of lift. Top braced jib crane would be used when the headroom is sufficient.

Wall Mounted Jib Crane

500kg wall mounted jib cranes are anchored to a wall or pillar and turn 270º via a mechanised bearing. They are great for use in bays and along the walls or side of shops for production lines. The featured designs of wall type jib cranes are cantilever wall jib crane, under-braced wall mounted jib crane, over braced wall mounted jib crane and tie rod support wall mounted jib cranes.

Articulating Jib Crane

As a type of ergonomical jib crane series, the 500kg articulating jib crane has an pivot arm that rotating along with the boom. This allows for easy movement and positioning of loads, even around corners or other obstacles. Articulated fold arm jib cranes can be mounted on walls, floors, ceilings, or bridges.

Portable Jib Crane

A 500kg mobile jib crane also known as a portable jib crane, a mobile cantilever crane, or a jib crane on wheels. It is ideal when pouring a foundation is out of the question or when several work areas require the help of a workshop jib crane. 500kg portable jib crane is designed with wheels, travelling by manual push, or with a solid steel base plate and open fork pockets for easy movement with a forklift or pallet jack.

What’s more, sorted by working sites, the 500kg pedestal slewing jib cranes can be designed as jib crane for workshop, 500kg outdoor jib crane, warehouse jib crane, offshore marine jib crane on ship, jib crane for marble production, and air operated suction cup jib crane for granite, glass, plywood, slab, metal sheet, etc. With different travelling mode, there are 500kg fixed stationary jib crane, 500kg wall bracket jib crane, wheeled jib crane, electric mini small telescopic counterbalance mobile floor jib crane. There are also some special type jib crane such as 500kg galvanized jib crane, 500kg stainless steel jib crane, 500kg explosion proof jib crane and 500kg height adjustable jib crane for special applications for your choice. We can work with you to design a solution that will fit your operational needs. Contact us today!

Technical Parameters of 500Kg Jib Crane

*500Kg capacity cantilever swing arm jib crane specifications may be subject to change without notice

500kg Jib Crane Accessories, Components and Jib Crane Parts

The Parts Of A Jib Crane

To increase your understanding of Jib Crane components here is a list and explanation of the most common parts of any jib crane lifting system. You can view the parts of a 500kg workstation jib crane here.

Floor Mounting Bases of Jib Crane

Also known as 500kg base plate mounted jib cranes, the floor-mounted electric hoist jib cranes bases can support the small jib crane without repouring concrete, so it is a fairly easy installation process. Different from the foundation jib crane, this makes these types of jib cranes removable and repositionable as your processes change in industrial facilities.

Jib Crane Boom Or Swing Arm

The Boom of a jib crane supports the power, hoist, festooning, and load of the crane. Typically they rotate at the mast (or wall if wall mounted) and can have an articulation point to allow handling of loads around obstacles and for freer, easier movement of loads. Power can be built into the boom or the jib crane could have festooning to supply power to the hoist. Light weight 500Kg Swing Jib Crane is with 'C' profile lifting Beam.

Mast

The Mast of Jib Cranes are usually floor supported with some models are capable of 360° rotation via a top and bottom bearing assembly. Masts of the 500kg pole mounted jib crane can be installed directly to most manufacturing facility floors, depending on size, load, and the floor itself. Not all jib cranes have masts, some are wall mounted to structural components of the building

Electrification / Power System

The amount of power and power availability dictate the electrification system needed for a lifting system. Festooning systems are used when necessary, insulated conductor bars, and power boxes bring power from the building to the lifting system.

Air Or Pneumatic Components of Hose Jib Crane

A cost-effective ergonomic lifting solution found in many receiving areas is an air-powered vacuum lifter system for your 500kg post mounted jib crane, which is also named as pneumatic jib crane. Users can quickly disassemble a palette of boxes by this pneumatic balancer in vacuum handling system. Powered air systems connecting to a vacuum lifter jib crane end effector allow for speedy handling of product.

Hoist

The hoist is what creates the lift in lifting systems by holding, raising, or lowering, the load using wire rope or chains. Hoists can be hand-powered, electrical powered, or with compressed air (pneumatic). Namely electric chain hoist, electric wire rope hoist, electric winch, manual chain hoist, manual chain block, pneumatic air hoist, intelligent lifting smart balancer hoist(with floating mode), vacuum lifter, zero gravity intelligent lift assist device and lever or ratchet hoist. Hoist brand: Our own brand YUANDA or international top brand such as: Demag, Abus, Kito, KONE, YALE, PLANET, Gorbel, etc.

Trolley

The trolley can run in three ways: pneumatically, hand-controlled, or electric powered. It is used to transfer the wire rope or chain, hook, and hoist along the length of the boom.

Wireless Remote Controls for Crane Hoist Operation

Some 500kg electric jib cranes will have controls for the hoist and end effector (most work-station jib cranes for tools do not have separate controls and simply “float” the tool or end effector with a balancer or a float system from smart intelligent hoist lifter). Controls can be mounted, battery powered remotes, or a hanging pendant variety. The controls operate the drive and hoist motors to control the hoist and the speed for precise load positioning. Most crane systems can be retrofitted with remote pendants (remote operation is a safer alternative in many situations).

Hook

The load is supported using a hook which connects to the hoist and to the end effector.

End Effectors

End effectors or tools, toolings, are the “grab” or hands of the jib crane. They can be as simple as cabling or strapping but end effectors are most effective when designed to lift your specific product. A custom end effector for your load lifting is safer, faster, and more precise.

Other jib crane spare parts include: jib crane motor, jib crane bearing, air balancer hoist, festoon system, tool balancer, gripper and so on.

500kg Jib Crane Application

500Kg electric hoist jib cranes have become a ubiquitous presence in warehouses and factories, but their usefulness extends far beyond the warehouse environment. With their proven reliability and ease of installation, JIB cranes has many applications that make them invaluable in a variety of industrial and commercial settings, such as workshop, warehouse, laboratory, etc. It is ideal for handling motor, wooden panel, carton, steel sheet, box, glass, granite, marble and so on.

From lifting and positioning large motors to remove massive loads from storage, the 500kg cantilever jib cranes have become the practical tool for many light duty lifting operations. Thanks to their easy installation, these swing arm jib cranes can be assembled quickly and without the need for additional support equipment.

In residential and commercial construction, 500kg swivel jib cranes can be used to construct building facades, cement bags, window frames, and other structures. By using a 500kg moveable jib crane with wheels, workers can move the crane to different areas of the building site, allowing them to hoist, move, and place large objects with ease. 500kg travelling jib cranes also offer access to tight spaces, allowing workers to place items where traditional crane operations wouldn’t be possible.

500KG Jib Crane Price

How to choose the jib crane and how much is the 1/2 ton jib crane price, is frequently asked by our clients. To choose and buy the right custom jib crane for your lifting application, you need to know:

1. The environment in which you want to install your 500kg jib crane with electric hoist. This will allow you to choose between a fixed jib crane, a mobile jib crane or a wall-mounted jib crane.

2. The load you will lift with the fixed floor jib crane. The weight will allow you to choose the necessary lifting capacity.

3. The maximum height and reach required to lift the load.

4. The type of jib crane you want: you can choose between an 500kg electric jib crane or a 500kg manual jib crane(hand operated jib crane). 500kg steel I beam jib crane or aluminum rail jib crane.

Our design team is at your disposal to meet your lifting needs for your light weight jib cranes. Our experts will draw up an estimate price according to your request. For further information, please contact our customer service online now.

500Kg Jib Crane Manufacturer in China

As a cantilever slewing jib crane China supplier and manufacturer, we have thousands of pre-engineered industrial jib cranes, all of which can be fully customized to meet the needs of your specific application. We have also exported to many countries including: Saudi Arabia, Australia, European, United States, Canada, Indonesia, Mexico, Chile, Peru, UAE, Malaysia, Middle East, the United Kingdom, EU, etc. All our jib cranes are CE certified.

500Kg pillar jib crane drawings or jib crane design calculation can also be provided by our technical team. Contact us now for 500kg jib crane price.
