Hydraulic Rock Breaker Tools For Hydraulic Hammer

Hydraulic Breaker Tools for Sale

A hydraulic breaker chisel, also known as a hydraulic breaker bit or tool, is a critical component in a hydraulic rock breaker boom system. It is the part of the hydraulic breaker that comes into direct contact with the material being broken, such as concrete, rocks, stone or other hard materials. The hydraulic breaker chisel tool is responsible for transmitting the impact force generated by the hydraulic rock breaker to the material, effectively breaking it into small pieces.

Hydraulic rock breaker hammers are widely used in construction, mining, quarrying, and demolition applications, where the need to break through hard materials is required. They are typically attached to excavators, backhoes, skid steers, rockbreakers, stationary pedestal rock breaker boom system or other hydraulic-powered machinery. The hydraulic hammer tool is a replaceable wear part. Therefore, it is crucial for the operator to understand the design, construction, types, and maintenance of hydraulic breaker tool to ensure efficient and safe operation.

YUANDA is a China manufacturer of hydraulic breaker tools. All our demolition tools for hydraulic breakers are manufactured with the best steel alloys, machining processes and heat treatment in order to obtain the highest resistance to impact, hardness and tenacity that the pointers require for demolition, quarrying, trenching and mining work.

Our range of tools for hydraulic hammers includes not only the standard types, always available in stock, such as the pyramid and chisel point, Moil, Flat, Blunt type, but also special pointers such as the conical, blunt (short-asphalt), large blunt, wide chisel, tamping pad, frost wedge, asphalt cutter, or diving tool depending on the application. We have hundreds of references of direct replacement pointers to different hydraulic hammers from different manufacturers.

Hydraulic Hammer Tool Features&Functions

Hammer tool bits material: 40Cr or 42CrMo

Dimension: Refer to the table below

Chisel type: Moil Point, Blunt Tool, Flat, Wedge

Mechanical Properties:

a.Surface Hardness HRC51± 3

b.Core Hardness HRC35± 3

c.Tensile strength(min) 1250N/mm²

d.Yield point (min) 950N/mm²

e.Elongation 10~14%

f.Reduction of Area 35~40%

j.Impact work 23~28 ft1b

k.Grain size 7.0~8.0

Hydraulic rock breaker hammer fittings: breaker chisel, rod pin, hammer bushing, etc

Hydraulic breaker tool diameter: 3" 4" 5" 6" 7" 8"

Rod diameter: 40mm 45mm 50mm 60mm 75mm 85mm 100mm 125mm 135mm 185mm

Rod weight: 10~130kg

Impact rate for rock breaker hydraulic hammer: 200bpm~800bpm

Transfer the impact energy from the piston to the rock, for maximum efficiency

High wear resistant behavior to keep the running cost of the breaker under control

Avoid damages on the main components of the hydraulic breaker

Heat-treated core surface

Optimum balance for longer wear life and crack prevention

Primary/Secondary breaking, hard rock removal, and demolition

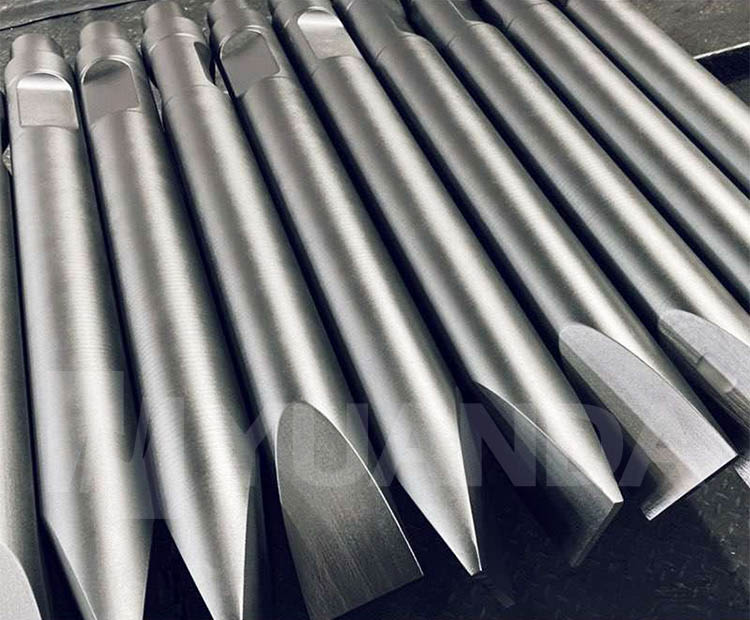

Hydraulic Rock Breaker Tools Wedge Type

Blunt Type Rock Breaker Tool Bits for Hydraulic Hammer

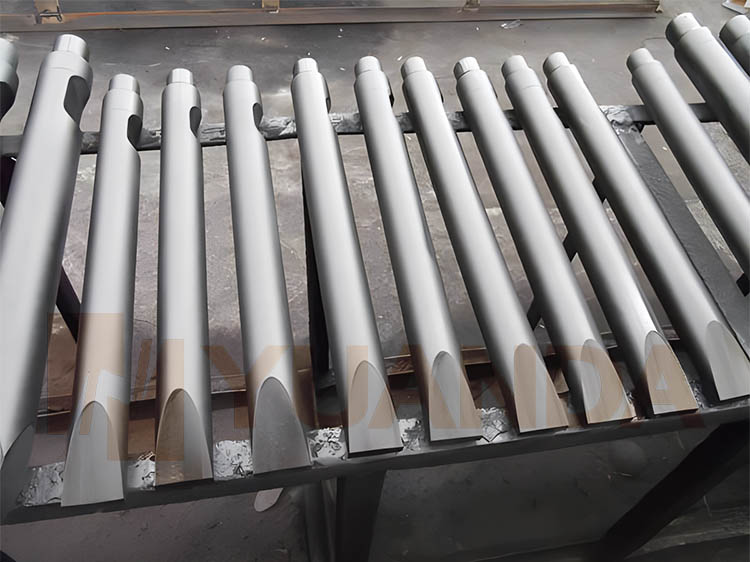

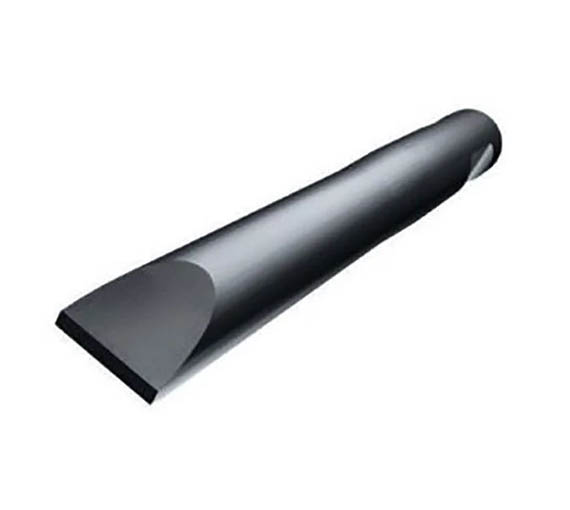

Chisel Tool For Hydraulic Rock Breaker

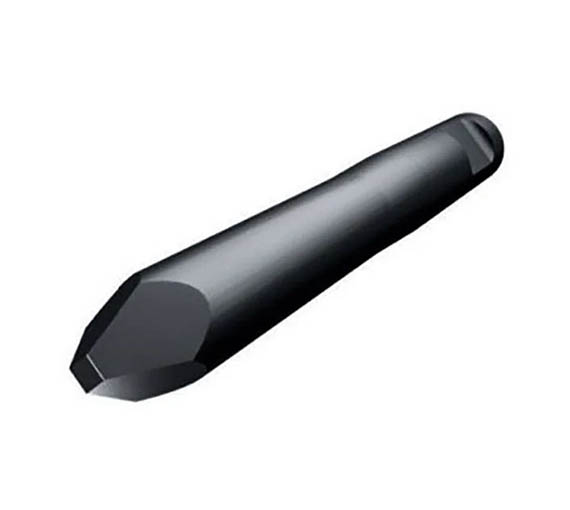

Moil Point Type Tool For Hydraulic Rock Breaker

Cone Type / Conical Type Working Tool For Hydraulic Rock Breaker

Technical Parameter of Working Tools For Hydraulic Breakers

Working Tools for Hydraulic Hammer Specifications

*Demolition tools for hydraulic manipulator arm rockbreaker boom system specification are subject to change without notice.

Built to OEM quality, YUANDA rock breaker tools are compatible with major brands.

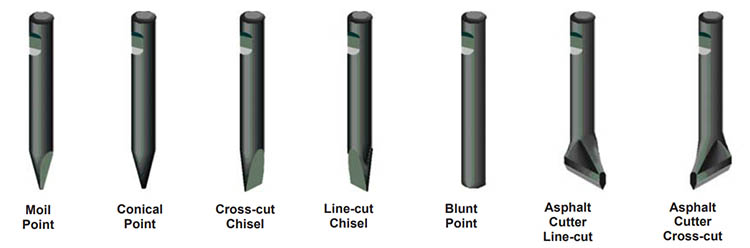

Different types of chisel tool for hydraulic breaker we can supply:

More types of hydraulic hammer chisel tools for pedestal rock breaker boom system are available (Rock Breaker Rod).

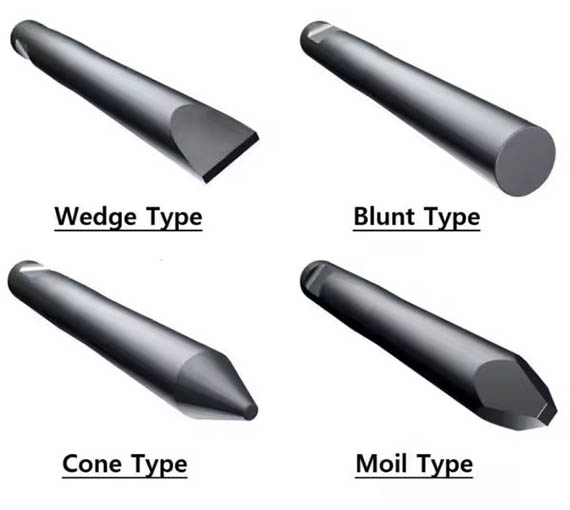

Different Types Of Hydraulic Rock Breaker Tools

Hammer tool bits are made from differing steel alloys that are put through a complex heat treatment process.

YUANDA offer different styles of tool bits such as Chisels / Cross Cuts, Moil Point / Pyramid Points and Blunt Ends. We also offer special hydraulic demolition hammer tool accessories for all types of different applications such as Sheet Drivers, Impact Cutters, Bush Points, Frost Wedges, Pipe Drivers, Elephant Heads, Asphalt Cutters & Tamper Points. Special tools and jack hammer bit types are usually supplied as your special requirements. “HOW TO SELECT HYDRAULIC ROCK BREAKER CHISEL TOOLS” is the question frequently asked by the clients. Please contact us with your job details, then our professionals will advise you regarding the suitability of your rock hammer for a particular application and advise you regarding different tool applications.

A hydraulic hammer converts hydraulic power to kinetic energy. The kinetic energy is delivered by the hammer piston to the tool as an impact force. YUANDA offers a choice of tools and lengths for all types of rockbreakers. “How To Select Hydraulic Hammer Breaker Chisel Tools” is the key question before choose and use the tool that is most suited for the work. Using a rock drilling tools not suited for the work not only reduces the working efficiency but may cause chipping, deformation, or other damage to the tool.

Selection of Working Tools for Hydraulic Rock Breaker Pedestal Boom System

Hydraulic Breaker Tools – Moil Type / Moil Point

The shape of this tool allows dust and chips to escape on all sides and creates an exceptional penetration rate.

Moil point tool for hydraulic rock breaker is ideal for softer, abrasive material where high penetration is needed; similar to the blunt it results in less torque in the front cap

Hydraulic Breaker Tools – Chisel Type

The standard chisel tool for hydraulic rock breaker is the most commonly used demolition tool. Cross-cut tools cut at a right angle to the stick and boom of the carrier. In-line chisels are available upon request. Hydraulic rock breaker chisel type is suitable for angular and slab material. Chisel tool for hydraulic pedestal rock breaker boom system provides wedge effect impact and good penetration.

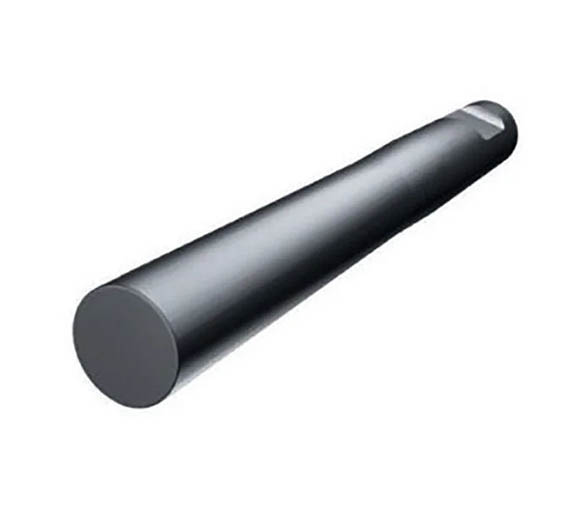

Hydraulic Breaker Tools – Blunt Type / Blunt Tool

The large, flat surface at the tip of this tool ensures stability while creating exceptional shattering force.

Blunt tool for hydraulic rock breaker is used for oversize boulder and hard material breaking; tool impact delivers the stress wave generated by the hammer causing the material to fracture. Blunt tool for hydraulic breaker features best wear resistance

Hydraulic Rockbreaker Tools – Cone Type

General demolition work where penetrative breaking is required, such as soft, non-aerasive rock, concrete, tunnelling, trenching.

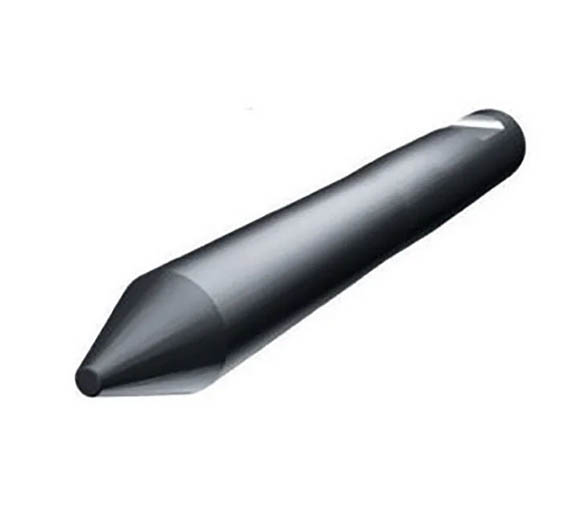

Hydraulic Rock Breaker Rod Tools – Conical Type

Primary and secondary breaking in quarry, mine and stone crushing plant. It is mainly used to break tough rocks, such as granite, and quartzite, also used for breaking heavy and thickened concrete.

Hydraulic Breaker Tools – Frost Cutter Tool / Frost Wedge

This type of chisel has a sharp edge and a narrow profile, making it suitable for breaking frozen ground, hard soil, and other tough materials.

This tool is available in both a cross-cut and in-line configuration. Cross-cut tools cut at a right angle to the stick and boom of the carrier. It is usually used for frost cutting and edge of trenching.

Working Tools for Pedestal Rock breaker Boom System – Pyramid Type

For breakage of hard materials such as reinforced concrete or similar.

Hydraulic Rockbreaker System Tools – Asphalt Cutter Tool

Designed to facilitate complete and efficient removal of asphalt for special applications.

Working Tools for Pedestal Rockbreaker Boom System – Tamper plate/Tamping Pad

This type of chisel has a flat or slightly concave tip and is suitable for compacting soil, backfilling trenches, and other compaction applications.

YUANDA manufactures wide range of high-quality demolition tools in China, compatible with most hydraulic heavy-duty rock breakers boom system. We are doing our best in manufacturing process, quality control and R&D to produce the high quality stationary rockbreaker tools to the world. Consult us to get a Hydraulic Hammer Tool Manual for more detailed information about impact energy, tool lubrication, correct use, breakage, and warranty information.

Applications of Rock Breaker Tool Bits For Hydraulic Hammer

YUANDA designs and manufactures OEM-compatible rock breaker tools that are built to withstand the harshest conditions from primary breaking in quarry and mine to slab breaking and excavation of ditches. This hydraulic hammer chisel tool has wide applications, such as, controlled breakage of Concrete, Tunnelling, Benching, Trenching, Breaking Boulders, layered sedimentary rocks, cutting casting gates, general demolition, highway construction, concrete slab, excavator parts, bridge decking, breaking oversize hard rocks, slag removal, breaking concrete structures - columns, etc.

Hydraulic Breaker Moil Point Tool

The Moil Point Tool is specially designed for the Hydraulic Breaker Series utilizing optimum balance for chipping and demolition work. The Hydraulic Pedestal Boom Rock Breaker Moil Point Tool is designed to drill through concrete and dig up clay for backyard and garden landscaping. Made from the high quality of heat-treated steel, this concrete rock breaking accessory is compatible with the 710 Series Hydraulic Breaker. Ideal for starting holes in concrete slabs and for general chipping and demolition work, such as Primary breaking, hard rock removal, soft material, and rock material, demolition work.

Hydraulic Hammer Chisel Tool

With low or medium penetration rate, this hydraulic pedestal rock breaker spare parts is suitable for breaking non-abrasive but ductile rock. Chisel tools for hydraulic rock breaker have been designed for general rock breaking. Due to excellent penetration and good wedge effect, this rock breaking tool has numerous applications, such as:

Concrete: Reinforced floors, walls, foundations, blocks, columns, support

Sedimentary rock (limestone, sandstone, graywacke, calcareus sediment): Trenching, foundation work (Heavily fissured)

Crystalline/magmatic rock (magma, greenstone, gabbro, granite...): Trenching, tunnelling, benching, foundation work, primary quarry breaking (Heavily fissured)

Asphalt: Road surfaces, transport routes

Soil: Frozen ground

Hydraulic Breaker Blunt Tool

The Blunt Tool for pedestal boom system rock breaker is specially designed for the hydraulic breaker series utilizing optimum balance for braking large rock pieces.

The Hydraulic Rock Breaker Blunt Tool is designed for the demolition of oversized rock and slabs. Crafted from the high quality of heat-treated alloy steel, this concrete breaking accessory is compatible with the 850 Series Hydraulic Breaker.

Hydraulic Breaker Asphalt Cutter Tool

With 4-1/4” & 6” wide blade and reinforced rib for added blade strength, this Asphalt Cutter Tool is specially designed for cutting asphalt and soft materials.

Hydraulic Breaker Post Driver Tool / Pipe Driver Tool

The Post Driver is specially designed for the hydraulic breaker series utilizing optimum balance for driving posts into the ground. The Hydraulic Breaker Post Driver Tool removes back-breaking work and enables you to put in fencing much quicker. Crafted from the high quality heat-treated steel, this concrete Post Driving accessory is compatible with the YZH Series Hydraulic Breaker. It is excellent for knocking posts into the ground, ideal for farms, ranches, and more, you will never need to pound another fence post by hand

Stationary Rock Breaker Tools Supplier/Manufacturer in China

YUANDA offers a comprehensive range of powerful, productive and durable hydraulic rock breaker, hydraulic hammers, excavator breaker, rockbreaker system, pedestal rock breaker boom system, attachments and spare parts, excavator rock breaker, hydraulic hammer machine, rock breaker booms and demolition tools for any breaking application. We use our strong expertise in rock breaking business to provide hydraulic pedestal rock breaker attachments and spare parts that allow you to work smarter and safer. We have exported many rock breaker tools to many countries, such as United States, Canada, Netherlands, Poland, Indonesia, Mexico, Chile, Peru, UAE, Middle East, the United Kingdom and EU.

Consult our sales team online now for more detailed information and rock breaker tools price.
