500kg 1 Ton Mode V6 Electric Stage Chain Hoist

Mode V6 Stage Hoist Design

The Mode V6 is a professional entertainment electric chain hoist built for small to mid-sized events rigging work and installations. The Mode V6 is a TUV Certified smart dual-brake electric hoist with a built-in load sensor and load monitor that can lift up to 1000kg (1T) weight, 25m high. It is Mode's new generation of flagship electrical chain hoist with reliability and safety in mind. Using Mode's Smart Group Controller with its built-in LCD touch screen, and in combination with the V6's built-in load sensor, the user can see real time lifting data for each hoist, making complicated lifting tasks much more precise and easier to operate. This is a specialized category for electric hoisting systems suitable for most areas within the entertainment and show business industry, including theatres, concert halls, convention centers, concerts and arena tours, film sets, night clubs, schools, TV studios and many more. A stage hoist or stage winch is a typical piece of theatre equipment and stage rigging.

Intelligent Electric Stage Hoist Mode V6 Specification & Features

Item: Stage hoist system, truss motor, chain hoist for stage, electric chain hoist motor

Lift capacity: 500kg, 1000lbs, 2000lbs, 1000 pound, 2000 pound, 1/2Ton.

SWL(Safe working load): 0.5t 1/2t 1t 2t

Use in climbing position, usable as stationary or climbing hoist without modification

ELECTRO-MECHANICAL DOUBLE BRAKES

Dual double electromagnetic brake system

5 POCKET LIFT WHEEL

Built-in load sensor, with real time loading data displayed on your control pad.

Dual electromagnetic braking system, providing double protection for your lifting tasks.

Teflon-level painting technology, aviation aluminium, IP55 rating, light-weight but heavy-duty.

5 Tooth chain guide system, reduces chain jamming rate during working process.

Oily gear box, lifetime guarantee.

Alloy steel forging hook to better aggregate breaking force with protective cove

For quiet & smooth operation

68 dB OPERATIONAL NOISE

Low noise emission, a result of the Double Brake System, Quiet running

INTERNAL CHAIN GUIDE

PVC black coated for quieter operation

Galvanized (Hot-dip galvanizing) or black phosphated load chain DAT according to DIN EN 818-7

DACROMET coating, an excellent corrosion resistant coating treatment.

PROTECTION CLASS IP54 IP55 IP56 IP65

LOW VOLTAGE CONTROL

110 Volt for long cable runs without voltage drop. 24 & 48 Volt optional.

Double limit switch

BUILT-IN PLC CONTROL

For safety function monitoring, Brake and Limit Switch integrity, Load Cell reading, Overload and Underload settings

Optionally with gear limit switch and incremental encoder as well as sturdy and ergonomic plastic handles

Electronic load measuring according to DGUV V17 standard (former DGV C1)

OVERLOAD PROTECTION

Rated operational range between 125 and 150/160%. Clutch is outside the load path when disconnected from power.

DURABLE & LIGHTWEIGHT HOUSING

Cast aluminum. Black powder coated finish for low visibility.

METRIC RATED LOAD CHAIN

G80 grade lifting chain. Zinc plated to protect against corrosion. Black phosphate finish optional.

CHAIN BAG

Easy-to-Mount Cloth Type Bags

CHAIN STOP

Mounted on load chain to prevent overtravel

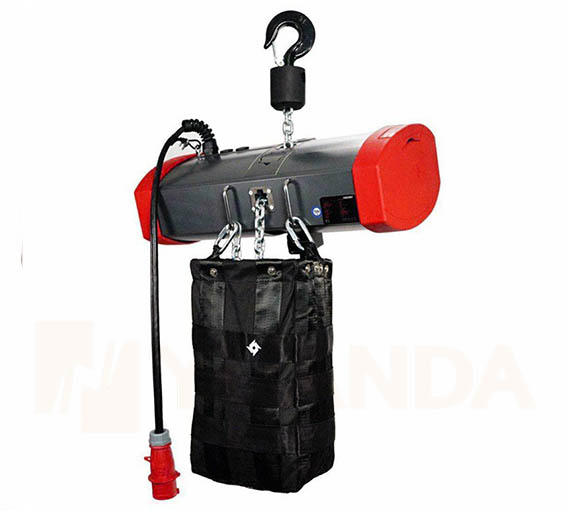

1000kg Mode V6 Electric Chain Hoist Motor for Lifting Stage Truss Lighting Speaker

2 Ton Mode V6 Stage Truss Motor Hoist 25M Lifting Height in Installation

Mode V6 24 Ways Group Controller, Flight Road Case and Power Cable

Mode V6 Stage Hoist Components & Accessories

Stage Hoist is a light and small lifting equipment. It consists of electric motor, transmission mechanism and sprocket. The motor hoist is durable. The internal gears are all quenched at high temperatures, which increases the wear resistance and toughness of the gears.

SHELL

Aluminum shell, light weight. Anti-corrosion, rust-proof. Housing and cover made of aluminum. The lightest entertainment chain motors in its class.

LIMIT SWITCH

Adjustable screw limit switch that will automatically stop the hook at any predetermined point when either hoisting or lifting.

Over travel protection, lower and upper limits (factory preset)

CHAIN GUIDE

Stamped Steel guide coated for corrosion resistance and quiet operation, while keeping the load chain and liftwheel aligned.

CLUTCH

Designed to prevent lifting of excessive overloads. Located outside the gear box. Adjustable and easy to access.

CONTROL PANEL

Provides easy access to controls, plug & play connectors allow for quick voltage change for dual voltage motors. Fuses located on terminal strip (optional).

LOAD CHAIN

Sizes available from 1/4 in. to 5/16 in. Meets or exceeds many national and international standards. Chain safety factor minimum 8-times. Zinc plated supplied as standard. Black phosphate finish available. 100% proof tested.

Load chain in compliance with European Standard EN 818-7 (optional).

MOUTING BRACKETS

Brackets for Wide I-Beam (60-150 mm Flange base) / Pipe

Note: Unistrut Channels, I-Beams or steel pipes must be in line with the stage hoist. Please contact YUANDA for special mounting solution requirements.

Available as a kit with flight case and group controller

CHAIN HOIST MOTOR CONTROLLER

The motor group controller is a versatile chain motor controller that can be configured and customized to work with different number of motors.

Standard features include flip switches to control directions of movement for each individual motor, a Go bottom to kick all motors in action at the same time, Emergency safety stop, LED meter display and a 3 phase circuit breaker.

Options including having wireless handheld pickle with receiver, and/or having the 3 phase power distributor built in.  The R series is best suited for permanent installations with new motorized lighting rig. Being rack mountable, the controller is easily managed and protected in the rack space along with the other rack mountable equipment.

STAGE APPLICATIONS

Mode V6 chain motors are used in the entertainment industry for rigging in sound, lights and securing truss systems. Mode V6 is a 2000kg max capacity electric chain hoist with a 20-meter lift height, suitable for various lifting applications. Mode smart hoist V6 features advanced safety features, including overload protection and an automatic brake system, and can be controlled remotely for ease of use. You will find Mode stage hoists in theaters, all types of arenas and sporting venues.

Exhibitions/Museums • Shopping centers • Hotels • Congress/Multipurpose Halls • Concert halls • Trade fairs • Open air events • Party-Locations • Schools • City Halls • Sports arenas • Theaters • TV-Studios • Amusement parks

Technical Parameter of Lighting Stadium Truss Lifting Conference Centers Construction 1 Ton Mode Stage Electric Chain hoist

How to Select The Right Type of Mode V6 Hoist Motor?

The stage hoist we produce is under strict quality control and inspection by our specialists in order to ensure a safe and efficient operation for your entertainment application. The Chain hoist motor system may vary according to the purpose of use or the way of use on the stage, and our engineers will offer the most suitable option for you.

• Rated load capacity

• Outdoor or indoor application

• Lifting height/Chain length

• Type of load or material

• Working environment

• How many pieces of the stage hoist shall be worked synchronously?

• Electric Power supply: 3 phase 380V 50Hz?

• Other requirements

Mode V6 Chain Hoist Manufacturer in China

YUANDA is a leading electric stage hoist manufacturer in China, supplying various of hoisting equipment for the stage and entertainment industry to our distributors and directly to end users both in China and overseas. We ship all over the world including the United States, Canada, Indonesia, Mexico, Chile, Peru, UAE, Middle East, the United Kingdom, EU, and more.

Contact us now for Mode V6 stage truss motor hoist price.
