Mode Freehoist Wireless Battery Powered Stage Chain Hoist

Cableless Lithium Battery Powered Stage Hoist System Design

Our battery chain hoist for stage is the perfect cableless chain motor hoist when there is no power outlet nearby. You can get it with 500 kg and 1000kg load capacity. You do not have a power connection nearby for the show? No problem! The stage truss battery chain hoist is always and everywhere directly ready for use. It can be conveniently stored in the supplied case and easily transported. Controlled by mobile phone App control.

Stage Hoist Specification & Features

Lift capacity: 250kg 300kg 500kg 1000kg

Heavy loading weight: 500pound, 1000lbs, 2000lbs

SWL(Safe working load): 0.5t 1t 2t 3t 5t

Battery capacity: 5000mAh

Battery specification: 36V/180Wh

Standby time: 168hours

KEY FEATURES

No cable, portable

Use in climbing position

ELECTRO-MECHANICAL DOUBLE BRAKES

Dual double electromagnetic brake

5 POCKET LIFT WHEEL

For quiet & smooth operation

68 dB OPERATIONAL NOISE

Low noise emission, a result of the Double Brake System

GEARING

Precision machined gears heat treated for strength and durability

INTERNAL CHAIN GUIDE

PVC black coated for quieter operation

Galvanized (Hot-dip galvanizing) or black phosphated load chain DAT according to DIN EN 818-7

DACROMET coating, an excellent corrosion resistant coating treatment.

PROTECTION CLASS IP54 IP55 IP56 IP65

LOW VOLTAGE CONTROL

110 Volt for long cable runs without voltage drop. 24 & 48 Volt optional.

DUTY CYCLE

H-4 duty rated for heavy duty application. 2M FEM class. 50% Duty Cycle or 300 on/off per hour.

Double limit switch: Top/Bottom electronic limit

For safety function monitoring, Brake and Limit Switch integrity, Load Cell reading, Overload and Underload settings

STANDARD FEATURES

OVERLOAD PROTECTION

Rated operational range between 125 and 150/160%. Clutch is outside the load path when disconnected from power.

DURABLE & LIGHTWEIGHT HOUSING

Cast aluminum. Black powder coated finish for low visibility.

METRIC RATED LOAD CHAIN

Designed and manufactured by Columbus McKinnon. Zinc plated to protect against corrosion. Black phosphate finish optional.

Meets German Code of Practice VPLT SR2.0/SQPR, German Regulation BGV-C1

Wireless Battery Type Stage Hoist Components & Accessories

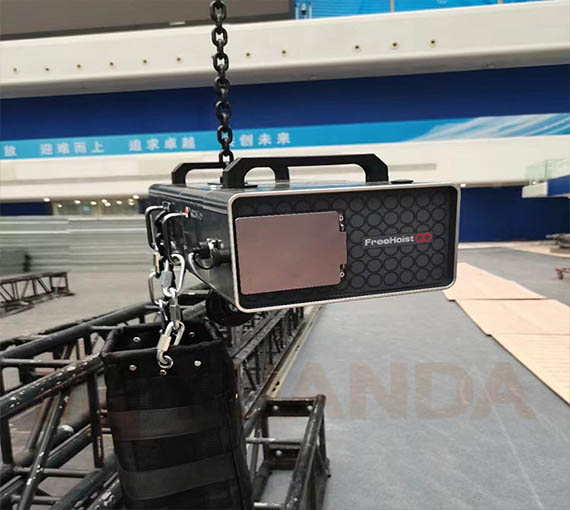

Portable battery stage Hoist is a light and small lifting equipment. It consists of large capacity lithium battery, electric motor, transmission mechanism and sprocket. The battery motor hoist is durable. The internal gears are all quenched at high temperatures, which increases the wear resistance and toughness of the gears.

Shell / Housing

Aviation aluminum alloy shell, light weight. Anti-corrosion, rust-proof.

LIMIT SWITCH

Adjustable screw limit switch that will automatically stop the hook at any predetermined point when either hoisting or lifting.

Over travel protection, lower and upper limits (factory preset)

CHAIN GUIDE

Stamped Steel guide coated for corrosion resistance and quiet operation, while keeping the load chain and liftwheel aligned.

LIFT WHEEL

5 Pocket Liftwheel increases chain and liftwheel engagement while providing smoother lifting, less vibration and reduced chain wear when properly maintained.

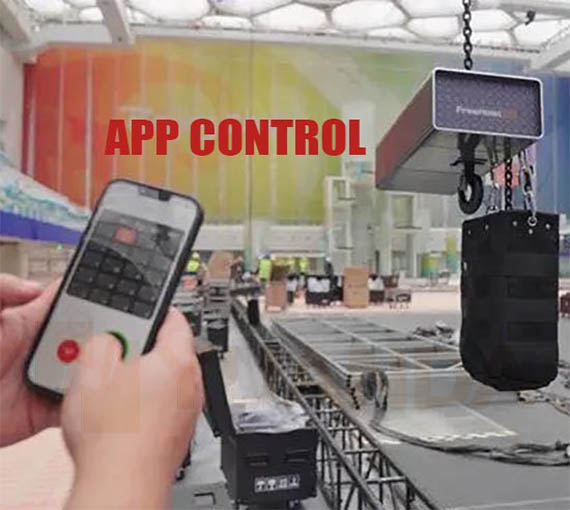

APP CONTROL

Provides easy access to APPLICATION controls on your mobile phone.

LOAD CHAIN

Sizes available from 1/4 in. to 5/16 in. Meets or exceeds many national and international standards. Zinc plated supplied as standard. Black phosphate finish available. 100% proof tested.

Load chain in compliance with European Standard EN 818-7 (optional).

Available as a kit with flight case(road case) and group controller

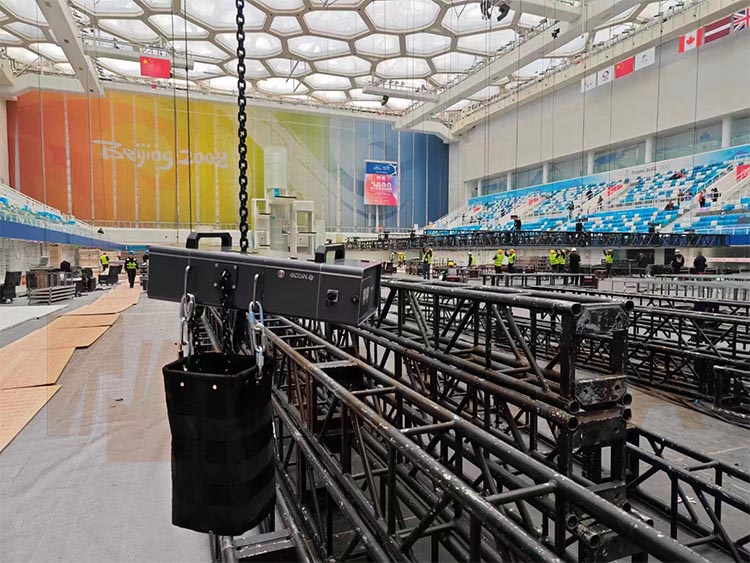

Battery Type Truss Motor for Stage Application

Powered by a rechargeable Li-ion battery, the Mode Battery Chain Hoist for Truss offers more flexibility than many other stage hoists on the market. The battery motor hoists can be easily moved from station to station or even taken from site to site as needed. You will find Mode batter stage hoists in theaters, all types of arenas and sporting venues.

Exhibitions/Museums • Shopping centers • Hotels • Congress/Multipurpose Halls • Concert halls • Trade fairs • Open air events • Party-Locations • Schools • City Halls • Sports arenas • Theaters • TV-Studios • Amusement parks

Technical Parameter of Lighting Stadium Truss Lifting Conference Centers Construction 1 Ton Mode Battery Powered Stage Electric Chain Hoist Truss Motor

Battery Operated Stage Motor Hoist Manufacturer in China

YUANDA is a leading rechargeable lithium battery model stage electric chain motor hoist manufacturer in China, supplying various of hoisting equipment for the stage and entertainment industry to our distributors and directly to end users both in China and overseas. We ship all over the world including the United States, Canada, Indonesia, Mexico, Chile, Peru, UAE, Middle East, the United Kingdom, EU, and more.

Contact us now for wireless battery operated stage truss motor hoist price.
