300Ton-350Ton Straddle Carrier

300Ton Straddle Carrier for Sale

Electric straddle carriers, also called Single Beam Rubber Tyred Gantry Cranes, are mainly used on construction sites and prefabrication yards for the movement of heavy precast or prefabricated concrete items. For example, 320 ton straddle cranes are designed to lift prefabricated beams, concrete parts, prefabricated houses, tanks, wind power towers, cable barrels, containers, precast bridge foundations and piers, etc. Heavy load straddle carriers comprise a portal crane mounted on multiple axle lines of pneumatic tyres and combine the benefits of an overhead goliath crane with the manoeuvrability of a multi-axle steerable transporter. A single straddle carrier is able to do the work of multiple rail based cranes and skidding/transport systems due the high manoeuvrability, and therefore offer a very economical solution.

The straddle lift crane has five different power systems, include the diesel engine, motor driven electric power supply, generator, LPG gas and environmentally friendly full lithium battery operated, which can meet any special working conditions where there is a lack of three phase power supply.

Moreover, with customized spreaders, 330 ton Straddle Carriers provide effective solutions for a wide range of material handling applications including handling ingots and anodes, precast concrete segments, aluminum coils and plates, steel structures such as wind towers, and heavy industrial equipment such as power-packs. The 360 ton straddle carrier crane is widely used at workshop, factories, sea port, quayside, marinas, shipyard, steel mill, high speed railway, casting yards, precast plant, warehouse, depot, storage areas and construction sites such as road, bridge, tunnels, overpasses, building construction and precast concrete manufacturing.

Rubber Tyred Straddle Carrier Features & Advantages

• Rated load capacity/ SWL/ WLL: 300ton 320ton 330ton 350ton 360ton 380Ton/TN/Tonne/Metric ton.

• Span(Width): 8m 10m 12m 14m 15m 16m 18m 20m 22m 24m 25m 26m 28m 30m 32m 35m 36m 38m 40m 42m

• Lift height: 5~13m

• Heavy load weight: 300T 320T 330T 350T straddle carrier

• Container spreader, chains, hooks, magnets, lifting beams, clamps and other special lifting devices can be equipped on the rubber tyre straddle carrier to handle the slabs, long concrete beams and bridge girders, steel coil, hollow core, wall panels, pillars, granite and marble blocks, plates, metal structure, steel sheet, rod bars, pipes, compressed pressure tanks(LNG LPG CNG), ISO tanks etc.

• Power supply: Diesel generator / Full electric / EV Lithium battery / Lithium iron phosphate battery(LFP)

• Engine emission standard: Euro Stage III IV V

• Compact design, single beam or double beam straddle carrier

• Travelling speed up to 10 km/h fully loaded

• Designed and manufactured to European standards

• Fully steerable in all directions

• Able to make a 90 degree on the spot direction change whilst fully loaded

• Central monitoring and control of all systems

• Synchronised operation of multiple straddle carriers handling a single load

• Winch systems for fast and accurate positioning of the load

• Strand jack lifting systems offered as an option for larger capacities

• Low ground bearing pressure, low requirement for concrete pavement design

• 2 leg and 4 leg options

• Electric power supply or diesel engine or EV battery powered or LPG gas powered

• Latest Hydrostatic drive technologies, variable motor speeds and integrated power management reduce operating costs and increase eco-efficiency, step-less speed change, smooth movement.

• Driver's room and wireless remote control for real-time operation.

• Application of crane: The 350 ton straddle carrier is for precast concrete elements, precast beams, bridges, ISO tank, boat, yacht, sea port terminal, lumber, concrete mold, cement, stone, rebar cage, prefab container house, jumbo manufacturing parts, marina, concrete slab, cylindrical parts, pipelines, transformer, general manufacturing, etc.

• 2 pieces of straddle carriers(Twin) can work together, they can be operated in tandem mode enabling the moving of extremely long loads such as wind turbine blades or precast concrete pipes & beams.

300 Ton Rubber Tyre Construction Civil Engineering Straddle Carrier for sale

300 Ton Marine Boat Yacht Straddle Carrier for Marine Application

350 Ton Rubber Tired Straddle Carrier for Prefab Modular Concrete Segments

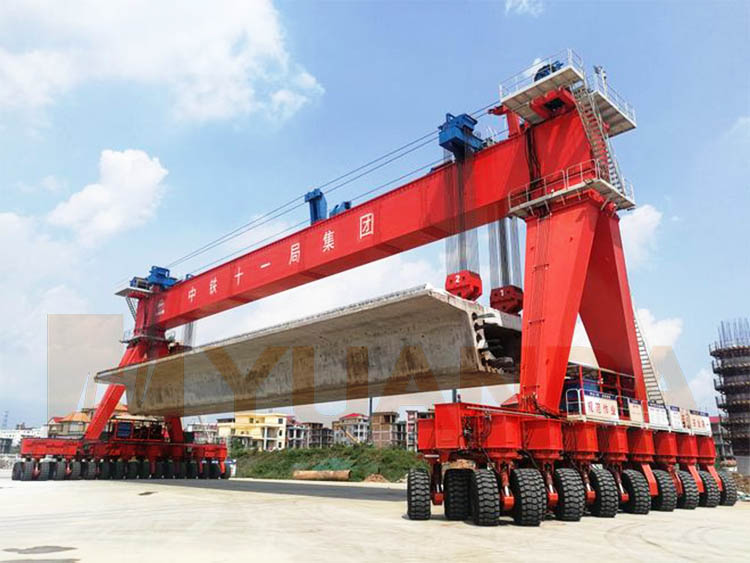

360 Ton Mobile Straddle Carrier Crane for Precast Concrete Beam

350 Ton Double Beam Rubber Tyred Straddle Carrier Gantry Crane

2 Two Sets of Straddle Carriers(Twin) Work Together in Tandem Mode to Handle Long Loads

Technical Parameter of Rubber Tyred 300 Ton Straddle Carrier

*350 Ton rubber tired straddle carrier specifications may be subject to change without notice.

350 Ton Straddle Carrier Spare Parts and 350 Ton Straddle Carrier Components, Accessories

Supported on rubber tires, the 300t straddle carrier crane is often powered by diesel generator, or battery + small power generator set hybrid power. It is composed of large vehicle mechanism, steering mechanism, gantry, power system, shock absorption and energy storage system, and special container spreader or multi-lifting point attachment. The design, manufacture and inspection are in accordance with the latest domestic and international standards such as FEM, DIN, IEC, AWS and GB.

The 350t straddle carrier is characterized by various functions, high efficiency, stability and reliability, wide operation range, good maneuverability, high speed, and convenient use, maintenance and repair. It is equipped with functions such as straight line, inclined line, Ackerman steering, etc. It has perfect safety indication and overload protection device to ensure the safety of operators and equipment to the maximum extent. The electrical drive adopts full digital AC frequency conversion, PLC control constant power speed regulation and other technologies, with flexible control and high precision.

The 320t straddle carrier adopts advanced sensing system and monitoring system, which can independently complete the automatic identification, positioning, movement, loading and unloading of heavy containers, with high lifting synchronization precision, stepless speed adjustability, strong overload capacity and other features, which can effectively improve the safety and efficiency of logistics operations. Compared with the traditional rubber tire gantry crane’s 3% climbing degree, the 330t straddle carriers can climb 10% steep slope with full load.

Other 300 ton straddle carrier spare parts include: straddle carrier tire, lift chains, straddle carrier cab, trolley, pulley, straddle carrier wheels, independent and electronically synchronized winches, electric motor and hydraulic motors, wire ropes, hydraulic cylinders and so on. Tell us about the components that you need. Let us help.

Applications of Rubber Tyred Straddle Carrier

The advantages of the 360 ton straddle carrier crane include its simple structure, reasonable mechanical properties, light weight, high rigidity, simple operation, stable and safe use, easy assembly and disassembly, and low cost. There are many different types of electric straddle carriers used for various applications. The construction straddle carrier is typically used in civil engineering industry such as highway and railway bridge engineering, housing construction engineering, water conservancy engineering, and concrete component loading and unloading. It is also named as straddle trucks, shuttles or mobile straddle transporter on tyres.

Bridge Construction -The civil engineering straddle carrier system can also be used to build a dry bridge with a low pier body; it is also suitable for bridge engineering construction, foundation, pier hoisting, and upper structure concrete beam (slab) installation, lifting and storing precast girders, casting plates and prefab concrete block, lifting and erection of precast bridge segments. It is also referred as slab handling straddle carrier.

Prefabrication Yard -This type of precast concrete bridge deck straddle carrier crane is primarily used to transfer the prefabricated beam from the beam making platform to the beam storage platform, and then to transfer it to the beam transport vehicle once the prefabricated beam's maintenance is completed. It is also called T beam straddle carrier crane.

Subway Tunnel -The diesel engine straddle carrier can remove the excavated residual soil, as well as handle and transport concrete pipes, tubes, pipe fittings, and heavy concrete aggregates, etc.

Shipyard -For marine application, to move, transfer, and turnover ships from one location to another, assist with ship maintenance, and so on. The rubber tire boat yacht straddle carrier is used at marina for lifting boat out of water.

Wind Farm - Wind power handling. The remote control straddle carrier is used to lift and move wind mill power generators or rotor blades for the Windmill Energy Towers.

Port, Manufacturing Facility, and Storage Yard -Heavy lift straddle carrier crane, or called container lifters are also useful for cargo/goods handling, barge, and other heavy material handling and lifting, etc.

YUANDA 380 ton straddle carrier find application in different industries, including precast, oil and gas, nuclear, aeronautical, aluminium, marine, building materials, logistics, metals, plastics, steel, timber, warehousing, tunneling and rail industry, ship building, renewable green energy industry, and represent the ideal solution for handling of raw materials and finished products.

350 Ton Rubber Tyred Straddle Carrier Manufacturer in China

Rubber tyred straddle carrier crane, known for its mobility and adaptability among self propelled gantry cranes, finds applications across a wide range of sectors, from handling concrete precast beams in precast yards to assisting construction process. As a 350 ton straddle carrier manufacturer and supplier from China, our company are committed to provide custom straddle carrier solutions to enhance operational efficiency in various industries. We have exported the 300ton straddle carrier crane to Saudi Arabia, Australia, European, United States, Canada, Indonesia, Mexico, Chile, Peru, UAE, Malaysia, Middle East, the United Kingdom, EU and more countries.

Moreover, we offer one-stop solution on turnkey project basis, including straddle carrier installation, commissioning, maintenance, training and after sale service. To obtain an accurate quote for 350ton straddle carrier price tailored to your specific needs, please contact us online directly.
