MG Mobile Gantry

MG Mobile Gantry for Sale

MG Mobile Gantry are a type of single girder rubber tyred gantry crane, intended for use on prefabrication plant and assembly yards for the movement of heavy precast or prefabricated items such as bridge deck beams or precast bridge foundations and piers. With standard options for multiple steering modes including 2 Wheels and 4 Wheels steer, rotation, carousel and sideways crab, together with low height clearances, our company can provide a solution to maneuver within the physical constraints of your job site. This self propelled gantry crane is much more practical than rail mounted gantry crane. The 50 ton MG mobile gantry straddle carrier crane is used at workshop, factories, warehouse, depot, sea port, marinas, shipyard, steel mill, high speed railway, casting yards, storage areas and construction sites such as road, bridge, tunnels, overpasses, building construction and precast concrete manufacturing.

Also known as mobile straddle transporter, it is highly customisable to fit any load handling challenge. The 70 ton heavy load MG mobile gantry is highly adaptable to your needs and can be built to dimensions specifically to suit your application. It can be fitted with a very wide range of lifting accessories to suit any application or industry, such as container spreader, multi-lifting point attachment, lift chains, electric hoist, magnets, C hooks and so on. With lifting capacities ranging from 20ton 30ton 40ton up to 80 tonne, it's a safe choice to go with the YUANDA Mobile Gantry.

Rubber Tyred Mobile Gantry Features & Advantages

• Rated load capacity/ SWL/ WLL: 20, 30, 35, 40, 50, 60, 70, 80, 100, 110, 120, 150, 180, 200, 250, 300, 320, 330, 350, 400, 450, 500, 550, 600 Ton(Tn/Metric ton/Tonne)

• Span(Width): 6m 8m 10m 12m 14m 15m 16m 18m 20m 22m 24m 25m 26m 28m 30m 32m 35m 36m 38m 40m

• Lift height: 6~12m

• Heavy load weight: 20t 25t 30t 32t 35t 40t 45t 50t 55t 60t 70t 80t 100t 110t 120t 130t 150t 160t 180t 200t 220t 230t 250t 260t 300t Mobile Gantry

• Container spreader, chains, hooks, lifting beams, clamps and other special lifting devices can be equipped on the 80 ton rubber tyre MG Mobile Gantry to handle the container, precast concrete bridge segments, steel coil, steel sheet, prefabricated beams, concrete parts, prefabricated houses, tanks, wind power towers, cable barrels, metal structure, lumber, rebar cages, wall panels, rod bars, transformers, compressed pressure tanks(LNG LPG CNG), ISO tanks etc.

• 3 wheel hydrostatic drive straddle carrier

• Power supply: Diesel generator / Electric / EV Lithium battery / Lithium iron phosphate battery(LFP) / LP Gas

• All 4 wheels steering (hydraulic system). The tires of this mobile gantry crane can rotate 90° and move obliquely at 20° and 45°.

• Able to climb slopes of up to 10%

• Can travel fully loaded

• Light weight, low wheel load pressure

• Available in electric power supply or diesel engine or EV battery powered or LP Gas option

• Engine emission standard: Euro Stage III IV V

• Compact design, telescopic lift design is available

• Latest Hydrostatic drive technologies, variable motor speeds and integrated power management reduce operating costs and increase eco-efficiency, step-less speed change, smooth movement.

• Wide wheel surface and high elastic coating steel, low ground pressure.

• Application of crane: The 100 ton rubber tire mobile gantry straddle carrier is for shipping container, battery energy storage container system, precast concrete elements, ISO tank, sea port terminal, concrete beams, bridges, steel structure, injection mold, stone, prefab container house, jumbo manufacturing parts, concrete slab, cylindrical parts, tubes, pipelines, general manufacturing, etc. It can be fitted with a very wide range of lifting accessories to suit any application or industry.

• Proportional controlled remote control

• Full side shift from left to right increases storage and flexibility

• Independent telescopic for maximum lift whilst also capable of passing under low heights

• Independent lift allows lifting and lowering of coil/load

• Rotating C-Hook for handling coils in both directions and rotating, manual or automatic option

• Rated lift capacity from 50T to 100T

• 2 pieces of Mobile Gantry(Twin) can work together, they can be operated in tandem mode enabling the moving of extremely long loads such as wind turbine blades or precast concrete pipes & beams.

• Custom configurations for each specific application, automation system available on request

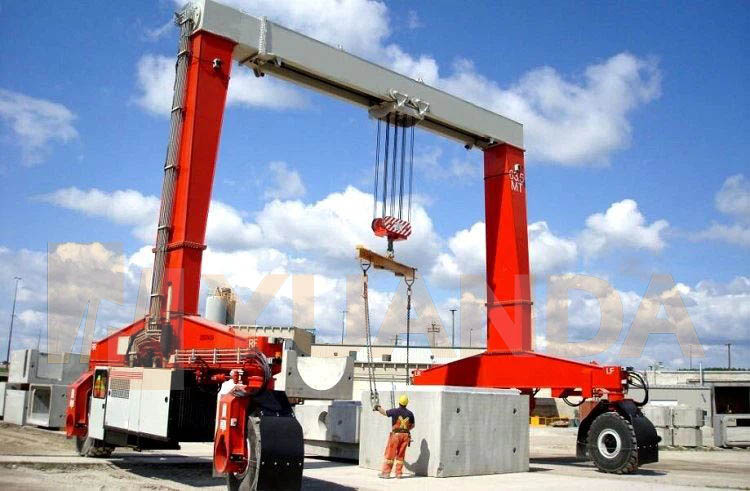

80 Ton Mobile Straddle Transporter on Tyres to Handle and Transport Precast Concrete Segments

100 Ton Rubber Tired Mobile Gantry Straddle Carrier Crane for Precast Concrete Beam

150 Ton Straddle Carrier Rubber Tyred Mobile Gantry Crane

60 Ton MG Mobile Gantry for Sale

80 Ton MG Mobile Gantry for Handling Oversized and Out of Gauge Loads

2 50 Ton MG Mobile Gantry Machines Working Together in Tandem Operation for Handling Long Prefabricated Concrete Bridge Beam

Application of Mobile Gantry

YUANDA 40 ton MG mobile gantry straddle carrier crane find application in different industries, including precast, oil&gas, nuclear, aeronautical, highway, aluminium, marine, building materials, logistics, metals, plastics, steel, timber, precast plant, warehousing, tunneling and rail industry, renewable green energy industry, and represent the ideal solution for handling of raw materials and finished products, such as precast beams, wind mill power generators or rotor blades for the Windmill Energy Towers, long concrete beams and bridge girders, pipes, hollow core, walls, pillars, granite and marble blocks, plates, slabs, coils, etc. This machine is also known as straddle truck or shuttle.

Technical Parameter of 80 Ton Rubber Tyred Mobile Gantry Straddle Carrier

*60T rubber tire straddle carrier mobile gantry specifications may be subject to change without notice.

30 Ton MG Mobile Gantry Manufacturer in China

The electric MG Mobile Gantry is the perfect solution for handling and conveying extremely large and bulky loads typical of industries such as shipping, aerospace, wind turbine, large scale civil industry, precast concrete and large scale structural steel industries. As a 50 ton mobile gantry manufacturer and supplier in China, we offer the full line of the crane series such as mobile gantry crane, portal crane, straddle carrier and single beam rubber tired gantry crane. We provide on stop solution including design, fabrication, mobile gantry installation, commissioning, maintenance, training and after sales service for the Mobile Gantry. And glad to say we have exported the straddle carrier mobile gantry to many countries including: Saudi Arabia, Australia, European, United States, Canada, Indonesia, Mexico, Chile, Peru, UAE, Malaysia, Middle East, the United Kingdom, EU, etc.

If you want to buy MG Mobile gantry, please feel free to contact us now for further information. Our experienced team of engineers and technical staff can help you choose the correct mobile gantry cranes setup that meet your needs, improving the efficiency and safety of your material handling operation in your workshop or manufacturing plant.
