Rubber Tired Straddle Carrier

Rubber Tyre Straddle Carrier for Sale

Rubber tyre straddle carriers are specialised heavy machinery designed for the lifting, transporting, and stacking of long and oversized loads at construction sites. These machines typically have a unique design with large, adjustable legs that can straddle and lift heavy loads, such as steel beams, precast concrete elements, pipes, rebar cages and other construction materials. The largest mobile gantry crane can be 900 ton rubber tire straddle carrier made by us for the purpose of civil engineering. They are equipped with powerful engines and hydraulic systems to manage substantial weights and often come with a variety of attachments to accommodate different types of materials. Also known as straddle trucks or shuttles, construction straddle carriers play a crucial role in streamlining on-site logistics, reducing manual labor, and enhancing the productivity and safety of construction projects, especially when dealing with oversized or exceptionally heavy items.

When employed at sea port, intermodal terminal yards or storage yards, small rubber tire container straddle carriers are used primarily for transporting containers on land. They are constructed in such a way that they can straddle the shipping container with their long telescopic supports, attach the container with the telescopic chain or toplift spreader, raise it up off the ground and drive it away. The optional automatic Top Lift spreader can be adjusted to manage every type of ISO container directly from the cab, improving operator safety. Depending on the model height, the container handling straddle carriers can stack containers quickly and economically, either 3 or 4 high.

Rubber Tyred Straddle Carrier Features & Advantages

• Rated load capacity/ SWL/ WLL: 30 40 50 60 70 80 100 120 150 160 200 220 230 250 300 320 330 350 400 450 500 550 600 800 900 1000 1100 Ton/TN/Tonne/Metric ton

• Span(Width): 6m 8m 10m 12m 14m 15m 16m 18m 20m 22m 24m 25m 26m 28m 30m 32m 35m 36m 38m 40m 42m

• Lift height: 6~12m

• Heavy load weight: 40 ton 100ton 120 ton 200 ton 320 ton

• Rubber tire straddle carriers for ISO freight container handling, 20’, 30’, 40’, 45’ container sizes handled.

• Container spreader, chains, hooks, lifting beams, clamps and other special lifting devices can be equipped on the 50 ton rubber tyre straddle carrier to handle the freight container, prefabricated houses, long concrete beams and bridge girders, hollow core, walls, panels, pillars, granite and marble blocks, plates, slabs, steel coil, metal structure, rod bars, pipes, compressed pressure tanks(LNG LPG CNG), ISO tanks etc.

• Power supply: Diesel generator / Electric / EV Lithium battery / Lithium iron phosphate battery(LFP)

• All 4 wheels steering (hydraulic system), large pneumatic tyres or soft solid puncture proof floatation tyres, enabling operation on rough terrain. The tires of the container straddle carrier crane can rotate 90°, move obliquely at 20° and 45°, and climb slopes of up to 10%.

• Telescopic feature outstanding for travelling in and out of warehouse’s with ease, moving from indoor to outdoor.

• Electric power supply or diesel engine or EV battery powered

• Engine emission standard: Euro Stage III IV V

• Compact design, telescopic column type. Light weight, low wheel load pressure.

• Latest Hydrostatic drive technologies, variable motor speeds and integrated power management reduce operating costs and increase eco-efficiency, step-less speed change, smooth movement. 3 speed hydrostatic drive 25 km/h max.

• 4 Way Lever Positioning of Wheels, wide wheel surface and high elastic coating steel, low ground pressure.

• Driver's room and wireless remote control for real-time operation

• Weighing device and digital display

• Hydraulic hand lever: reducing breakdown, easy for operation and maintenance.

• Suitable for 20ft 40ft 45ft intermodal containers, double stack containers with ease and capable of flipping containers onto a chassis or flatbed.

• Application of crane: The 40 ton rubber tyred straddle carrier is for shipping container, precast concrete bridge segments, battery energy storage container system(BESS container), ISO tank, sea port, container terminal, lumber, concrete beams, bridges, transformer, injection mold, concrete parts, wind power towers, cable barrels, steel sheet, stone, steel structure, prefab container house, jumbo manufacturing parts, concrete slab, cylindrical parts, pipelines, general manufacturing, etc.

• 2 pieces of rubber tyred straddle carriers(Twin) can work together, they can be operated in tandem mode enabling the moving of extremely long loads such as wind turbine blades or precast concrete pipes & beams.

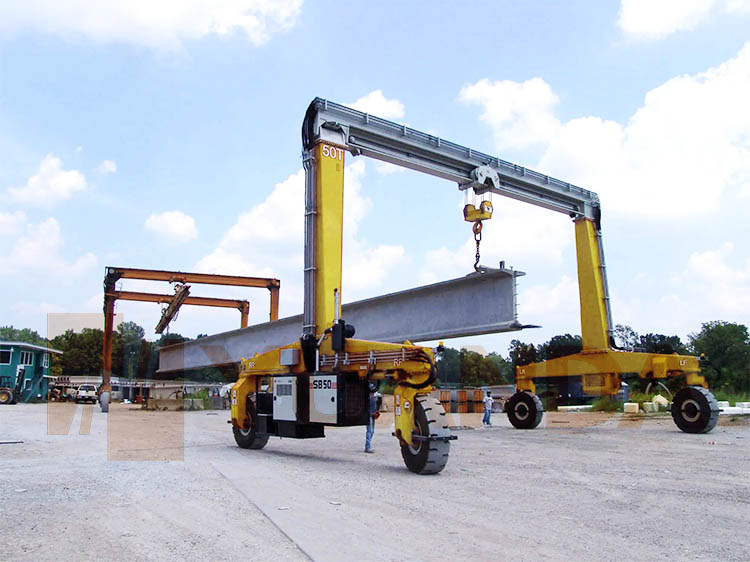

900 Ton Rubber Tyred Straddle Carrier for Precast Concrete Bridge Segments

300 Ton Rubber Tired Straddle Carrier for Prefab Modular Concrete Beam

200 Ton Rubber Tire Mobile Straddle Carrier Crane for Precast Concrete Construction

80 Ton MG Type Mobile Gantry Straddle Carrier Crane Handling Concrete Block on Construction Site

50 Ton Rubber Tyred Straddle Carrier Self Propelled Gantry Crane Working Together in Tandem Operation

30 Ton 3 Wheels Rubber Tyred Straddle Carrier for Shipping Containers

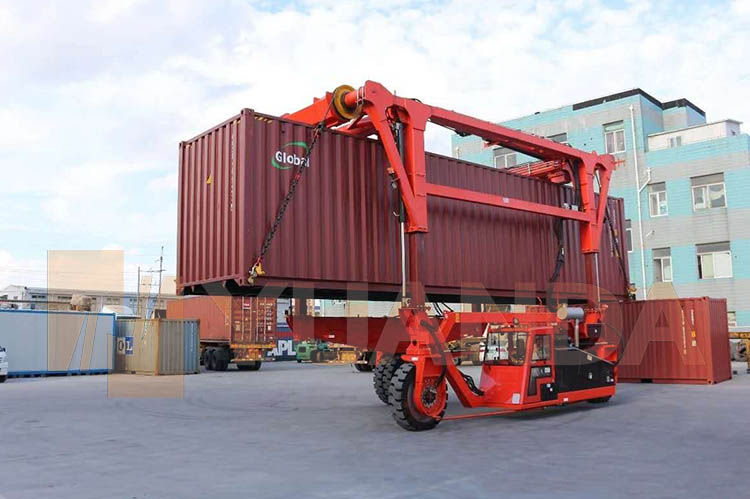

40 Ton Rubber Tyre Container Straddle Carrier for sale

40Ton GP Type Mini Mast Container Handling Straddle Carrier Gantry Crane

Industrial Application of Rubber Tired Straddle Carrier

The versatility of heavy load straddle carrier truck has led to their widespread use in a variety of industrial operations, where they can efficiently handle and transport long, heavy and bulky cargo. The rubber tire straddle carrier crane is widely used at workshop, factories, sea port, quay side, highway, marinas, shipyard, steel mill, high speed railway, precast plant, casting yards, storage areas and construction sites such as road, bridge, tunnels, overpasses, modular house building construction engineering and precast concrete module manufacturing.

One of the primary applications is container handling at sea ports and container terminals. Shipping container straddle carriers are extensively used in these environments due to their ability to lift and transport containers with efficiency and precision. These type of container handlers are also called intermodal container straddle stacker cranes or container straddle carrier handler, enabling stacking four container high reach. Sea port container straddle carrier rubber tyre gantry cranes can stack and move containers between ships, trucks, and storage yards, optimizing logistics operations and ensuring smooth cargo handling at ports and shipyards. Another significant application of straddle carriers is in intermodal yards, railways and rail terminals. These machines play a crucial role in transferring containers between trucks and trains or within the yard itself. Their flexibility and mobility enhance the efficiency of intermodal logistics networks.

Furthermore, container transporter straddle carriers are employed in industrial and manufacturing settings, warehouses or depots for heavy material handling. Industries such as steel, mining, and automotive utilize straddle carriers to lift and transport large and heavy components or materials within their facilities.

Lastly, 80 ton multifunctional rubber tyred straddle carriers find applications in specialized sectors such as shipyards and prefabrication yards. In shipyards, these machines assist in moving heavy equipment and materials during ship construction and repair processes. For marine application, the boat yacht straddle carrier is used at marina for lifting boat out of water. Similarly, in prefabrication plant, cabin straddle carriers are used to transport prefabricated concrete components, precast beams, tubes, machinery, and construction materials, contributing to improved productivity and operational efficiency. They are also known as mobile straddle transporter, precast concrete bridge straddle carrier or T beam straddle carrier crane. In wind farm, the 60 ton rubber tire straddle carrier is used for lifting and transporting wind mill power generators or rotor blades for the Windmill Energy Towers.

YUANDA container lifter straddle carriers are engineered for a wide variety of industrial applications. Our experienced, professional engineering team can also custom design a vehicle for unique job requirements. Second hand used rubber tyre straddle carrier is also in stock for sale.

Technical Parameter of Rubber Tyred Straddle Carrier

*Automatic rubber tire container lifting straddle carrier specifications may be subject to change without notice.

Different Types of 40 Ton Rubber Tyred Straddle Carrier

Designed as single beam rubber tired gantry cranes or double beam versions, the 100 ton rubber tired straddle carriers play a significant role in enhancing construction productivity and safety by offering efficient, precise, and reliable material handling solutions. For different applications, the vehicle come in many types, such as rough terrain rubber tired straddle carrier, rail mounted straddle carrier, self propelled gantry crane, container straddle carrier lifting system, and Mobile Gantry.

To be specific, with different power source version, there are motorized electric straddle carrier, EV battery powered straddle carrier, or diesel engine straddle carrier. Powered by lithium-ion battery with guaranteed autonomy based on expected work cycles, full electric straddle carrier producing zero emissions at source. Classified by wheel quantity, they can be 3 wheel straddle carrier and 4 wheel straddle carrier. 6 wheels and 8 wheels are also common types. With different load to be lifted, there are container lift straddle carrier which is container handling equipment at quay side, concrete slab handling straddle carrier, marine boat straddle carrier, bridge deck straddle carrier, prefab container house straddle carrier and so on. Employed at different jobsites, there are civil engineering straddle carrier, construction straddle carrier, shipping container straddle carrier and yacht straddle carrier. As per lifting capacity, there are light duty and heavy duty types. The light duty is designed for handling shipiping containers or light loads, such as 30 ton rubber tire straddle carrier, 40 ton and 120 ton straddle carrier. The heavy duty carrier is capable of handling long and large size loads up to 1000 tons, such as 300 ton rubber tire straddle carrier 320ton straddle carrier and 500ton rubber tire straddle carrier for sale.

YUANDA 200 ton automated rubber tire straddle carrier find application in different industries, including precast, oil&gas, nuclear, aeronautical, aluminium, marine, building materials, logistics, metals, plastics, steel, timber, warehousing, tunneling and rail industry, renewable green energy industry, and represent the ideal solution for handling of raw materials and finished products. We have many types of rubber tyred straddle carrier for sale. Please leave us a message online for more information and get a quote for rubber tire straddle carrier price.

30 Ton Rubber Tire Straddle Carrier Spare Parts and Straddle Carrier Components, Accessories

The rubber tyred straddle carrier crane includes the following items: main structure frame and chassis, double girder/double beam gantry crane for lifting container, traveling wheels, hoisting mechanism, hydraulic steering system, operator cabin and electric control system. Our company provide both entire engineered straddle carrier and rubber tyred straddle carrier spare parts, components and accessories as request. We have 30 ton straddle carrier spare parts in stock, such as straddle carrier tire, lift chains, straddle carrier cab, straddle carrier wheels, multi-lifting point attachment, independent and electronically synchronized winches, wire rope, cylinders and hydraulic components. If you want to buy rubber tire straddle carrier, please contact us now. We will suggest a rubber tire straddle carrier tailored to meet the demands of our customers.

300 Ton Rubber Tyred Straddle Carrier Manufacturer in China

As a rubber tire straddle carrier manufacturer and supplier from China, our company provide smart material handling solutions for container terminals and civil engineering industry. We deliver operational efficiency, improve operational processes, and promote a safer working environment. Our dedicated team of professionals strive to provide comprehensive customer service from initial contact to service and spare parts support in the field, including rubber tyred straddle carrier installation, commissioning, maintenance, training and after sale service. We have exported the rubber tire straddle carrier crane to Saudi Arabia, Australia, European, United States, Canada, Indonesia, Mexico, Chile, Peru, UAE, Malaysia, Middle East, the United Kingdom, EU and more countries. All our rubber tired container straddle carrier are CE certificate.

Rubber tire container handling straddle carrier's design drawings, user manual and installation guide instructions can also be provided by our technical team. Contact us now for further information.
