Floor Mounted Jib Crane

1 Ton Freestanding Jib Crane Design

A 1 ton floor mounted jib crane is a type of crane that is used for lifting and moving heavy loads in a confined space. It is typically mounted on a floor or foundation, using chemical anchors, and consists of a vertical mast or post, a rotating boom, and a hoist or other lifting device. The motorized boom of the 1/2 ton freestanding jib crane can rotate 360 degrees, allowing for precise positioning of the load, while the hoist is used to lift and lower the load vertically.

Free standing jib cranes are fairly simple in design but can have capacities ranging from 250 lbs. to 15 tons in some applications. 2 Ton floor mounted jib cranes are commonly used in manufacturing, assembly, and logistics industries for heavy-duty lifting tasks. They are known for their versatility, as they can be used to lift and move loads in areas where overhead cranes cannot reach. Their ergonomic design is very appealing in a production environment because they can increase worker productivity, reduce workplace injuries, and improve safety. 2 Ton free standing jib cranes are built to last and offer outstanding performance in even harsh work environments.

Features of Fixed Stationary Freestanding Jib Crane

• Lift capacity: 125kg 250kg 500kg 1000kg 2000kg 3000kg 5000kg 1/2 ton 1ton 2ton 3ton 5ton 10ton(tonne/tn/metric ton/MT)

• Heavy loading weight: 500lbs 1000lbs 2000lbs 2500lbs 3000lbs 4000lbs, 5000lbs

• SWL: 0.5t 1t 2t 3t 5t 10t 1000 pounds 2000pounds 4000 pounds 5000 pounds

• Rotation: 180° 270° 360° degree rotating jib cranes

• Height & Span: 10ft. 12ft. 15ft. 16ft. 18ft. 20ft. 25’ 28’ 30’ 35’

• Height Under Boom (HUB):5ft 6ft 7ft 8ft 10ft 12ft. 2 3 4 5 6 8 9 10 m meters

• Overall Height: 5ft 7ft 10ft 13 ft 15ft 20ft

• Outreach Range: 2m 3m 4m 5m 6m 8m 9m 10m 11m 12m

• Axial Load: 2 tone

• Hoist & Trolley Allowance: 4000lbs

• Base mounted: Yes

• Base plate thickness at anchor bolt: 1 inch

• Coverage: 360° circular rotation

• I beam construction or Hollow section C rail channel profile Or Lightweight aluminum enclosed track design, aluminum profile rails for jib arm/boom

• Powder-coated finish, painted yellow RAL1028

• Heavy duty gusset & base plate

• Rigid box type head section

• Foundations may be required; Foundation Width: 2ft 4ft 7ft.; 5 ton floor mounted jib crane design drawing will be offered by our technical team.

• Anchored bolts must be set in wet concrete ground

• Festoon cable

• Adjustable Collar Style Rotation Stops

• Bolt-On Rotation Stops

• Top Entry Collector Ring & Mounting Plate

• Bottom Entry Collector Ring

• Control: Pendant control or Wireless radio remote control

• Standards: FEM; ASME B30.20; ASME B30.9; ASME BTH-1; CE

• Applicable industries: 3 ton freestanding jib crane for workshops, building material shops, machinery repair shops, manufacturing plant, food & beverage factory, warehouse, workshop, construction works , energy & mining, indoor and outdoor.

All YUANDA electric jib cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.

Underbraced Free Standing 250kg I-Beam Slewing Jib Crane

200Kg Channel Profile Overbraced Freestanding Tie Rod Jib Crane

Underbraced 2 Ton Floor Mounted Pillar Jib Crane

'I' Beam Profile Free Standing Under braced Swing Jib Crane

1 Ton Foundationless Free Standing Work Station Jib Crane

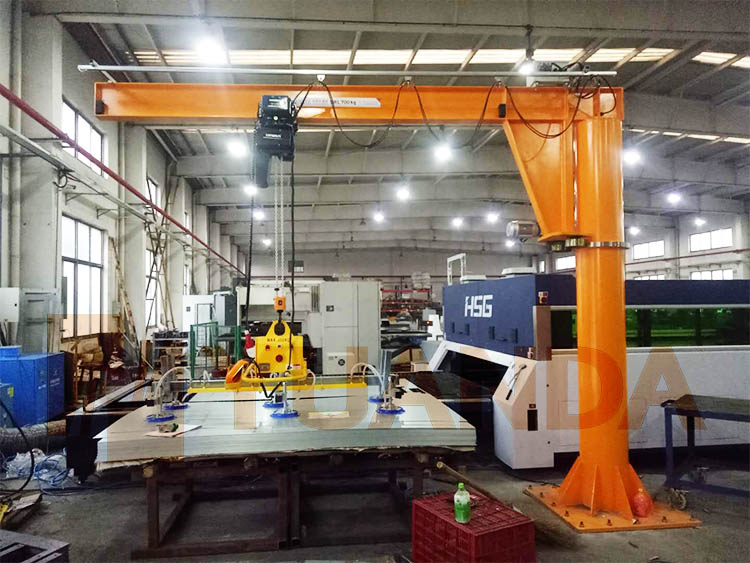

50Kg Freestanding Overbraced Aluminium Profile Jib Crane with Vacuum Lifter

 100 Kg Freestanding Articulated Jib Crane With Smart Wire Rope Balancer

150KG Light Duty Free Standing Jib Cranes

5 Ton Floor Mounted Jib Crane Accessories, Components and Jib Crane Parts

1/2 Ton Floor Mounted Jib Cranes provide 360-degree crane rotation and can be rotated manually or by electric power. The main components of a jib crane includes:

Slewing arm: Boom (I-beam) meets specifications using a 25% factor of rated load for impact and 15% of rated load for hoist and trolley weight. Top entry collector ring assemblies allow for powered rotation of the swing arm.

Hoist: The lifting mechanism of a jib crane. It can be low headroom electric chain hoist, wire rope hoist, manual chain hoist, manual chain block, pneumatic air hoist, pneumatic balancer, lever or ratchet hoist. Hoist brand: Our own brand YUANDA or international top brand such as: Demag, Abus, Kito, KONE, YALE, PLANET, Gorbel, etc.

Pole/Column: Pipe style mast design gives maximum strength and minimum deflection for resistance to bending, buckling, crushing and wear by trunnion assembly.

Jib crane bearing: Top bearing is high quality tapered roller bearing with grease fittings to allow lubrication. Bearings have long design life. Head assembly uses reinforce angle plates to limit compression and buckle stresses.

Floor mounted jib crane foundation: With this type of mounting the freestanding jib crane column assembly is bolted to a pre-poured concrete foundation with embedded anchor bolts. The required reinforced foundation that permanently anchors the crane also acts as the load counterbalance weight. Foundation for crane must be poured to specified size and depth and is solely the customer's responsibility to provide a proper foundation. Our technical team can provide the jib crane foundation design drawing for our clients.

IMPORTANT NOTE: NOT designed for lifting, transporting or supporting humans in any way. Failure to follow specified load and mounting limits can end in serious bodily injury and/or property damage.

Other spare parts of the 0.5ton freestanding jib crane includes: Jib crane slew motor, reducer, bearing, gearbox, festoon system, aluminum rails etc.

Technical Parameters of 1000kg Workstation Freestanding Jib Crane

*500Kg capacity freestanding under braced jib crane specifications may be subject to change without notice

Industrial Applications of 3 Ton Floor Mounted Jib Crane

3T floor-mounted jib crane is a versatile lifting solution designed to handle various material handling tasks within industrial settings. It is characterized by high efficiency, flexibility, and multi-function, and can meet the needs of various complex industrial operations. With its outstanding advantages and practical application value, the 3t freestanding jib crane is widely used at many important industries.

1. Construction field

5 Ton freestanding jib cranes are widely used in building construction. It can efficiently carry out various lifting tasks, such as handling concrete, steel bars, building materials, etc. Through the flexible operation of the cantilever jib crane, a wide range of operations can be realized in a small construction site space, improving construction efficiency and reducing labor costs.

2. Port and logistics field

15 Ton freestanding jib cranes play a key role in ports and logistics. It can realize accurate positioning and efficient loading and unloading of large cargo. The large lifting capacity and cantilever length of the cantilever crane enable it to meet the needs of heavy-duty operations such as loading and unloading ships in ports and container stacking, and improve logistics efficiency.

3. Energy and mining fields

10 Ton floor mounted jib cranes have a wide range of applications in the energy and mining sectors. It can be used to install and maintain wind turbines, solar panels, and more. At the same time, in mine operations, cantilever cranes can be used for mining, loading, unloading and transportation of large ore to improve production efficiency.

4. Bridge and track construction fields

The heavy duty jib crane, such as 10 ton freestanding jib cranes or 15 ton floor mounted jib cranes also play an important role in bridge and track construction. It can be used for installation, disassembly and transportation of various bridge components, track slabs and other heavy materials up to 20 ton. Through the accurate positioning and precise operation of the jib crane, the construction quality and safety can be ensured.

Jib cranes have become important equipment in the industrial field due to their high efficiency, flexibility, and multi-functions. Whether it is construction, port logistics, energy mining or bridge track construction, jib cranes can play their advantages in complex industrial environments, improve work efficiency and ensure safety.

Floor Mounted Jib Crane Types

500Kg freestanding jib cranes are available in various types, each designed for different applications and lifting requirements. The most common types of swing jib cranes include freestanding, foundation, base plate, and articulating cranes.

Freestanding Jib Crane / Floor Mounted Jib Crane

Foundationless floor mounted jib cranes do not require a pre-poured foundation. This Series can be bolted to almost any existing concrete surface and are great in open areas where they can serve several work stations. Existing concrete floor must be a minimum of 6" thick reinforced with a minimum 3,000 psi ( 5 bag mix), ground soil pressure must support 2500 psi. Concrete in and around the area (6' x 6') of the base plate must be free of cracks and must appear in good condition. Freestanding Column mounted pillar jib crane are available in both under-braced and over-braced profiles types. The standard freestanding over braced jib crane, or top braced tie rod jib crane is designed for an area with no headroom restrictions. When available headroom is limited then an freestanding under braced jib crane is designed to maximum height of lift.

Lightweight Freestanding Overbraced Tie Rod Aluminum Jib Crane

Aluminium Jib Crane is lightweight jib with an aluminium profile or aluminum rails for use with an integral hoist trolley. It gives a wide range of motion, which is ideal for high frequency lifting and efficient handling of most types of goods. Light weight aluminum profile boom jib crane design requires minimal start and stop force during operation. Our aluminum jib crane is free standing, floor mounted, which ensures flexible handling and smooth equipment placement.

Foundation Jib Crane

Freestanding foundation mounted Jib Cranes provide higher capacities and longer spans than foundationless jib cranes. This method of mounting bolts the jib crane column to a pre-poured reinforced concrete footer. Foundation Mounted Heavy Duty Pillar Jib Crane is optimal for heavy duty industrial applications with 360 degree rotation.

Floor Mounted / Freestanding Articulated Jib Crane

Floor mounted articulated jib crane, also named as freestanding articulated jib crane, is a type of column mounted jib crane with articulated arms. These articulating jib cranes have two arms that can rotate up to 360 degrees at each pivot point. The ease of rotation from the boom, with the low force required for movement, allow for very fast and precise load positioning. It is ideal for supporting tool balancers, air balancers, hoists, intelligent lift assist devices, vacuum lifters and welding wire feeders

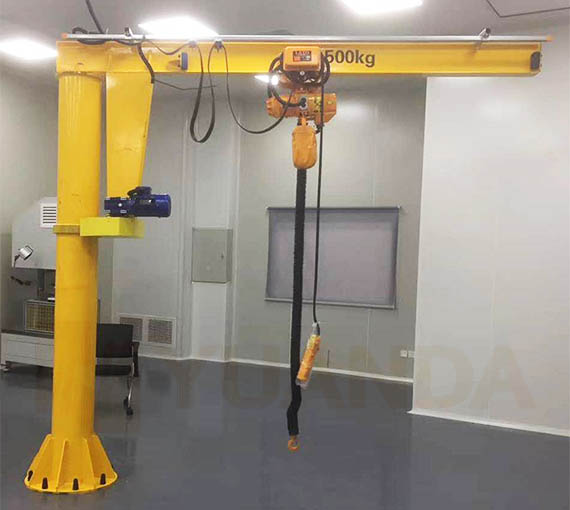

Sometimes, 1t freestanding jib crane for outdoor or some extreme environments, such as hazardous outdoor corrosive marine environment, in cleanrooms, pharmaceutical factory or food shop, can be designed as hot dip galvanized jib crane(zinc coated), stainless steel jib crane or explosion proof jib crane as per specific requirements. Each type of jib crane has its own advantages, and can be customized to meet the specific needs of a particular application. Choosing the right type of jib crane is essential to ensure that the lifting operation is safe, efficient, and cost-effective.

250Kg Floor Mounted Jib Crane Price

How to Choose the Right Jib Crane with competitive price, that is frequently asked questions when choosing a jib crane. There is a variety of factors to consider:

Weight capacity: Lifting a load that is too heavy for your crane is dangerous and creates unnecessary wear and tear on your equipment. However, you also don’t want to spend too much money on a crane with a greater capacity than you need.

Working span requirements: Consider the size of the hoist and the distance the hoist trolley has to travel.

Height under the boom: Factor in the size of the jib crane hoist, lifting distance, and dimensions of the load to decide before buy a freestanding jib crane.

Overall height: Consider the clearance above the slewing jib crane to ensure there are no obstacles near the ceiling that would restrict movement throughout the crane’s rotational angle.

Rotation area: The swivel jib crane’s reach should meet your load-lifting and space requirements.

Weather: If the swing jib crane is mounted outdoors, you may need to weatherize it against rain, snow, and other elements.

Power requirements: Determine how much power you need, and what type of power is required.

Installation costs and requirements: 2000 pounds free-standing jib cranes tend to be more expensive to install, but their increased versatility may be worth it. Choose the crane that is easiest to install and most cost-effective for your operations in the long run.

With diverse configurations and lifting capacities, 5t floor-mounted jib cranes offer a practical solution for optimizing workflow, reducing manual labor, and enhancing overall operational efficiency. We can work with you to design a solution that will fit your operational needs. Contact us for more information now.

0.5Ton Floor Mounted Jib Crane Manufacturer in China

YUANDA is jib crane China supplier and manufacturer offering a wide range of standard floor mounted jib cranes from 500kg to 10 tonnes with spans up to 10 metres, as well as custom jib cranes both designed and manufactured to your exact specifications. Glad to say we have exported to many countries and regions such as Saudi Arabia, Australia, European, United States, Canada, Indonesia, Mexico, Chile, Peru, UAE, Malaysia, Middle East, the United Kingdom, EU, and more. All our freestanding jib cranes are CE certified.

We also offer floor mounted jib crane installation service and can provide complete installation by using our highly trained engineers or just the commissioning, load testing and training. We can offer a package to meet your requirements. Floor mounted jib crane drawings or jib crane design calculation and operation user manual can also be provided by our technical team. Contact us now for floor mounted jib crane price.
