Mobile Portable Jib Crane

1 Ton Portable Jib Crane for Sale

Mobile portable jib cranes are designed with a solid steel base plate and open fork pockets that can be moved by a forklift, fork truck or pallet jack, offering full mobility and quick movement within your workshop. Sometimes the mobile jib cranes also designed with a base with wheels and drive unit. This design eliminates the need to dig a pit and pour a cement foundation as seen with traditional floor mounted cranes or pillar jib cranes. The 0.5 ton portable jib crane on wheels or on rolling rollers is a small and light duty movable jib crane mounted on platform. It is small & light weight lifting equipment, with the features of simple jib structure design, safe &reliable operation, time & energy saving, high efficiency and flexibility, cost-effective.

Portable jib crane, also named mobile jib crane, moveable jib crane, travelling jib crane, is a special slewing jib crane which can move with wheels. Its structure is similar with column jib crane, it can be equipped with electric hoist (electric wire rope hoist, electric chain hoist, manual chain hoist, chain block with trolley, air balancer, rope balancer or zero gravity smart hoist) to complete lifting tasks in workshops, warehouses and factories.

Due to portable design, the mobile cantilever jib crane is widely used for various applications outdoor and indoor, a perfect choice for short distance & concentrated material handling, a good alternative lifting equipment for automatic production line with high efficiency under emergency.

With YUANDA´s portable wheeled jib cranes, you don’t need to commit to a large system, as the mobility allows ergonomic lifts to be used throughout your facility. The usage can change several times a day and as long as there is the availability of a fork truck, the system can be moved and used as needed.

Features of 2 Ton Mobile Portable Jib Crane

• Lift capacity: 500kg 1000kg 1500kg 2000kg 0.25ton 0.5ton 1ton 2ton(tonne/tn/metric ton/mt)

• Heavy loading weight: 1000lbs, 2000lbs, 2500lbs, 3000lbs

• SWL: 3ton 5ton 1/2 ton 1/4 ton 1.5t 1000 pounds 2000 pounds

• Crane feature: Light Weight, mobile, movable jib crane

• Boom rotation: 180° 270° 360°

• Outreach: 2m 2.5m 3m 4m

• Low profile

• Features: Outriggers, counter-balance base

• Base: Counterweight Counterbalance jib crane

• Leveling legs for ease of adjustment

• Aluminum arm profile: LR86, LR113, LR120

• May be combined with hoists, vacuum lifters, grippers, air pneumatic lifters

• Surface Finish: Paint system for indoor use.

• Coating/Paint: corrosion category C2, suitable for minor atmospheric stress

• Polyurethan painting RAL. 1028 on a shot blast structure

• Height & Span: 10ft. 12ft. 15ft. 20 ft. 22’ 25’

• Overall Height: 5ft 7ft 10ft 12ft 13ft 15ft 20ft 2m 3m 4m 5m 6m 8m 9m 10m

• Size of pillar base: 150cm

• Slewing: by hand/electrical

• Coverage/Swivel: 360° Circular Rotation

• I Beam Construction or 'H' section lifting Beam

• Mobile Swing Jib Crane with Underbraced, suitable for low headroom application.

• Electrics IP54 protection grade

• Frame structure FEM

• Ambient Temperature: -20~40℃

All YUANDA Mobile Slewing Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.

500kg Small Portable Jib Crane with Wheels

1000kg Mobile Jib Crane with Electric Chain Hoist in Workshop

80Kg Portable Mobile Articulated Jib Cranes with Intelligent Zero Gravity Smart Hoist

50KG Mobile Swing Arm Portable Cantilever Jib Crane with Vacuum Tube Lifter For Carton Box Handling

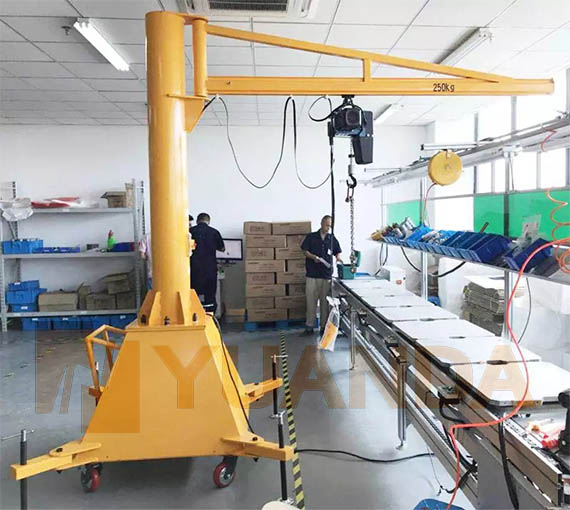

250Kg Portable Base Jib Crane with Electric Hoist

100Kg Portable Mobile Articulating Jib Cranes with Pneumatic Air Balancers

3 Ton Luffing Jib Telescopic Counterbalance Mini Mobile Floor Crane for Mold Handling

2 Ton Counterbalance Type Battery Operated Powered Portable Mobile Jib Crane for Drum Handling

Different Types of Mobile Swing Jib Cranes

Portable mobile swing jib cranes is a new series of small jib cranes with self-supportive jib design, articulated arms or telescopic booms, mounted on wheels and rollers for wide material handling with maneuverability and wide adaptability.

Portable Jib Crane with Base

Mobile jib crane with base is a jib arm mounted onto a base compatible with any forklift or pallet jack, offering full mobility and quick movement within your facility, which is also called portable forkpocket jib crane. It can be combined with both electric hoists, industrial intelligent lift assist devices, tool balancer and vacuum tube lifters. Fixed length I-beam will pivot 360° for complete access. It also can be made as mobile portable articulated jib crane on wheels, which has a pivot point along the jib arm. Under I-beam clearance is custom made as you request. Upright vertical column bolts to a counter-balance base. Steel construction with blue painted finish. Unique concrete filled base design allows for easy transportation of jib crane with a fork truck.

Portable Jib Crane with wheels

The portable jib crane on wheels is a versatile and efficient lifting and material handling equipment designed to provide mobility and flexibility in various industrial and commercial settings. The rolling casters (i.e. nylon/rubber wheels) of a portable jib crane system give the eponymous portability, providing ease of movement to reposition and handle various loads throughout the facility. The motorized jib crane would be an optimal solution for your workshop.

Portable Articulated Jib Crane

Mobile Articulating Jib Cranes can lift loads around corners and columns, reach into or under machinery and containers, and service virtually any point between the pivot anchor and the far reach of the boom. This ergonomic movable articulated jib crane with wheels is perfect for work places that need cranes in several locations.

Mini Small Counterbalance Mobile Floor Jib Crane

Mobile Floor Jib Crane is a small type, battery powered drive and lift (power hoist & power in/out boom) electric crane with counterweight, designed for lifting and moving loads quickly and safely. It is also named as swing portable mini jib crane or electric mini swing jib crane. Leg length is adjustable for added maneuverability or stability. Mini electric mobile floor jib crane features 24V DC drive and lift motors run on (2) 12v batteries for an estimated 3-4 hours of continuous operation. This hydraulically powered counterbalance floor crane has an adjustable boom(telescopic type) to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised with a hydraulic pump by push of a button control on DC powered units. Boom also telescopes out for greater reach. 3 ton telescopic portable jib crane features outriggers for increased stability and a swivel crane for side loading. The counterbalance design eliminates the need for front legs, making the mobile lifting jib crane easier to maneuver and ideal for reaching tight, hard to reach areas.

Our complete line of material handling equipment offers an easy, ergonomic lift and transfer of repetitive loads. Contact us and we can design a solution that optimally fits your operational requirements.

Technical Parameters of Mobile Portable Jib Crane

*5 ton portable base mobile jib crane specifications may be subject to change without notice

3 Ton Mobile Portable Jib Crane Accessories, Components and Jib Crane Parts

A mobile swivel jib crane also known as a portable jib crane, a mobile cantilever crane, or a jib crane on wheels is a lifting machine that uses an electric hoist or manual hoist, either chain hoist or rope hoist as its lifting mechanism which enables loads transportation in any direction. 500kg mobile jib crane and movable jib crane on wheels are your flexible and economical material handling solution

Portable jib cranes with base allow the operator to easily transport the crane using a forklift. The included counter-balance base does not come filled with concrete. Instructions are included on the proper filling of the base with concrete, or it can come pre-filled with concrete for immediate use.

The swing arms can be mounted directly to the portable column and are best when used with both a hoist and vacuum lifting device, called as portable jib crane hoist and vacuum lifter jib crane. The range of motion varies between 180-270° and the arm lengths can be up to 20ft. All of our jib cranes can be combined with any of our lifting equipment such as vacuum tube lifter and pneumatic vacuum lifter, gripper, air balancer hoist, tool balancer, smart hoist, intelligent hoist as well as our electric chain hoists. They are designed with an air pneumatic system, electrical system and power supply to the hoist and main switch.

The small mobile jib crane can be used at many sites with great versatility saving cost of crane construction in different locations and saves workshop floor space. With unique advantages, the small portable jib cranes can be a good choice for light duty material handling. With particular applications and requirements, a customized portable jib crane solutions can be offed at cost-effective crane price.

Mobile Portable Jib Crane Application

Our portable jib crane bases are the ideal solution for applications that will not allow a footing or epoxy bolts installed in a concrete floor or foundation. 1/2 Ton Portable Jib Cranes are perfect for work areas that require the jib to be moved to multiple locations in a facility. Being able to use a 1000kg mobile portable jib crane at different locations adds great versatility and savings by not needing permanent jib cranes at those several locations; and it also saves space on the shop floor. All our Portable Jib Cranes are convertible and can be detached from the base and mounted to the floor. You can use a forklift to move your portable base jib crane to adapt to workflow changes or relocate to another facility. These cranes are also ideal for repetitive load transfers to reduce manual labor.

Mobile jib crane with tyres is a mobile slewing jib crane with infinite slewing range. Due to its compact design, the crane features a maximum lifting height and is perfectly suitable for small and narrow operating rooms. The mobile portable cantilever electric hoist jib crane perfectly meets your requirements since column height and jib arm length can be adjusted individually.

The 1000lbs mobile portable jib crane has been designed for flexible use as crane assisting in the feeding of machines, for temporary maintenance and repair, or as flexible means at assembly and picking places – just where you need a mobile column-mounted slewing jib crane with a capacity of up to 2,000 kg.

Thanks to the counter weight integrated in the crane base, the portable mobile lifting jib crane is completely independent. Neither any fastening to the foundation nor any dowelling of the crane on the concrete floor is required.

With its flexible mobility and wide adaptability, 2000lbs mobile cantilever jib cranes are commonly used in factories, mines, warehouses, workshop production lines, assembly lines, mechanical processing, mould handling, small equipment installation, building material Shops, machinery repair shops, manufacturing Plant, food & beverage factory, construction works, energy & mining industry and so on.

1 Ton Portable Mobile Jib Crane Manufacturer in China

We offer general material handling and lifting cranes. Portable jib cranes can be used in all sorts of industries such as construction, roadwork, automotive, stone fabrication, and so many other fields. Our Cranes include: Wall Cranes, Articulating Cranes, Gantry Cranes, Jib Cranes, and Counterbalance Cranes. We have exported to many countries and regions including Saudi Arabia, Australia, European, United States, Canada, Indonesia, Mexico, Chile, Peru, UAE, Malaysia, Middle East, the United Kingdom, EU, and more. All our jib cranes are CE certified.

2000kgs portable jib crane drawings or mobile jib crane design calculation can also be provided by our technical team. For additional information about the mobile jib crane with wheels, please contact us now for jib crane price.
