Vacuum Lifter Jib Crane

Vacuum Lifter Jib Crane for Sale

This versatile swing jib arm vacuum lifting equipment greatly improves material handling efficiencies, it is most commonly supported from a center post support pillar, but can also be hung from existing steelwork, wall mounted, ceiling mounted, or even as a mobile portable base option. Our swing jib crane vacuum lifters are ideal for coverage of a production area where only one process is taking place. Designed with 360° continuous rotation at two pivot joints, the arm lengths of up to 5 meters, and a safe working load of up to 500kg (1000lbs), our swing jib crane with vacuum lifters move from side to side to provide a wide reach and exceptional load capacity.

We offer different types of vacuum lifter jib cranes to our customers. We have enthusiastic customers wherever production processes need to be made more efficient with the aid of vacuum technology. In order to meet the specific requirements of the various sectors of industry, we offer vacuum handling systems with the following types: vacuum lifter for wood panels, vacuum lifter for stone, jib crane in marble production, jib crane for granite shop and so on.

As an ergonomic lifting solution, vacuum jib crane can help you move your products faster, more ergonomic, and safer. Common uses for vacuum tube jib crane include box handling, drum handling, stacking sheet metal, and moving stone or furniture. China YUANDA can work with you to design and implement a vacuum lifter tool to fit your application. Our solutions have been implemented in many different industrial facilities and workshops for various tasks, including palletizing, de-palletizing, roll and reel handling, lifting ingots, boxing or un-boxing products, and much more.

Features of 100KG Vacuum Lifter Jib Crane for Sale

• Machine type: Pick & Place

• Easy to move pivot bearing

• Low friction transport trolley

• Aluminum jib minimizes the force required

• Surface treatment: Powder coated

• Lift capacity: 20kg 25kg 50kg 100kg 125kg 150kg 200kg 250kg 300kg 350kg 500kg 0.5ton(tonne/tn/metric ton/MT)

• Heavy loading weight: 50lbs 100lbs 200lbs 300lbs 400lbs 500lbs, 1000lbs, 1500lbs

• SWL: 0.5t 0.25t 1000 pounds 500 pounds 50 100 200 300 400 600 800 pounds

• Crane feature: Light weight

• Rotation: 180° 270° 360° degree rotating Jib Cranes

• Height & Span: 8ft. 10ft. 12ft. 15ft.

• Height Under Boom (HUB):5ft 7ft 10ft 12 ft. 2 3 4 5 m meters

• Overall Height: 5ft 7ft 10ft 13 ft 15ft 2m 3m 4m 5m 6m

• Base mounted: Yes

• Base plate thickness at anchor bolt: 1 inch

• Coverage: 360° circular rotation

• I beam construction or Hollow section C rail channel profile or Lightweight aluminum enclosed track design, aluminum profile rails for jib arm/boom

• Aluminum arm profile: LR86, LR113, LR120, C profile

• Heavy duty gusset & base plate

• Foundationless

• Anchored bolts must be set in wet concrete ground

• Festoon cable options includes: entry collector / air swivel, cable / air hose, tagline kit, and wire rope trolleys

• Suctions cups

• Ergonomic design, low maintenance

• 270° coverage

• Gripping of parts made of non-magnetic steel and non-ferrous metals

• Reduced machine-loading times

• Ideal for Sheet Metal Handling From Stack or Storage Systems

• Cut Out Parts in the range of vacuum lifters suction pads can be lifted

• Power source – Battery or Electric powered (Single Phase/Three phase) or Air source pneumatic type

• The vacuum lifter jib crane can be mounted to the floor or a moveable counterweight

• Applicable industries: Building Material Shops, Laser Cutting Machine, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Warehouse, Workshop, Construction works, Energy & Mining

All YUANDA air operated jib cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.

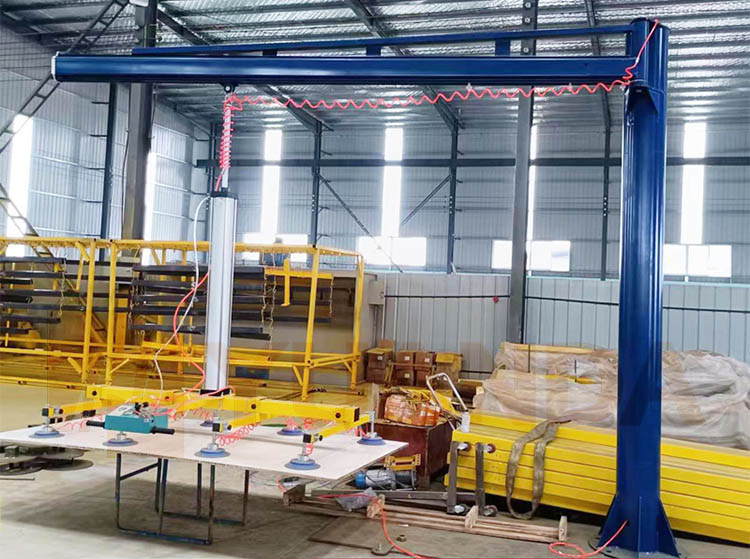

Freestanding jib crane with integrated vacuum lifter for wood panel handling

Lightweight aluminum rail jib crane pneumatic box lifter jib crane

25Kg articulated vacuum tube lifter jib crane for carton box and cement bag handling

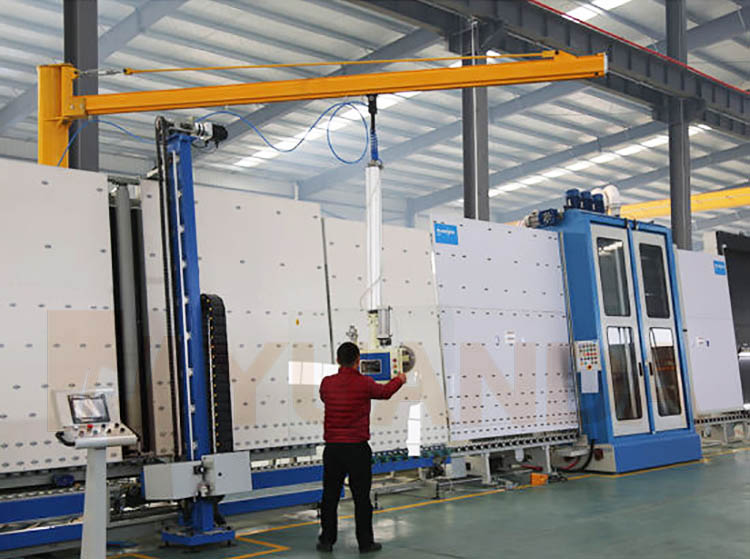

500kg pneumatic cantilever jib crane vacuum glass lifter

1 Ton freestanding vacuum lift jib crane for laser cutting machine to handle steel metal sheet

Floor mounted electric hoist jib crane with air pneumatic vacuum lifting system for wood panel handling

50Kg portable mobile vacuum tube lifter jib crane for carton handling / box handling

1000Kg cantilever arm suction cup jib crane with vacuum lifter for granite marble slab

Different Types of 250KG Vacuum Lifter Jib Crane

Vacuum handling cantilever jib cranes are designed to make lifting efficient, ergonomic and safe for workers. Being mounted to the floor, ceiling, wall or counterbalance base plate, they help prevent injuries caused by lifting and moving heavy loads. YUANDA Crane offers vacuum lifters with crane systems and as a standard vacuum handling solution. Our modern vacuum handling systems provide numerous advantages, are responsive and support ergonomic work. We will work with your company to design and implement a vacuum lifter tool to fit your specific application.

Flexible Articulated Jib Crane with Integrated Vacuum Lifter

Easy handling crane is a series of flexible articulated jib cranes with vacuum lifter integrated in the outer fold jib arm. This articulated arm mobile jib crane has an internal routing of the vacuum and articulated intermediate joint for maximum maneuverability of the lifted item in confined spaces or workstation for quick and easy lifting.

Portable Jib Crane with Vacuum Lifter

It is also called mobile vacuum lifter jib crane, mounted to a moveable counterweight or portable base. For quick and portable lifting, this vacuum handling device uniquely combines a movable jib crane with a vacuum lifter to handle products effortlessly. Adding a mobile platform with wheels or manual pallet truck will allow additional flexibility to move the device between workstations.

Lightweight Jib Crane with Vacuum Lifter

Aluminum jib crane provide the least possible resistance during operations and lightweight crane system is lighter for the user to drag along the jib arm when using it. Stainless steel jib crane is also available.

Wall Mounted Jib Crane with Vacuum Lifter

A tool balancer jib crane has a lightweight design that ensures you receive the most flexible and smooth handling as possible. It can be used to lift heavy metal parts, oddly shaped plastic components, batteries, car parts or electronic components. Effortless and easy by using the wall jib crane with vacuum lifter.

Column Mounted Freestanding Jib Crane with Vacuum Lifter

The pillar jib crane is designed for a vacuum kit or a hoist to be mounted to it. The vacuum head or hoist can then be used to lift and lower goods and items that range from boxes, sheets of plaster, wood, MDF, metal, plastic, glass or slabs of stone etc.

Vacuum Tube Lifter Jib Crane

The pivot articulating jib crane is the optical solution for vacuum tube lifters or pneumatic lifting applications. The articulating arms of the jib crane are designed to support the load and act as sealed vacuum or air tubes. The sealed tubes of the jib eliminate the need for vacuum hoses or air festoon. The vacuum tube lifter jib crane is available in capacities from 50 pounds up to 150 pounds in free-standing or wall mounted configurations. It is ideal to lift boards, panels, bags, cartons, boxes, barrels, wood, etc.

All pneumatic jib cranes can be combined with any of our lifting tools such as the vacuum tube lifter, vacuum slab lifter, vacuum panel lifter, air balancer, vacuum glass lifter, vacuum granite lifter, marble lifter, vacuum sheet lifter as well as a electrical hoist. Vacuum lifter jib cranes are capable of moving a variety of heavy loads and materials, like glass and sheet metal, with a quick pick up and release, with less load preparation time. Regardless of what you need to lift, or where you need to lift, we will help you find the best vacuum lifting system to make lifting easy and efficient.

Technical Parameters of 200Kg Vacuum Lifter Jib Crane

*100lbs vacuum lifter jib crane specifications may be subject to change without notice

Vacuum Lifter Jib Crane Accessories, Components and Jib Crane Parts

• Primary arm + Secondary arm

• Vacuum suction cups

• Vacuum pads

• Special grippers

• Area gripping systems and end effectors

• Mounting elements

• Vacuum generators

• Valve technology

• Switches and system monitoring

• Filters and connections

• Vacuum tube

• Vacuum tools

• Air compressor

• Air hose

• Pump, valves, drives, measuring equipment, suction plates and connections.

Vacuum Lifter Jib Crane Application

A vacuum lifter with jib crane is a safe and reliable tool commonly used in manufacturing and mechanical processing, warehouses and distribution terminals. Vacuum technology secures safe lifting without risk of damaging goods or the operator. It is also available for industries with high sanitary requirements, such as the food and pharmaceutical industry. Cantilever suction cup jib cranes from YUANDA are versatile and are combined with different vacuum lifter for various application, such as marble jib crane, glass jib crane, jib crane for granite, plywood jib crane, etc. Due to their high flexibility, they are optimal helpers for a wide variety of industries.

Vacuum lifters use vacuum power to grip and lift loads. Gripping loads with a suction foot that can easily lift bags, boxes, pails and so much more. You can utilize vacuum lifts for box handling, drum handling, stacking sheet metal, moving stone or furniture. The vacuum technology offers sustainable, safe and efficient handling of most types of goods. Handling difficult and heavy goods such as large wooden panels or car tires is made easy using a vacuum lift assist. Our solutions can be implemented throughout your facility, and can include palletizing, de-palletizing, roll and reel handling, lifting ingots, boxing or unboxing products, and much more, such as vacuum lifter for roof sandwich panels, vacuum block lifter jib crane, vacuum glass lifter jib crane, vacuum tube lifter jib crane.

Lifting systems with vacuum lifters grab the material with vacuum suction pressure allowing for much heavier load handling and manipulation. Materials such as sheet metal, large wood products, and glass can be moved without strapping. Vacuum lifters are especially well suited towards irregularly shaped objects and textures such as boxes, luggage, feed bags, salt bags, corrugated metal, sheet metal, sheets of plaster, wood, MDF, plastic, glass or slabs of stone and more. All industries are covered with this versatile vacuum handling system.

For more details on vacuum lifters for sale, please reach out to our experts for more information specifically about the vacuum pads and how versatile vacuum lifters are for industrial assembly automation. Want to see a versatile vacuum lifter in action? We will send you the video for a foam pad fitted vacuum lifter handles different materials easily.

Vacuum Lifter Jib Crane Manufacturer in China

When lifts are needed continually, a vacuum lifter jib crane is often the best solution. As a vacuum lifter jib crane China supplier and manufacturer, we offer the vacuum lifters with a wide selection of suction feet that can grip most types of components. The vacuum lifters are ergonomic and user-friendly, ideal for high frequency lifting, allowing the operator to lift up to 1000lbs with just one hand. Safe, easy and efficient. We have also exported the vacuum lifting tools and equipment to many countries including: Saudi Arabia, Australia, European, United States, Canada, Indonesia, Mexico, Chile, Peru, UAE, Malaysia, Middle East, the United Kingdom, EU, etc. All our jib cranes are CE certified. Contact us now for 50kg vacuum lifter jib crane price.
