1 Ton Stage Chain Hoist

Stage Hoist Design

The 1000 lbs 500kg entertainment stage hoist is a convenient, easy to use lifting solution. It is perfect for use in theatres, as the sleek black finish easily blends into many environments. The included industrial wireless remote control offers added convenience. The stage hoist is designed as high-quality aluminum alloy casting shell, overall appearance with european design style, easy to install and control, IP56 fully waterproof structure design, safe and stable patented braking system, supporting intelligent operating system, making the performance lifting and hanging intelligent and simple. The stage hoist is mainly suitable for stage construction or mobile performance, stage setting, sound, lighting hanging, exhibition hall, gymnasium, TV station, etc.

Stage Hoist Specification & Features

Item: Stage hoist system, truss motor, chain hoist for stage, electric chain hoist motor

Lift capacity: 500kg, 1000lbs, 1000 pound, 1/2Ton.

SWL(Safe working load): 0.5t 1/2t 1t 2t

Cable gauge: 2.5mm2, 4mm, 6mm, 3 core, 4 core, 5 core wire cable (Truck line/ Snake cable)

Amp: 16amp 32amp 16A 32A 30A plug and socket

Plugs and connectors: L21-30 female plugs, 5pin 7 pin connectors for controller, 3 wire 220v L6-30R

Controller connectors: 4, 6, 8, 10, 12, 24 circuits

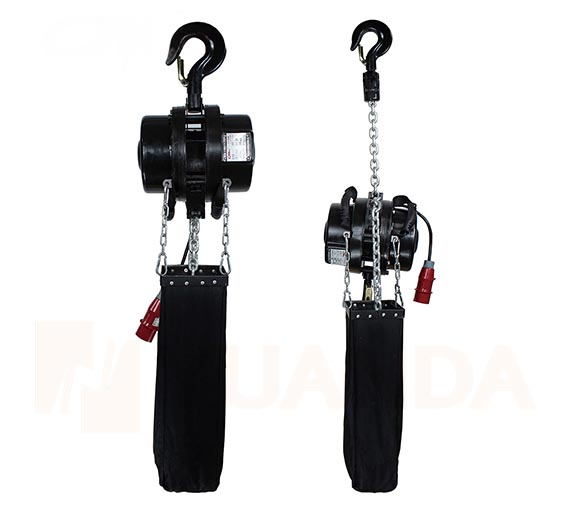

Use in climbing position

ELECTRO-MECHANICAL BRAKES

Electromagnetic brake

5 POCKET LIFT WHEEL

For quiet & smooth operation

68 dB OPERATIONAL NOISE

Low noise emission, a result of the Double Brake System

GEARING

Precision machined gears heat treated for strength and durability

INTERNAL CHAIN GUIDE

PVC black coated for quieter operation

Galvanized (Hot-dip galvanizing) or black phosphated load chain DAT according to DIN EN 818-7

DACROMET coating, an excellent corrosion resistant coating treatment.

10:1 MECHANICAL DESIGN FACTOR

14:1 LOAD CHAIN DESIGN FACTOR

Double limit switch

Optionally with gear limit switch and incremental encoder as well as sturdy and ergonomic plastic handles

Electronic load measuring according to DGUV V17 standard (former DGV C1)

OVERLOAD PROTECTION

Rated operational range between 125 and 150/160%. Clutch is outside the load path when disconnected from power.

METRIC RATED LOAD CHAIN

G80 grade lifting chain. Zinc plated to protect against corrosion.

CHAIN BAG

Easy-to-Mount Cloth Type Bags

CHAIN STOP

Mounted on load chain to prevent overtravel.

Standard on Direct Control

Stage Electric Chain Hoist 500kg / 1000kg Stage lighting Motor Hoist

2 ton 12m Stage Electric Chain Hoist for Stage Truss / Stage Truss Hoist 1000pounds

Stage Hoist Components & Accessories

Theater hoist system is a light and small lifting equipment. It consists of electric motor, transmission mechanism and sprocket. The motor hoist is durable. The internal gears are all quenched at high temperatures, which increases the wear resistance and toughness of the gears.

Shell

High quality casting steel, light weight. Anti-corrosion, rust-proof.

LIMIT SWITCH

Adjustable screw limit switch that will automatically stop the hook at any predetermined point when either hoisting or lifting.

Over travel protection, lower and upper limits (factory preset)

CHAIN GUIDE

Stamped Steel guide coated for corrosion resistance and quiet operation, while keeping the load chain and liftwheel aligned.

BRAKE

Heavy Duty AC Brake design. New electromagnetic disk brake.

LIFT WHEEL

5 Pocket Liftwheel increases chain and liftwheel engagement while providing smoother lifting, less vibration and reduced chain wear when properly maintained.

CONTROL PANEL

Provides easy access to controls, plug & play connectors allow for quick voltage change for dual voltage motors. Fuses located on terminal strip (optional).

LOAD CHAIN

Sizes available from 1/4 in. to 5/16 in. Meets or exceeds many national and international standards. Zinc plated supplied as standard. Black phosphate finish available. 100% proof tested.

Load chain in compliance with European Standard EN 818-7 (optional).

Mounting brackets

Brackets for Wide I-Beam (60-150 mm Flange base) / Pipe

Note: Unistrut Channels, I-Beams or steel pipes must be in line with the stage hoist. Please contact YUANDA for special mounting solution requirements.

Stage Hoist Applications

Chain motors are used in the entertainment industry for rigging in sound, lights and securing truss systems.  You will find stage hoists in theaters, all types of arenas and sporting venues.

Exhibitions/Museums • Shopping centers • Hotels • Congress/Multipurpose Halls • Concert halls • Trade fairs • Open air events • Party-Locations • Schools • City Halls • Sports arenas • Theaters • TV-Studios • Amusement parks

How to Select The Right Type of Stage Hoist?

The stage hoist we produce is under strict quality control and inspection by our specialists in order to ensure a safe and efficient operation for your entertainment application. If you are unsure as to which type of stage hoist is right for you, the following factors shall be considered when selecting your electric chain hoist.

Rated load capacity

Outdoor or indoor application

Lifting height/Chain length

Type of load or material

Working environment

How many pieces of the stage hoist shall be worked synchronously?

Electric Power supply: 3 phase 380V 50Hz?

Other requirements

Stage Hoist Manufacturer in China

YUANDA is a leading electric stage hoist manufacturer in China, supplying various of hoisting equipment for the stage and entertainment industry to our distributors and directly to end users both in China and overseas. We ship all over the world including the United States, Canada, Indonesia, Mexico, Chile, Peru, UAE, Middle East, the United Kingdom, EU, and more.

Contact us now for stage truss motor hoist price.
