100Ton-150Ton Straddle Carrier

100 Ton Straddle Carrier for Sale

Straddle carrier is one type of rubber-tyred gantry crane (RTG crane), which are highly valued for their exceptional mobility and adaptability. Equipped with large rubber tyres, they can effortlessly navigate various terrains, from rugged construction sites to smooth public roads. These carriers excel in transporting heavy precast bridge components with precision and ease, making them indispensable for bridge construction. Their versatility allows them to handle the diverse terrains within construction sites effectively. Furthermore, their user-friendly controls and straightforward operation ensure efficient material handling, establishing them as a reliable choice for road and bridge construction projects. They are also called straddle trucks or shuttles.

100 ton rubber tyred straddle carrier find application in various industries, including precast, oil&gas, nuclear, aeronautical, aluminium, marine, highway, construction, building materials, logistics, metals, plastics, steel, timber, warehousing, tunneling and rail industry, renewable green energy industry, and represent the ideal solution for handling of raw materials and finished products. For example, the 100T rubber tyred straddle carrier is the ideal lifting equipment to be used in various engineering projects to lift and transfer prefabricated concrete beams, assembling or maintaining heavy loads, and positioning pipelines. Commonly, we can design it as single girder or double girder gantry crane straddle carrier. We offer customized crane project service which can fit all your needs.

120 Ton Rubber Tyred Straddle Carrier Features & Advantages

Rated load capacity/ SWL/ WLL: 100 110 120 130 150 160 180 Ton/TN/Tonne/Metric ton.

Span(Width): 6m 8m 10m 12m 14m 15m 16m 18m 20m 22m 24m 25m 26m 28m 30m 32m 35m 36m 38m 40m

Lift height: 6~12m

Heavy load weight: 100T 120T 150T straddle carrier

Container spreader, chains, hooks, magnets, lifting beams, clamps, multi-lifting point attachment and other special lifting devices can be equipped on the rubber tyre straddle carrier to handle the container, steel coil, long concrete beams and bridge girders, hollow core, wall panels, pillars, granite and marble blocks, plates, slabs, metal structure, precast concrete elements, rod bars, pipes, compressed pressure tanks(LNG LPG CNG), ISO tanks etc.

Independent and electronically synchronized winches

Electric power supply or diesel engine or EV lithium iron battery powered

Engine emission standard: Euro Stage III IV V

Latest Hydrostatic drive technologies, variable motor speeds and integrated power management reduce operating costs and increase eco-efficiency, step-less speed change, smooth movement.

Driver's room and wireless remote control for real-time operation.

Application of crane: The 150 ton straddle carrier is for precast beams, bridges, shipping container, battery energy storage container system, lumber, transformer, steel sheet, cable barrels, concrete mold, steel structure, stone, prefab container house, jumbo manufacturing parts, concrete slab, cylindrical parts, pipelines, tubes, general manufacturing, etc.

2 pieces of 180 ton straddle carriers(Twin) can work together, they can be operated in tandem mode enabling the moving of extremely long and bulky loads such as wind turbine blades or precast concrete pipes & beams.

100 Ton Rubber Tyre Straddle Carrier for sale

100 Ton Rubber Tyred Marine Boat Yacht Straddle Carrier for Marina

150 Ton Rubber Tired Straddle Carrier for Prefab Modular Concrete Beam

110 Ton Mobile Straddle Carrier Crane for Precast Concrete Construction

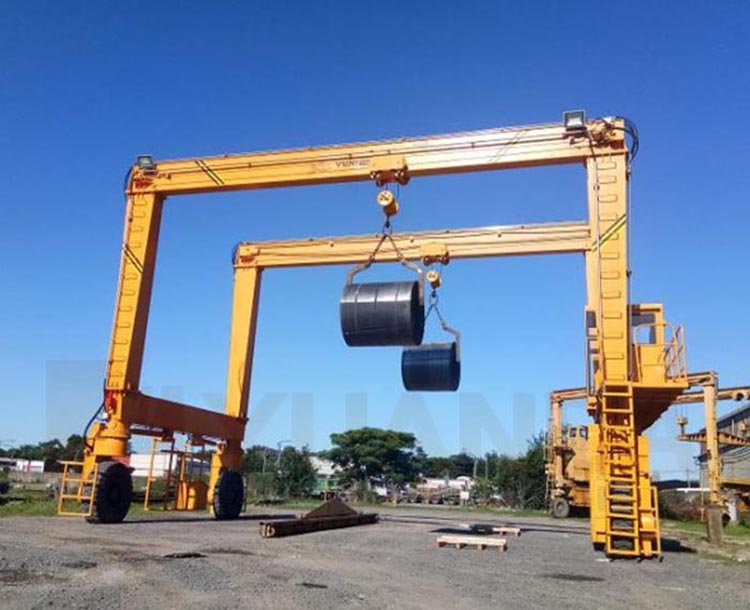

180 Ton Rubber Tyred Straddle Carrier Self Propelled Gantry Crane for Steel Coil Handling

100 Ton MG Type Mobile Gantry Crane Straddle Carrier on Construction Site

120 Ton Mobile Straddle Transporter on Tyres to Handle and Transport Precast Concrete Elements

150 Ton Straddle Carrier Spare Parts and 150 Ton Straddle Carrier Components, Accessories

The 180T straddle carrier is used at workshop, factories, sea port, quay side, marinas, shipyard, steel mill, high speed railway, casting yards, storage areas and construction sites such as road, bridge, tunnels, overpasses, building construction and precast concrete manufacturing in prefabrication yard. Our 150 ton straddle carrier for sale equipped with the most advanced systems and spare parts, which can effectively reduce maintenance costs and make it a long service life.

 The 110 ton industrial straddle carrier adopts full hydraulic drive, including the traveling mechanism, steering mechanism, and lifting mechanism. The main hydraulic components inducing hydraulic pumps, motors, and reducers are all imported world famous brand products, which make the whole machine has strong reliability and good work performance. And the machine is equipped with low fuel consumption, large torque reserve coefficient diesel engine, which greatly lowers the carbon emissions. The 120 ton straddle carrier mounts on rubber tyres, the operating mechanism has the functions of transverse running, longitudinal running, and 360° rotation with the geometric center of the vehicle as the center, forward, backward, and braking. It also features reasonable load distribution, four-wheel support, four-wheel balance and hydraulic brake.

The 130 ton straddle carrier has a high-quality full hydraulic system for both lifting and traveling. The lifting mode adopts a synchronous lift control system and is equipped with leveling device to ensure the synchronous lifting and lowering of the load, the stroke of the hydraulic lifting cylinder is detected by the pull rope sensor to protect the lifting safety. The automatic control system adopts advanced electro-hydraulic technology, and the control actions of all systems are completed by solenoid valves.

We also have other types of straddle carrier spare parts for sale, such as straddle carrier tire, lift chains, straddle carrier cab, trolley, pulley, electric hoists, diesel engine, straddle carrier wheels, electric winches, wire rope, cylinders and hydraulic components. Contact our sales representative now if you need any.

Technical Parameter of Rubber Tyred 150 Ton Straddle Carrier

*150 Ton straddle carrier specifications may be subject to change without notice.

Applications of 150 Ton Straddle Carrier

Generally, the 160 ton straddle lift crane is used for handling oversize and heavy material. The heavy load straddle carrier crane can be used for various industries such as civil engineering, infrastructure, steel industry, wind tower energy, modular house building, etc.

Bridge Construction Project (HSR, LRT, MRT, etc. projects): Civil engineering straddle carrier is designed for handling of rebar cages, lifting and storing of precast girders at casting yard or prefabrication plant, lifting and erection of precast concrete bridge segments, etc. For these applications, this crane is also called precast concrete bridge straddle carrier, slab handling straddle carrier and bridge deck straddle carrier and so on.

Subway Tunnel: Remove residue soil at Taphole, usually with quite big lifting height /depth.

Wind Farm: Wind power handling. The straddle carrier is used for lifting and transporting wind mill power generators or rotor blades for the Windmill Energy Towers.

Shipyard: Ship hull block transferring, joint and turnover on the dock. The boat yacht straddle carrier is used at marina for lifting boat out of water.

Sea Port: Straddle carrier is capable of handling cargo, containers, materials to barge/ship.

Manufacturing factory/workshop/storage yards: Lifting & handling of heavy parts, equipment, machinery, tank, prefab container house, etc.

We have various models of T beam straddle carriers for sale. Call today and let our company engineer the right straddle crane for your special applications.

150 Ton Rubber Tyred Straddle Carrier Manufacturer in China

As a 150 ton straddle carrier manufacturer and supplier in China, our company are committed to creating value for our customers and provide with competitive straddle carrier price and customized straddle carrier crane solutions. We have exported the 100ton straddle carrier crane to Saudi Arabia, Australia, European, United States, Canada, Indonesia, Mexico, Chile, Peru, UAE, Malaysia, Middle East, the United Kingdom, EU and more countries. All our rubber tired straddle carrier are CE certificate.

160 Ton rubber tire straddle carrier’s design drawings, user manual, maintenance manual and installation guide instructions can also be provided by our technical team. Contact us online now.
