Straddle Carrier

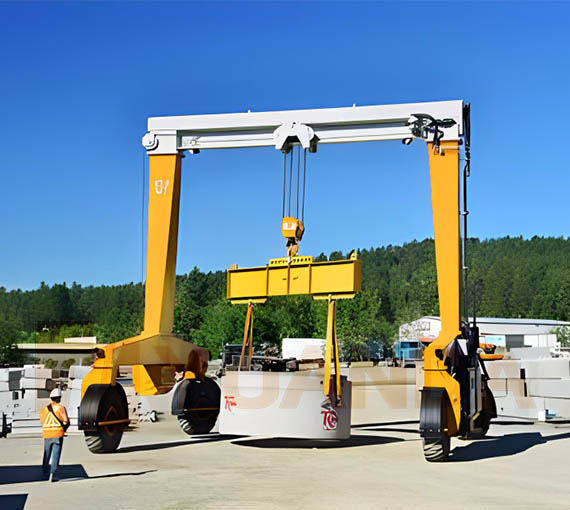

20 Ton Straddle Carrier
The 20 ton straddle carrier has pneumatic tyres and it can stack containers up to three high in the storage area of a container terminal.
Lifting capacity: 20 Ton(tonne)
Models: MG Gantry, Container handler
Travel speed: 50~130m/min(Empty load/Full load)
Hoisting capacity under spreader: 20T
Rotation angle of spreader: ±5 °
Wheel quantity: 3 wheels, 4 wheels
Power supply: Diesel generator / Electric / Lithium battery
Control method: Wireless radio remote control, driver cab control
Ambient temperature: -20~40℃
20 ton straddle carrier supplier type: China manufacturer
20 ton straddle carrier price: $110,000~$160,000
20 Ton Straddle Carrier
20 Ton Straddle Carrier for Sale
A 20 ton container straddle carrier handler or straddle truck is a freight-carrying vehicle that carries its load underneath by "straddling" it, rather than carrying it on top like a conventional truck or reach stacker. The advantage of the container handling straddle carrier crane is its ability to load and unload without the assistance of cranes or forklifts. The lifting apparatus under the carrier is operated by the driver without any outside assistance.
Mobile straddle carrier container crane is a kind of special container crane with the lowest operation cost, which is specially used for container loading and transportation in small and medium-sized container freight yards, intermodal storage yards and small and medium-sized enterprises. And 20 ton rubber tyred straddle carrier gantry cranes are much faster than other cranes, making them great tools for improving turnaround times and work efficiency. The 20 ton rubber tire container straddle carrier find application in different industries, such as precast, oil&gas, nuclear, aeronautical, aluminium, marine, building materials, logistics, metals, plastics, steel, timber, warehousing, tunneling and rail industry, renewable green energy industry, and represent the ideal solution for handling of raw materials and finished products.
If you have any questions pertaining to your unique container lifting requirements, please contact our sale representative online now.
20 Ton Rubber Tyred Container Straddle Carrier Features & Advantages
Model Number: MG, ML, SC, SB, MST
Rated load capacity / SWL/ WLL: 20T, 20Ton, 20tn, 20 metric ton.
Heavy loading weight: 20 ton
20’, 30’, 40’, 45’ container sizes to be handled.
ISO 14829 - Freight containers - straddle carriers for freight container handling
Span(Width): 6-36m
Lift height: 6~12m
Container spreader, hooks, chains, lifting beams, clamps and other special lifting devices can be equipped on the container rubber tyre straddle carrier to handle the container, steel coil, metal structure, concrete beams, prefabricated modular house building, wind power tower, cable barrels, rod bars, pipes, compressed pressure tanks(LNG LPG CNG), ISO tanks etc.
3 wheel hydrostatic drive
All 4 wheels steering (hydraulic system). The tires of this container gantry crane can rotate 90° and move obliquely at 20° and 45°.
Tipping a container to 50 degrees
Front & rear independent side shift for easy twistlock alignment
For quay container transport, stacks in narrow aisles
Telescopic feature outstanding for moving from indoor to outdoor
Can travel fully loaded
Electric power supply or diesel engine or EV battery opertaed
Power: Internal Combustion
Engine emission standard: Euro Stage III IV V
Compact design, telescopic column type
Latest drive technologies, variable motor speeds and integrated power management reduce operating costs and increase eco-efficiency
Reduced maintenance thanks to direct drive units, high-quality components
Custom configurations for each specific application
Automation system available on request
Rubber tire straddle carrier is the cost effective solution for handling containers & oversized loads
Intermodal Container: 20ft 40ft 45ft container
Application of crane: The 20ton straddle carrier is for handling shipping containers, ISO tank, precast beams, bridge girders, prefab container house, steel sheet, steel structure, wall panels, rebar cage, lumber, transformers, stone, concrete slab, granite, general manufacturing, etc.
20 Ton Container Lift Straddle Carrier for sale
20 Ton 4 Wheels Rubber Tyred Straddle Carrier for Containers
20 Ton Sea Port Container Straddle Carrier Crane price
20 Ton Rubber Tyred Marine Boat Yacht Straddle Carrier
20 Ton Straddle Carrier for Prefab Modular Concrete Beam
20 Ton Mobile Straddle Carrier Crane for Precast Concrete Construction
20 Ton MG Mobile Gantry
20 Ton GP Type Mini Mast Container Handling Straddle Carrier Gantry Crane
Technical Parameter of Rubber Tyred Straddle Carrier 20ton
Model | 20 Ton Straddle carrier, Mobile Gantry, Container handler |
Lifting Capacity (under spreader)(t) | 20 ton, 20 tone, 20T straddle carrier for sale |
Work Duty | Heavy duty |
Span (m) | 23, 47 |
Lifting Height (m) | 5~17.8 |
Stack Layers/Passing Layers | 3/4~5/6 |
Container Model | 20′, 30′, 40′, 45′, 20ft, 40ft, 45ft, 20 feet, 40 feet, 45 feet |
Spreader Rotating Angle | ±5° |
Hoisting Speed (m/min) | 13/26, 23/52, 12/18, 18/28 |
Cross Travel Speed (m/min) | 24, 50, 70 m/min frequency control |
Long Travel Speed (m/min) | Full Load-20/90, Without Load-40/130 |
Crane Turning Degree | Straight travel, oblique travel, 90° in-situ steering |
Max. Wheel Load (KN) | 310 |
Total Rating (KW) | 110, 150, 230 |
Certification | CE ISO UL SGS |
Control | Driver Cabin Control / Wireless Remote Control |
Power Supply | AC, Electric, Diesel Engine, Electric-disel Engine, Hybrid power |
Features | Multi-functional, lighter operating weight, Low pressure on the ground Equipped with specialized spreaders to lift standard-sized 20GP, 40GP, 45HQ containers and hydraulic storage tanks. |
Safety device | Buffer, Current overload protection, Power failure protection, Automatic rectify deviation control, Weight overload protection device, Lifting limit switch, Traveling limit switch, Voltage lower protection function, Emergency stop system Lighting system, Audio and video alarm system |
Application area | Vessel assembly warehouse, machinery manufacturing workshop or outdoor storages, tubbing handling etc. |
Straddle carrier cost | $120,000~$160,000 |
*Heavy load straddle carrier specifications may be subject to change without notice.
Different Types Of 20 Ton Rubber Tyred Straddle Carrier
20T straddle carrier comes into many different types for virous applications. Sorted by working sites, the 20ton straddle carrier is available in construction straddle carrier, marine straddle carrier, civil engineering straddle carrier, container terminal straddle carrier and yacht straddle carrier for lifting boat out of water.
With different travelling mode, there are 3 wheel straddle carrier, 4 wheel straddle carrier, 8 wheel straddle carrier and more.
According to power source, the sea port straddle carrier produced as motorized electric straddle carrier, EV battery powered straddle carrier, or diesel engine straddle carrier for your option. For lifting different types of loads, there are small boat straddle carrier, bridge straddle carrier, T beam straddle carrier, concrete slab handling straddle carrier. For wind power handling, the multifunctional straddle carrier is used to lift wind mill power generators or rotor blades for the windmill towers.
Benefits from its flexibility, the automated straddle carrier is widely used at sea port terminals, dock, quay side, shipyards, container railyards, railway freight station, outdoors, construction site, hydro-power station, precast concrete industry, construction projects, marble plant, steel mills, assembly factory, machining & mechanical workshop, warehouse, etc.
As a leading straddle carrier manufacturer and supplier in China, we have different models of 20 ton straddle carriers for sale. Depending on the places and environmental conditions where the transporter straddle carrier gantry cranes are employed, we will design the best container handling solution for your business. Contact us now for more details of our container handling equipment series.
20 Ton Straddle Carrier Spare Parts and Straddle Carrier Components, Accessories
Our company provide both entire engineered industrial straddle carrier and straddle carrier components, accessories as request. We have 20 ton straddle carrier spare parts in stock, such as straddle carrier tire, straddle carrier cab, straddle carrier wheels. If you want to buy straddle carrier, please contact us for more information.
