200Ton-250Ton Straddle Carrier

200Ton Straddle Carrier for Sale

Straddle Carriers are lifting cranes mounted on tyres often used to replace gantry cranes and truck cranes for lifting and handling heavy loads in casting yards, construction sites, prefabrication plant, factories, container storage areas, ports, marinas, warehouses or depot. YUANDA 200T Straddle Carriers are equipped with reliable systems of hydraulic equipment, winches, ropes, and electric and hydraulic motors. These highly mechanized machines come complete with emergency features and safety switches to ensure safe use while handling heavy loads.

Compared to normal gantry cranes which move on fixed rails(Rail Mounted Gantry Crane), the Straddle Carrier Crane has the flexibility to lift and steer heavy loads in any direction on motorized wheels. It is able to turn the axles through 90 degrees whilst fully loaded for an on the spot 90 degree direction change. Multiple straddle carriers can be used together to handle long loads, with central control. The axles of the straddle carrier are hydraulically linked for even loading and are articulated to cope with uneven ground without generating additional loads in the tyres.

These 250 Ton Straddle Carrier Cranes are mainly employed for handling long concrete beams and bridge girders, T beams, pipes, hollow core, walls, pillars, granite and marble blocks, plates, slabs, aluminum coils, etc. All of our machines are tailor-made to meet customer's requirements. Contact us now for more details of the 250 ton straddle carrier for sale.

200T Rubber Tyred Straddle Carrier Features & Advantages

• Rated load capacity/ SWL/ WLL: 200 220 230 250 260 280 Ton/TN/Tonne/Metric ton

• Span(Width): 6m 8m 10m 12m 14m 15m 16m 18m 20m 22m 24m 25m 26m 28m 30m 32m 35m 36m 38m 40m

• Lift height: 6~15m

• Heavy load weight: 200ton 250ton

• Container spreader, chains, hooks, magnets, lifting beams, clamps and other special lifting devices can be equipped on the 220 ton rubber tyre straddle carrier to handle the container, prefabricated houses, steel coil, metal structure, transformers, precast bridge segment, rod bars, pipes, compressed pressure tanks(LNG LPG CNG), ISO tanks etc.

• Power supply: Diesel generator / Electric / EV Lithium battery / Lithium iron phosphate battery(LFP)

• Engine emission standard: Euro Stage III IV V

• Latest Hydrostatic drive technologies, variable motor speeds and step-less speed change, smooth movement.

• Driver's room and wireless remote control for real-time operation.

• Application of crane: The 250t straddle carrier is for precast concrete beams, bridges, concrete mold, stone, shipping container, prefab container house, jumbo manufacturing parts, concrete slab, prefabricated beams, concrete parts, tanks, wind power towers, cable barrels, cylindrical parts, pipelines, ISO tank, boat, yacht, sea port terminal, general manufacturing, etc.

• 2 pieces of straddle carriers(Twin) can work together, they can be operated in tandem mode enabling the moving of extremely long loads such as wind turbine blades or precast concrete pipes & beams.

• Low requirement for concrete pavement design

• Electric power supply or diesel engine or EV battery powered or LPG gas powered

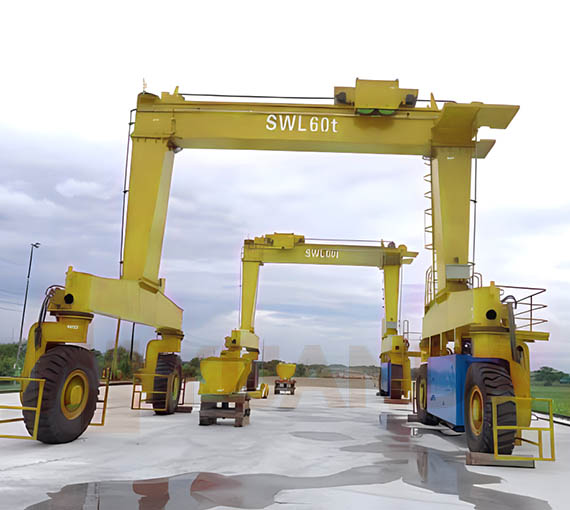

200 Ton Rubber Tyre Civil Engineering Straddle Carrier for sale

200 Ton Rubber Tyred Boat Yacht Straddle Carrier for Marine Application

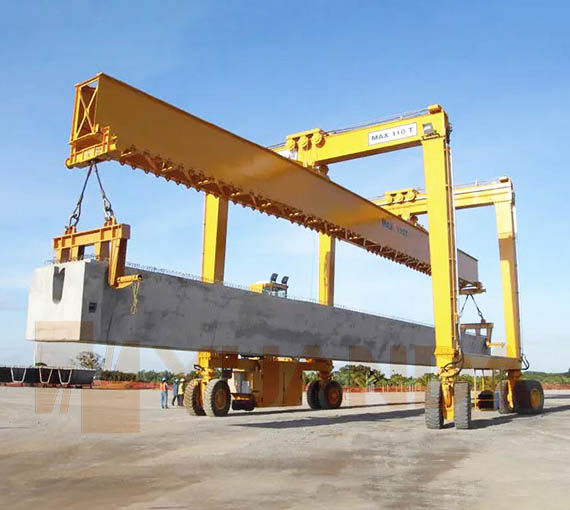

250 Ton Rubber Tired Straddle Carrier for Prefab Modular Concrete Beam

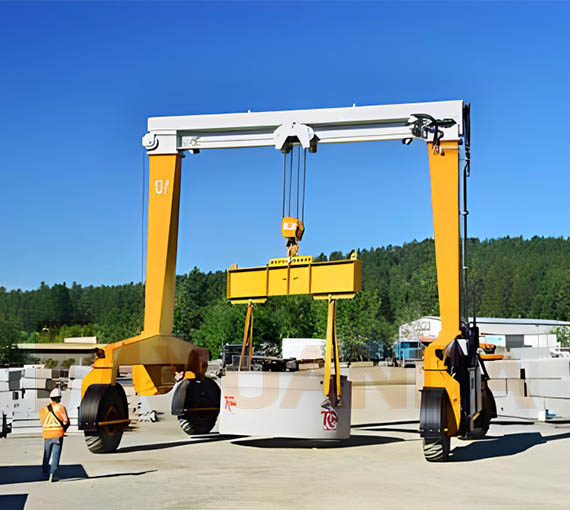

230 Ton Mobile Straddle Carrier Crane for Precast Concrete Bridge Construction

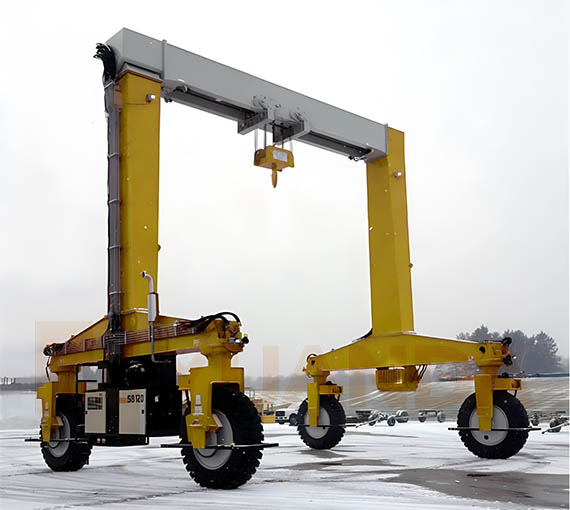

260 Ton Rubber Tyred Straddle Carrier Self Propelled Gantry Crane

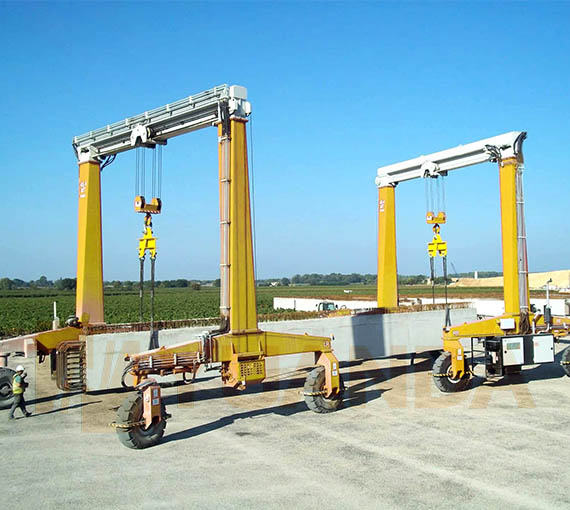

2 Two Straddle Carriers(Twin) Can Be Used Together in Tandem Operation to Handle Long Loads

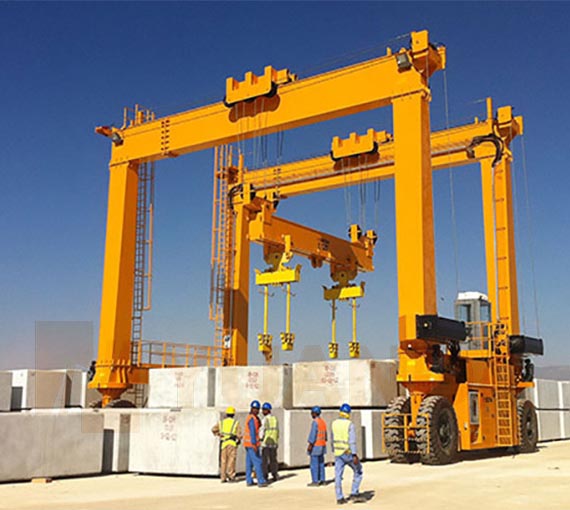

200 Ton Rubber Tyre Mobile Straddle Transporter to Handle and Transport Precast Concrete Elements

Technical Parameter of Rubber Tyred 200 Ton Straddle Carrier

*250 Ton automatic straddle carrier specifications may be subject to change without notice.

250 Ton Straddle Carrier Spare Parts and 250 Ton Straddle Carrier Components, Accessories

YUANDA 230 Ton Straddle Carriers are equipped with reliable system consisted of hydraulic powered winches or electric winches, hydraulic motors, hydraulic powered rubber wheel, diesel engine, generator and centralize PLC programmable control system. This single beam rubber-tired gantry crane comes complete with emergency features and multiple breaking systems for safe operation when handling heavy loads.

Components of a Straddle Carrier:

Frame and Chassis: The steel frame and chassis provide the structural integrity of the straddle carrier, serving as the base for all other components.

Wheels or Tires: 260 Ton straddle carriers are equipped with wheels or tires that allow them to move both horizontally and vertically. The design of the wheels depends on the type of straddle carrier, with rubber-tired or rail-mounted options available.

Lifting Mechanism: Civil engineering straddle carriers are equipped with a lifting mechanism that includes spreader beams or lifting attachments. This mechanism is responsible for hoisting heavy loads, such as containers or bridge components.

Power Source: Diesel engine straddle carriers are typically powered by diesel engines for heavy-duty applications. Some models may use electric motors for indoor or emission-sensitive environments.

Hydraulic System: A hydraulic system controls various functions of the hydraulic straddle carrier, including lifting, lowering, and steering. It provides the necessary force for moving and positioning heavy loads.

Steering System: Electric straddle carriers have a steering system that allows them to maneuver in different directions. The type of steering can vary; rubber-tired models use conventional steering, while some articulated models have advanced steering systems for enhanced maneuverability.

Operator Cabin or Controls: An operator cabin or control panel provides the operator with a workspace to control the straddle carrier's movements, lifting operations, and safety systems

At YUANDA, we have a full listing of straddle carrier spare parts for sale, including straddle carrier tire, lift chains, multi-lifting point attachment, straddle carrier cab, trolley, pulley, electric chain hoist, straddle carrier wheels, wire rope, independent and electronically synchronized winches, cylinders and hydraulic components. Please feel free to contact us to get instant help!

Applications of 200 Ton Straddle carriers

The 220 ton straddle carrier is used at workshop, factories, sea port, marinas, shipyard, quay side, steel mill, high speed railway, prefabrication yards, precast plant, storage areas and construction sites such as road, bridge, tunnels, overpasses, building construction and precast concrete manufacturing. They are also known as straddle trucks, shuttles or mobile straddle transporters. Typically, straddle carriers find several important uses in construction due to their versatility and heavy lifting capabilities. Here are different applications of straddle carriers in construction:

Material Transport: Civil engineering straddle carriers are commonly used for moving bulky construction materials within a job site. They can transport items like steel beams, steel sheet, lumber, pipes, and precast concrete components efficiently, reducing the need for manual labor and speeding up construction processes. They are also named precast concrete bridge straddle carrier, T beam straddle carrier or slab handling straddle carrier.

Heavy Machinery Handling: Rubber tyred straddle carriers can lift and move heavy construction machinery such as excavators, bulldozers, and cranes. This is particularly valuable when repositioning or relocating machinery within a construction site.

Storage and Stacking: 260Ton straddle carriers are adept at stacking and storing materials and equipment. They can neatly arrange items in designated storage areas, optimizing space utilization and organization on construction sites.

Load and Unload Trucks: 280 Ton straddle carriers are used to load and unload construction materials onto trucks for transportation to and from job sites. This streamlines logistics and reduces the time and effort required for manual loading and unloading.

Precast Concrete Placement: In projects involving precast concrete elements like wall panels, prefab concrete blocks or precast beams, construction straddle carriers are employed to lift and precisely position these heavy components into place. This ensures accuracy and efficiency in construction engineering tasks.

Steel Erection: Electric straddle carriers are valuable during steel structure erection. They can lift steel columns, beams, and trusses into position, assisting in the assembly of steel-framed buildings and structures.

Bridge Construction: In road and bridge construction, bridge deck straddle carriers are used to handle and position large bridge sections, girders, rebar cages and precast concrete segments. Their stability and lifting capacity make them crucial for such projects.

Pipeline Installation: Diesel engine straddle carriers are utilized in pipeline construction to transport and position sections of steel pipes and tubes. They ensure the precise alignment of precast concrete pipes, reducing the risk of misalignment during installation.

Utility Infrastructure: Either single beam or double beam, the heavy load straddle carriers are instrumental in the installation and maintenance of utility infrastructure, including handling and placing water pipes, sewer pipes, and electrical conduits.

Wind power handling: For renewable green energy, the heavy duty straddle carrier is used for lifting and transporting wind mill power generators or rotor blades for the Windmill Energy Towers in wind farm.

Demolition Work: In demolition projects, straddle carrier cranes help remove debris and heavy materials from demolition sites, improving safety and efficiency during cleanup operations.

Marine Application: The boat yacht straddle carrier is used at marina for lifting boat out of water.

YUANDA 260 ton straddle carrier find application in different industries, including precast, oil&gas, nuclear, aeronautical, aluminium, marine, building materials, logistics, ship building, metals, plastics, steel, timber, warehousing, tunneling and rail industry, renewable green energy industry, and represent the ideal solution for handling of raw materials and finished products.

250 Ton Rubber Tyred Straddle Carrier Manufacturer in China

YUANDA Heavy Industry has involved in the design and manufacturing of bridge erection equipment and gantry crane over 20 years. Our company provide series of customized construction crane solutions and equipment to the world, which cover straddle carriers, launching gantry, beam launchers, tyre trolley, MSS, form traveler, portal crane, overhead crane and gantry cranes. They are widely used for LRT, MRT, Metro, Railway, Highway, Viaduct, interchange, cable-stayed bridge, and formwork construction. The 200ton straddle carrier cranes have been exported to Saudi Arabia, Australia, European, United States, Canada, Indonesia, Mexico, Chile, Peru, UAE, Malaysia, Middle East, the United Kingdom, EU and more countries and regions.

We also offer turnkey service such as rubber tyred straddle carrier installation, commissioning, maintenance, training and after sale service. In search of a reliable straddle carrier manufacturer and supplier who can cater to your business's needs? Please don't hesitate to contact our Sales Team for more information & quotations.
