40 Ton Straddle Carrier

40 Ton Straddle Carrier for Sale

A heavy load straddle carrier is a specialized vehicle used in container handling operations at sea ports, terminals, quayside, harbour or intermodal facilities. Also known as Straddle Trucks or Shuttles, it is designed to lift and transport containers by straddling them from above, allowing for efficient movement and stacking of containers within the terminal or yard. The model with maximum stacking ability is 4 four container high reach straddle carrier. Container transporter straddle carrier are capable of relatively low speeds (up to 30 km/h or 18.6 mph) with a full container. Straddle carriers can lift and stack two loaded containers.

40 Ton straddle carrier cranes are a cost-effective option for container transport within a sea port terminal. Less yard machinery is required as electric straddle carriers handle container lifts and transportation, unlike truck chassis and Automated Guided Vehicles (AGVs), which require reach stackers, rail-mounted gantry cranes or rubber tyred gantry cranes (RMGs and RTGs) in the container yard for loading and discharging containers.

This sea port straddle carrier features cost-efficiency, less maintenance and infrastructure costs, high work efficiency and simple specialist operator training required for straddle carrier operations.

What's more, YUANDA straddle carrier also find application in different industries, including precast, oil&gas, nuclear, aeronautical, aluminium, marine, building materials, logistics, metals, plastics, steel, timber, warehousing, tunneling and rail industry, renewable green energy industry, and represent the ideal solution for handling of raw materials and finished products.

Call today and speak with one of our knowledgeable, well trained staff members for answers to your product questions, obtain a freight quote or purchase straddle carrier to fit your application.

Rubber Tyred Straddle Carrier Features & Advantages

Rated load capacity/ SWL/ WLL: 40T, 40Ton, 40tn, 40 metric ton.

Span(Width): 6m 8m 10m 12m 14m 15m 16m 18m 20m 22m 24m 25m 26m 28m 30m 32m 35m 36m 38m 40m

Lift height: 6~12m

Heavy load weight: 40 ton

20', 30', 40', 45' container sizes handled

ISO 14829 - Freight containers - straddle carriers for freight container handling

Container spreader, chains, hooks, lifting beams, clamps and other multi-lifting point attachments can be equipped on the container rubber tyre straddle carrier to handle the container, steel coil, precast concrete elements, long concrete beams and bridge girders, pipes, hollow core, walls, panels, pillars, granite and marble blocks, plates, metal structure, rod bars, rebar cages, modular construction components, compressed pressure tanks(LNG LPG CNG), ISO tanks etc.

3 wheel hydrostatic drive straddle carrier

Power supply: Diesel generator / Electric / EV Lithium battery / Lithium iron phosphate battery(LFP)

4 Way Lever Positioning of Wheels, all 4 wheels steering (hydraulic system). The tires of this container gantry crane can rotate 90° and move obliquely at 20° and 45°.

Able to climb slopes of up to 10%

Front & rear independent sideshift for easy twistlock alignment

This straddle carrier allows operators to double stack containers with ease

Container tipping: The straddle carrier can tilt containers at an angle of 75 for efficient and safe off-loading of containers of bulk materials

Can travel fully loaded, small turning radius, stacks in narrow aisles

Telescopic feature outstanding for moving from indoor to outdoor

Light weight, low wheel load pressure

Electric power supply or diesel engine or EV battery powered

Engine emission standard: Euro Stage III IV V

Compact design, telescopic column type, Travels in and out of warehouse’s with ease

Loading and unloading from trailer to ground

Latest Hydrostatic drive technologies, variable motor speeds and integrated power management reduce operating costs and increase eco-efficiency, step-less speed change, smooth movement.

Reduced maintenance thanks to direct drive units, high-quality components

Wide wheel surface and high elastic coating steel, low ground pressure.

Driver's room and wireless remote control for real-time operation.

Weighing device and digital display. Height limiter.

Hydraulic hand lever: reducing breakdown, easy for operation and maintenance.

Custom configurations for each specific application, automation system available on request

Designed for 20ft 40ft 45ft intermodal containers, cube, reefer and flat rack containers

Application of crane: The 40 ton straddle carrier is for shipping container, battery energy storage container system, ISO tank, sea port terminal, prefabricated beams, concrete parts, wind power towers, steel sheet, transformers, cable barrels, lumber, injection mold, stone, prefabricated houses, jumbo manufacturing parts, concrete slab, cylindrical parts, pipelines, general manufacturing, etc.

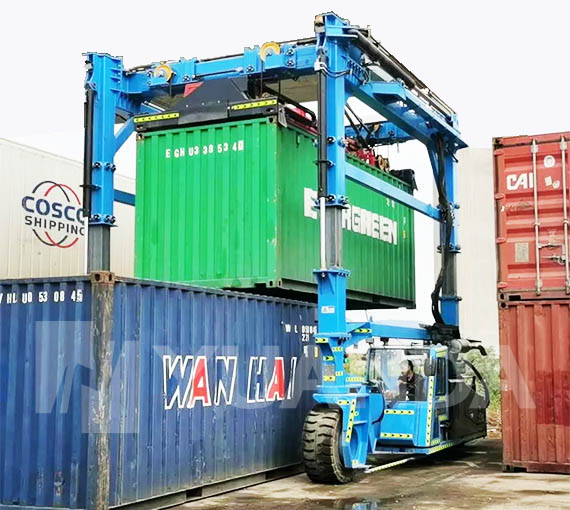

40 Ton 4 Wheels Rubber Tyred Straddle Carrier for Shipping Containers

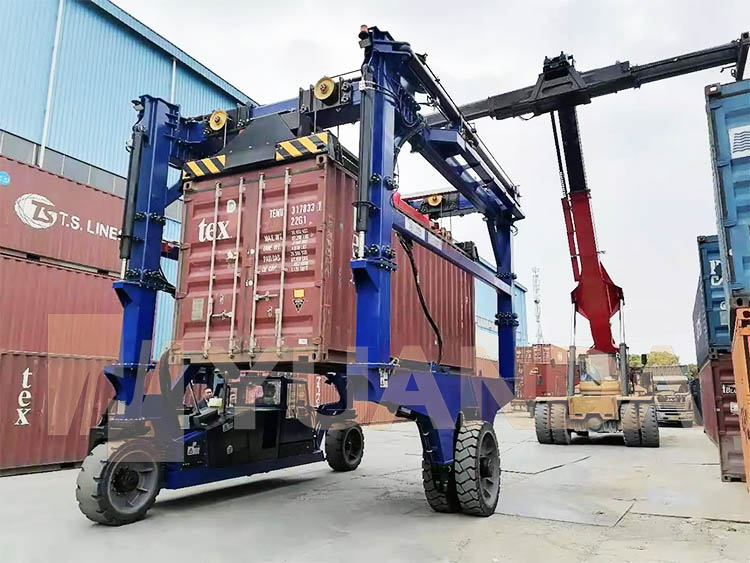

40 Ton Container Lift Straddle Carrier for sale

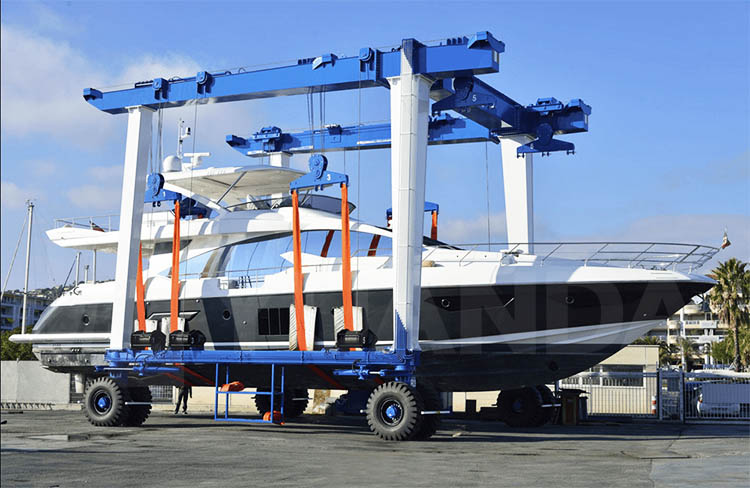

40 Ton Rubber Tyred Marine Yacht Straddle Carrier for Boat Handling

40 Ton Rubber Tired Straddle Carrier for Prefab Modular Concrete Beam

40 Ton Mobile Straddle Carrier Crane for Precast Concrete Construction

40 Ton Sea Port Container Straddle Carrier Crane

40 Ton Mobile Straddle Transporter MG Mobile Gantry Working Together in Tandem Operation

40Ton GP Type Container Handling Straddle Carrier Gantry Crane

Different Types of 40 Ton Straddle Carrier

40 Ton Rubber Tyred Straddle Carrier mainly come in two types: container handling straddle carrier and civil engineering straddle carrier. Shipping container straddle carriers are devices used to pick-and-place ISO standard containers. This heavyweight material handling vehicle uses a vertical lift and container spreader to elevate fully-loaded containers up to 40 feet. Container straddle carrier handler is restricted to container terminals, such as ports and intermodal yards, and they work best for trailers, loading flatbed trucks and railcars. The civil engineering construction straddle carrier is mostly used at prefabrication yard or precast plant, for handling oversized and bulky loads such as precast bridge segment, precast beams, concrete pipes, mold, slabs, prefab container house, steel structures, round bars, pipes, billets, tubes, etc.

In details, with different load to be handled, there are container lift straddle carrier, yacht straddle carrier for lifting boat out of water, bridge straddle carrier, T beam straddle carrier, concrete slab handling straddle carrier. Employed at different working sites, there are construction straddle carrier, marine boat straddle carrier, sea port straddle carrier and so on. For wind power handling in renewable green energy industry, the straddle carrier truck is used to lift wind mill power generators or rotor blades for the Windmill Energy Towers. With different driving mechanism, there are motorized electric straddle carrier, EV battery powered straddle carrier, or diesel engine straddle carrier. 3 wheel straddle carrier and 4 wheel straddle carrier are the most common types. More wheels are available for your specific application. Based on special lifting devices equipped, there are telescopic chain straddle carrier and telescopic toplift straddle carrier. The optional automatic Top Lift spreader can be adjusted to manage every type of ISO container directly from the cab.

Our company have many different types of industrial straddle carrier for your choice. If you want to buy straddle carrier, please contact us for more information and get a quote for straddle carrier price.

40 Ton Straddle Carrier Spare Parts and Straddle Carrier Components, Accessories

Powered by lithium batteries and equipped with an electric motor, this container lifting machine is both eco-friendly and super-efficient. With advanced sensor and monitoring systems, the carrier can easily identify, position, move, transfer, load and unload containers with ease. The 40t container straddle carrier can be customised to meet a variety of customer needs and is designed with safety and flexibility in mind.

Mounted on rubber tires, this container handling equipment is incredibly compact and easy to manoeuvre, making it perfect for use in narrow spaces such as factory workshops and storage yards. The 40 ton container straddle carrier can achieve various steering modes and is equipped with flexible controls, including both cabin and wireless remote control. Finite element and dynamic simulation technology is used to ensure steel structure a long service life. Painting is in accordance with the port standards - After sandblasting treatment, then primer, middle paint and top coating start in sequence. Solid tires are more endurable with lower maintenance cost.

Our company provide both entire engineered straddle carrier and straddle carrier components, accessories as request. We have 40 ton straddle carrier spare parts in stock, such as straddle carrier tire, straddle carrier cab, straddle carrier wheels, hydraulic cylinder, engine, power bank,

We understand how important safety is when it comes to operating heavy machinery like this. That's why this automated straddle carrier comes with multiple protection features, including radar anti-collision, video monitoring and alarm, overvoltage protection, and continuous variable speed. Plus, its anti-sway device ensures that containers remain stable and secure during transportation.

Technical Parameter of 40 Ton Rubber Tyred Straddle Carrier

*Rubber tire container lifting straddle carrier specifications may be subject to change without notice.

40 Ton Straddle Carrier Manufacturer in China

The straddle carrier is used at workshop, factories, depot, sea port, marinas, shipyard, quay side, steel mill, high speed railway, casting yards, storage areas and construction sites such as road, bridge, tunnels, overpasses, building construction engineering and precast concrete segments manufacturing. Being a 40 ton straddle carrier manufacturer and supplier in China, we offer the complete design, fabrication, straddle carrier installation, commissioning, maintenance, training and after sales service. Necessary documents are provided too, such as installation guide and user manual. We have exported the container straddle carrier gantry crane to many countries including: Saudi Arabia, Australia, European, United States, Canada, Indonesia, Mexico, Chile, Peru, UAE, Malaysia, Middle East, the United Kingdom, EU, etc. We provide competitive pricing, fast reply on quotes and in time delivery of materials.

Rubber tire container straddle carrier's design drawings can also be provided by our technical team. Contact us now for more information.
