80 Ton Straddle Carrier

80 Ton Straddle Carrier for Sale

The 80 ton rubber tire container straddle carrier is a mobile gantry crane for distribution, shipping and industries with heavy and oversized loads. It is also called container transporter straddle carrier or straddle crane. This container handling equipment is used at sea port, terminals, concrete casting yards, construction site, etc.

80T straddle carriers are the most versatile and productive container handling equipment due to their operational flexibility and ability to both transfer and lift containers at high speed. It is designed to straddle the container between four tall legs and lift it up. The electric straddle carrier is equipped with lifting beams, chains or spreaders that can lift and move containers from one location to another. They are typically used at container terminals, marinas, quay side, workshop, factories, shipyard, steel mill, high speed railway, storage areas and construction jobsites such as road, bridge, tunnels, overpasses, building construction and precast concrete elements manufacturing. They are available as battery powered, hybrid type, hydrostatically (H) or diesel-electrically (E) driven versions, the latter optionally equipped with the energy saving system as request.

For construction application, the straddle carriers are lifting cranes mounted on tyres often used to replace rail mounted gantry cranes for lifting and handling heavy oversized loads in casting yards, factories, storage areas, workshop, prefabrication plant, warehouse, depot, outdoors and so on.

Nowadays, Battery Energy Storage Systems (BESS) containers are revolutionizing how we store and manage energy from renewable sources such as solar and wind power. Known for their modularity and cost-effectiveness, BESS containers are not just about storing energy; they bring a plethora of functionalities essential for modern energy management. 80 ton rubber tire straddle carrier is the optimal solution for handling the energy storage container in the manufacturing plant.

80 Ton Rubber Tyred Straddle Carrier Features and Advantages

The 80T rubber tyred container straddle carrier is designed to offer a very cost effective solution for haulage, pick and carry, transfer, loading and unloading operations even with relatively low throughput levels. The self propelled gantry crane’s manoeuvrability, light footprint and high customization offer complete independence when moving containers and oversized loads around a site. The container straddle carrier handler can lift fully loaded containers from the ground onto the truck trailer or from trailer to ground.

• Span(Width): 10-36m

• Lift height: 6~12m

• Lifting capacity: 80Ton/TN/Tonne/Metric ton

• Models: MG Gantry, Container handler, Straddle stacker

• Travel speed: 50~130m/min(Empty load/Full load)

• Hoisting capacity under spreader: 80T lifting capacity

• Wheel quantity: 3 4 8 16 wheels

• Power supply: Diesel generator / Electric / Lithium battery / Lithium iron phosphate battery(LFP)

• Control method: Wireless radio remote control, cab control

• Ambient temperature: -20~40℃

• Rated loading capacity/ SWL/ WLL: 80T

• Weight: 80ton

• 20', 30', 40', 45' container sizes handled

• Custom configurations for each specific application

• Supports cube, reefer and flat rack containers. ISO 14829 - Freight containers - straddle carriers for freight container handling

• 3 wheel hydrostatic drive, or all 4 wheels steering (hydraulic system). The tires of this container gantry crane can rotate 90° and move obliquely at 20° and 45°.

• Telescopic feature outstanding for moving from indoor to outdoor

• Can travel fully loaded

• Power: Internal Combustion

• Engine emission standard: Euro Stage III IV V

• Straddle carrier crane compact design, telescopic column type, stacks in narrow aisles

• Latest drive technologies, variable motor speeds and integrated power management reduce operating costs and increase eco-efficiency

• Excellent handling, acceleration, high speed

• Innovative driver assistance features: safer operation, fatigue reduction

• Reduced maintenance thanks to direct drive units, high-quality components

• 2 pieces of automated straddle carriers(Twin) can work together, they can be operated in tandem mode enabling the moving of extremely long loads such as wind turbine blades or precast concrete pipes & beams.

Container spreader, hooks, magnets, telescopic chains, lifting beams, clamps and other special lifting devices can be equipped on the 80 ton straddle carrier to handle the container, steel coil, long concrete beams and bridge girders, pipes, hollow core, walls, panels, prefabricated beam, concrete parts, wind power tower, pillars, granite and marble blocks, plates, metal structure, rod bars, compressed pressure tanks(LNG LPG CNG), ISO tanks etc.

80 Ton Sea Port Container Straddle Carrier Crane for Shipping Containers

80 Ton Rubber Tyred Straddle Carrier for Battery Energy Storage Container System

80 Ton Rubber Tyred Marine Boat Yacht Straddle Carrier

80 Ton Rubber Tired Straddle Carrier Gantry Crane for Prefab Modular Concrete Beam

80 Ton Mobile Straddle Carrier Crane for Precast Concrete Segments

80 Ton MG Mobile Gantry Mobile Straddle Transporter on Tyres

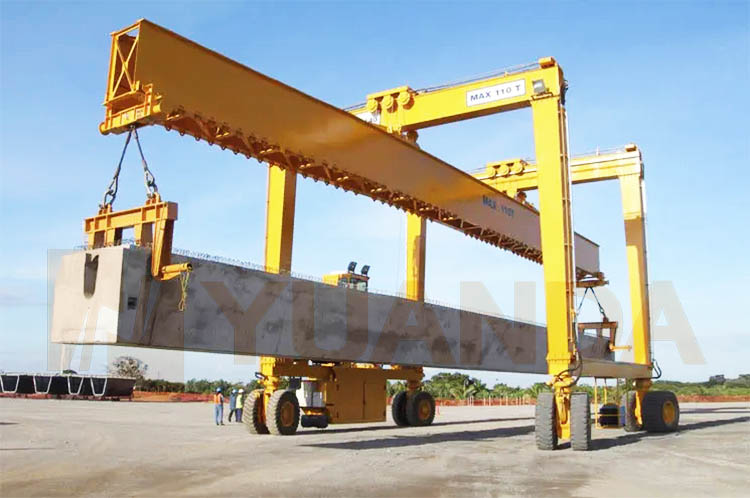

2 units of 80 Ton MG Mobile Gantry Machines Working Together in Tandem Operation for Handling Precast Concrete Beams

Technical Parameter of 80 Ton Rubber Tyred Straddle Carrier

*Rubber tire container lifting straddle carrier specifications may be subject to change without notice. 80 Ton second hand used straddle carrier is also in stock.

Different Types Of 80 Ton Rubber Tyred Container Straddle Carrier

The 3 wheel straddle carrier features manoeuvrability, light footprint and high customization, which offer complete independence when moving containers and oversized loads. This machine mainly come in two types: container handling straddle carrier and civil engineering straddle carrier. Shipping container straddle carriers are mobile crane used to pick and transfer ISO standard containers at ports and intermodal yards, and they work best for trailers, loading flatbed trucks and railcars. The construction engineering straddle carrier is mostly used at construction site and prefabrication yard, for handling oversized and bulky loads such as bridge, precast beams, concrete pipes, slabs, prefabricated houses, steel structures, metal products, aluminum coils, round bars, billets, tubes, etc. It is also called straddle trucks, shuttles or mobile straddle transporters.

In details, working at different jobsites, it can be construction straddle carrier, small marine boat straddle carrier, sea port straddle carrier and so on. Handling different loads, it can be made as container lift straddle carrier, yacht straddle carrier for lifting boat out of water, precast concrete bridge straddle carrier, T beam straddle carrier, concrete slab handling straddle carrier, etc. For wind power handling in wind farm, the straddle carrier truck is used to lift wind mill power generators or rotor blades for the windmill energy towers. With different driving mechanism, there are motorized electric straddle carrier, EV battery powered straddle carrier, diesel engine straddle carrier or hybrid power staddle carrier. Full-electric version powered by lithium-ion battery with guaranteed autonomy based on expected work cycles, producing zero emissions.

Our company have many different types of industrial straddle carrier for your choice. As a 80 ton straddle carrier manufacturer in China, we offer full product package including design, straddle carrier installation, commissioning, maintenance, training and after sale service. The 80 ton straddle carrier spare parts is also in stock for in time delivery, such as driver cabin, wire rope, lift chains, multi-lifting point attachment, straddle carrier tire, straddle carrier cab, straddle carrier wheels, hydraulic cylinder, engine, rechargeable lithium battery, etc. If you want to buy 80 ton straddle carrier, please contact us for more information and get a free quote for straddle carrier price.

Application of 80 Ton Straddle Carrier

80 Ton rubber tire straddle carrier gantry crane is the cost effective solution for handling containers & oversized loads. To be specific, 80 ton straddle carrier is ideal for handling precast concrete bridge segments, shipping container, battery energy storage container system, lumber, transformer, steel sheet, rebar cages, cable barrels, injection mold, stone, prefab container house, jumbo manufacturing parts, cylindrical parts, pipelines, tubes, general manufacturing, etc. YUANDA 4 wheel straddle carrier find application in various industries, including precast, oil&gas, nuclear, aeronautical, aluminium, highway, marine, building materials, logistics, metals, plastics, steel, timber, warehousing, tunneling and rail industry, renewable green energy industry, and represent the ideal solution for handling of raw materials and finished products.
